Engine Compartment Components

Engine Compartment Components

Items
1. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2. X55QA Fuse Holder 1 - Hybrid/EV Battery Pack
3. A28 Hybrid/EV Battery Contactor Assembly A28 Hybrid/EV Battery Contactor Assembly X3A28 Hybrid/EV Battery Contactor Assembly X4A28 Hybrid/EV Battery Contactor Assembly X5A28 Hybrid/EV Battery Contactor Assembly X6

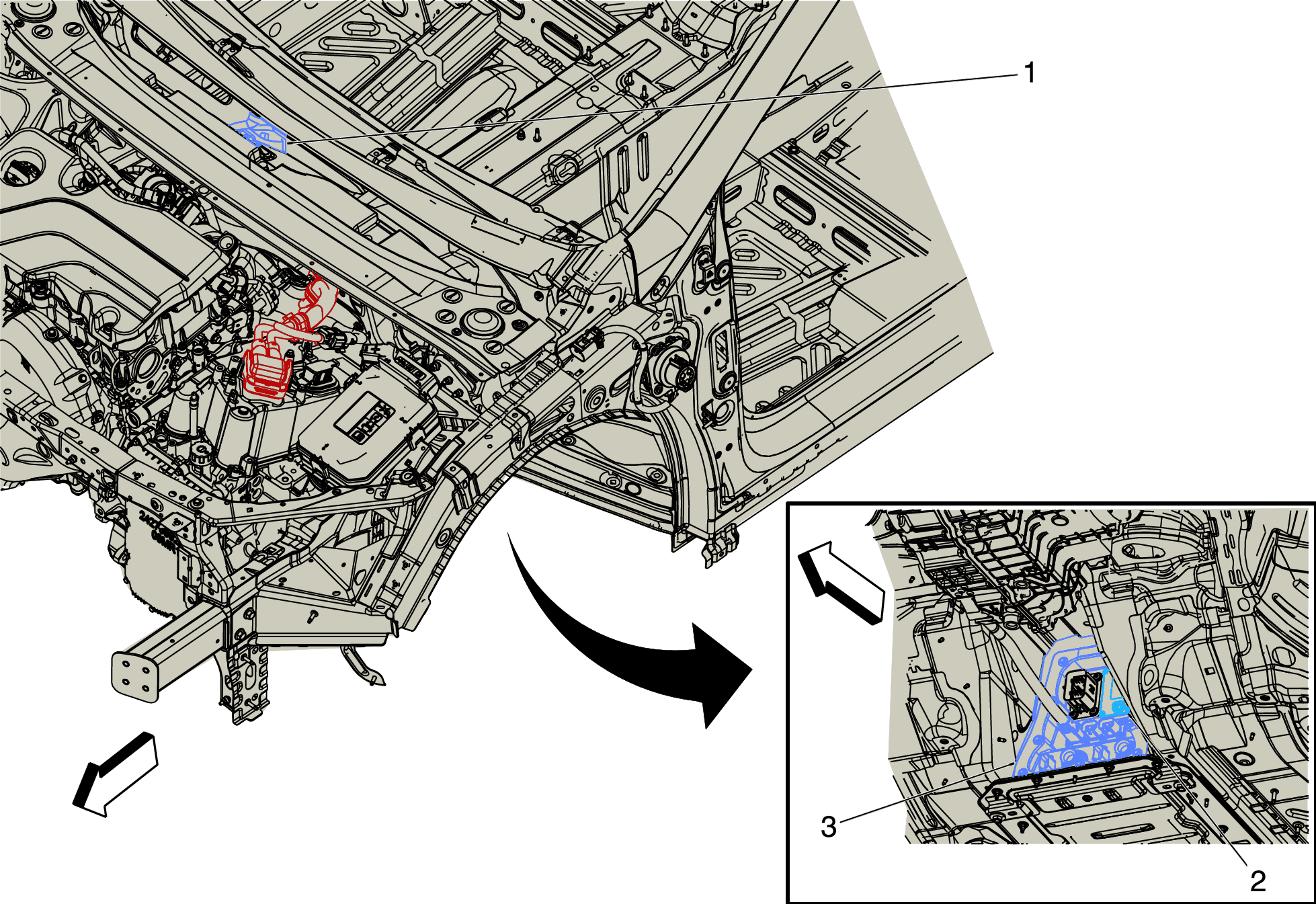

Fig 1: Engine Compartment Components
GM4169544Courtesy of GENERAL MOTORS COMPANY
