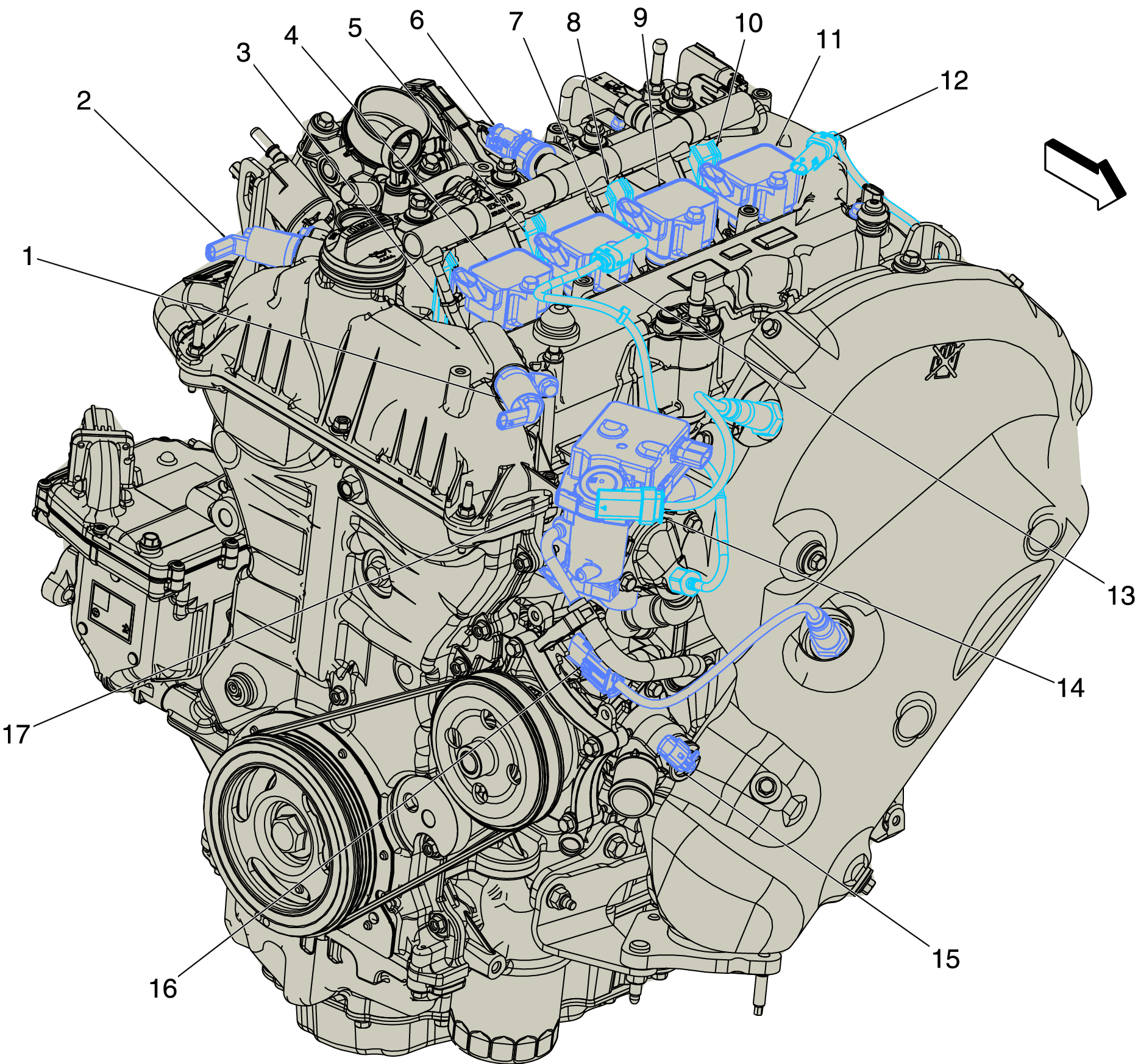

Right Front of Engine Components (2 of 2)
Right Front of Engine Components (2 of 2)
| Items |
|---|
| 1. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 2. Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| 3. Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 4. T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 5. Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 6. B310 Fuel Pressure/Temperature Sensor B310 Fuel Pressure/Temperature Sensor |
| 7. T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 8. Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 9. T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 10. Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 11. T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 12. B130B Exhaust Gas Recirculation Temperature Sensor 2 B130B Exhaust Gas Recirculation Temperature Sensor 2 |
| 13. B130A Exhaust Gas Recirculation Temperature Sensor 1 B130A Exhaust Gas Recirculation Temperature Sensor 1 |
| 14. B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| 15. E41 Engine Coolant Thermostat Heater E41 Engine Coolant Thermostat Heater |
| 16. B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 17. Q14 Exhaust Gas Recirculation Valve Q14 Exhaust Gas Recirculation Valve |
