Camshaft Position Sensor Replacement - Intake

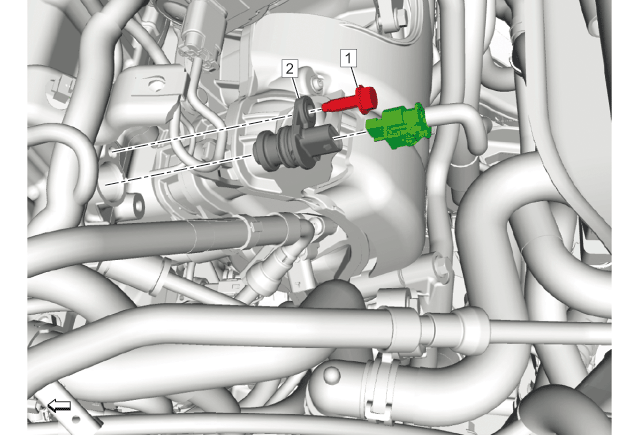

Fig 1: Camshaft Position Sensor - Intake

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Air Cleaner Outlet Duct Replacement
1	Camshaft Position Sensor Bolt CAUTION: Fastener Caution Tighten 10 N.m (89 lb in)
2	Camshaft Position Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Camshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Sensor
Procedure
Disconnect the electrical connector.
