Exhaust Gas Recirculation Pipe Replacement

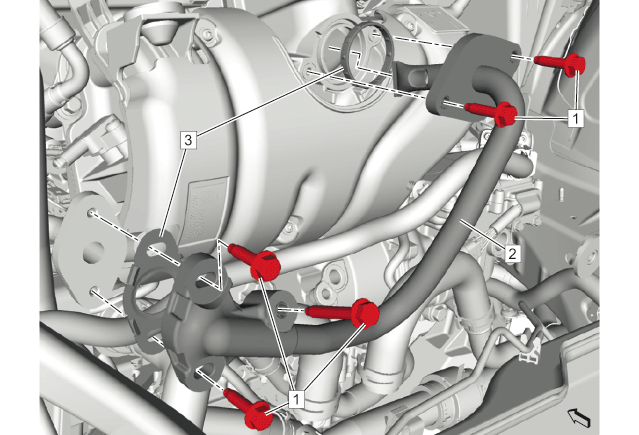

Fig 1: Exhaust Gas Recirculation Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Air Cleaner Outlet Duct Replacement
1	Exhaust Gas Recirculation Pipe Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Exhaust Gas Recirculation Pipe
3	Exhaust Gas Recirculation Pipe Gasket (Qty: 2)
