Rear Seat Belt Retractor Replacement

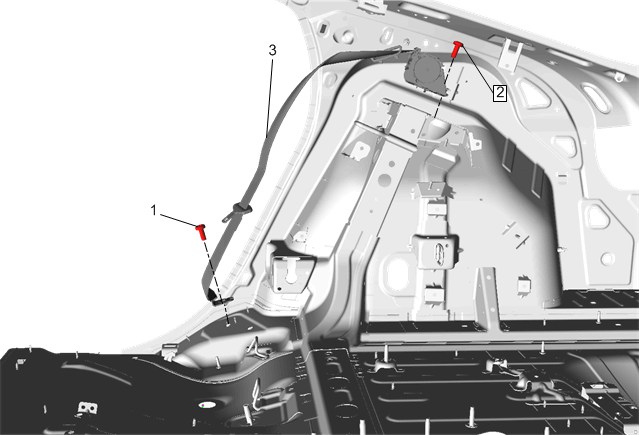

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Quarter Lower Rear Trim Panel Replacement (Left Side)Quarter Lower Rear Trim Panel Replacement (Right Side)
1	Rear Seat Belt Anchor Bolt CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Bolt Tighten  45 N.m (33 lb ft)
3	Rear Seat Belt Retractor
