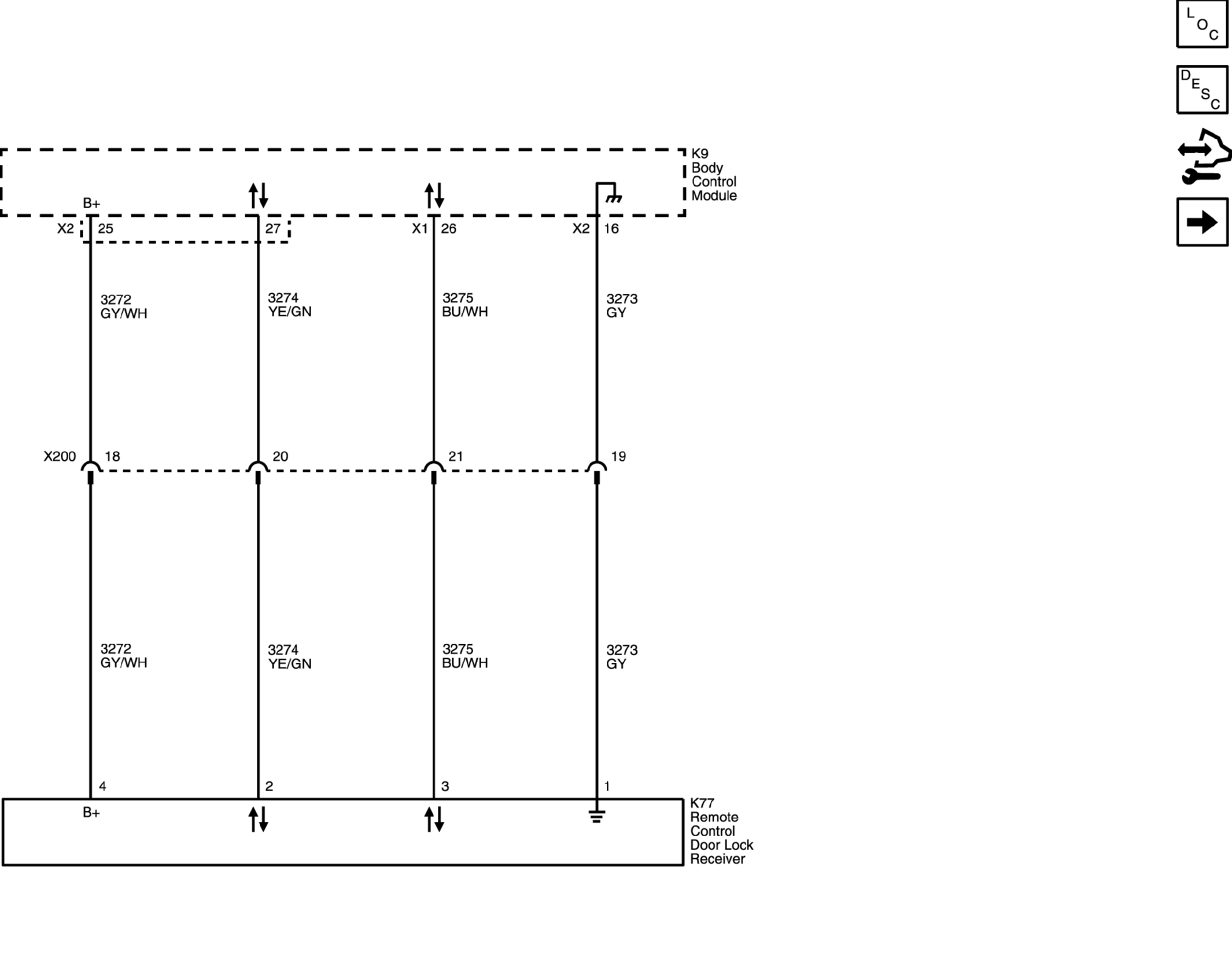

Home › Chevrolet › 2018 › Bolt EV Premier › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Function › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
