Installation Procedure

  1. Rear Window - Install - Adhesive Installation of Rear Windows
  2. Connect the rear window grid electrical connectors.

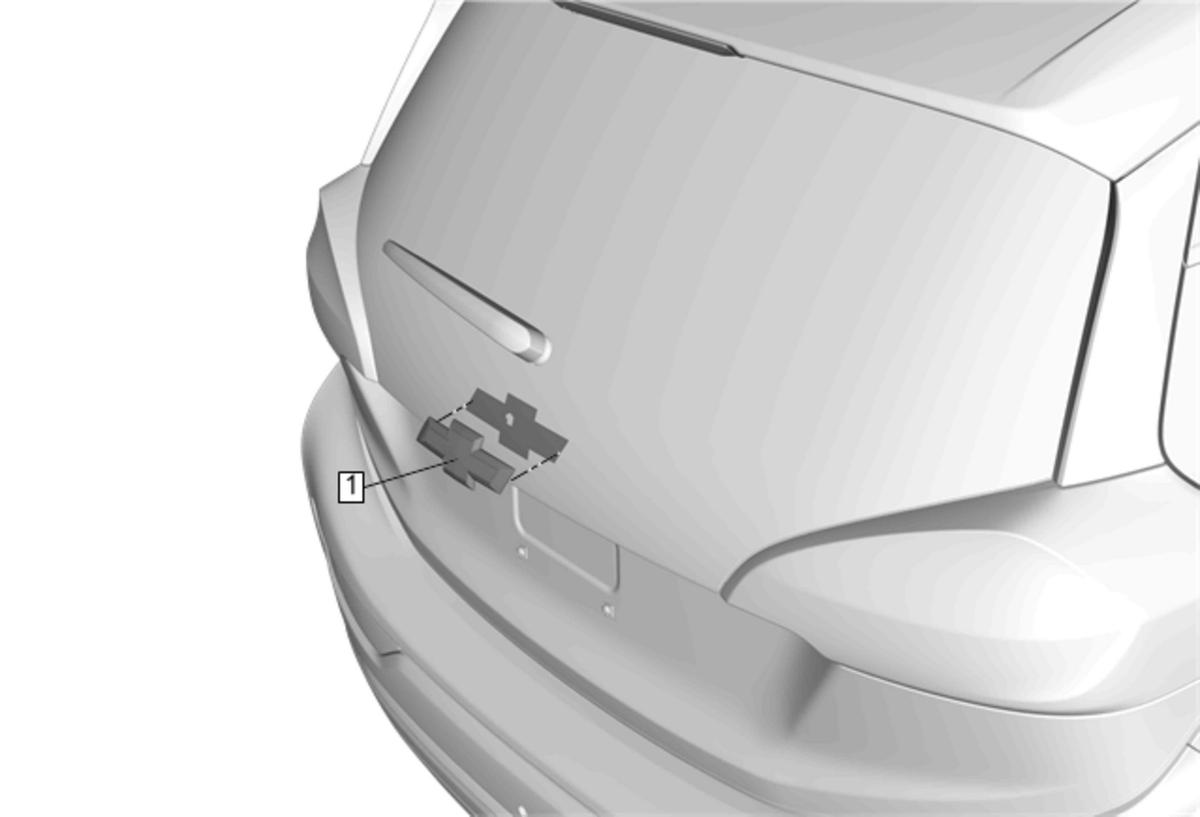

  3. GM4550679

    Liftgate Emblem/Nameplate (1) - Install -

    Liftgate Emblem/Nameplate Replacement (Emblem)Liftgate Emblem/Nameplate Replacement (Nameplate)

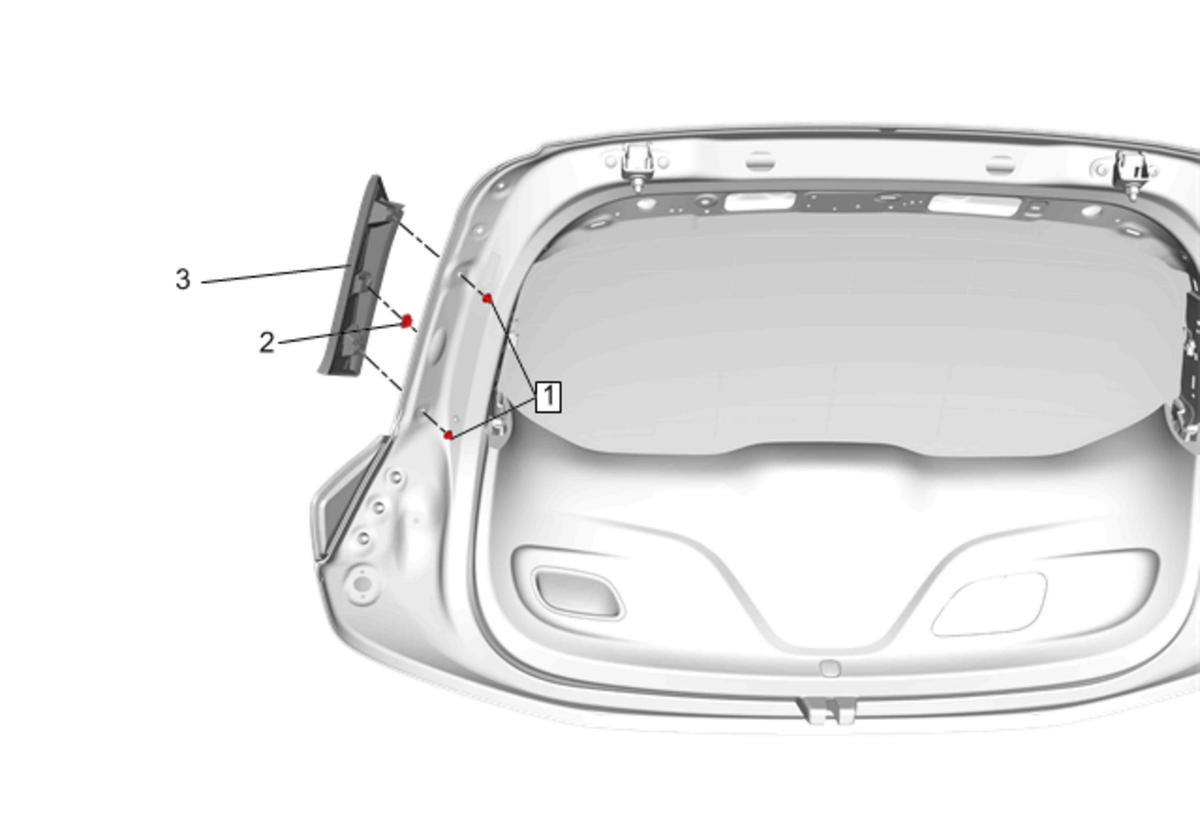

  4. GM4551495

    Body Side Upper Rear Applique (3) - Install - Body Side Upper Rear Applique Replacement

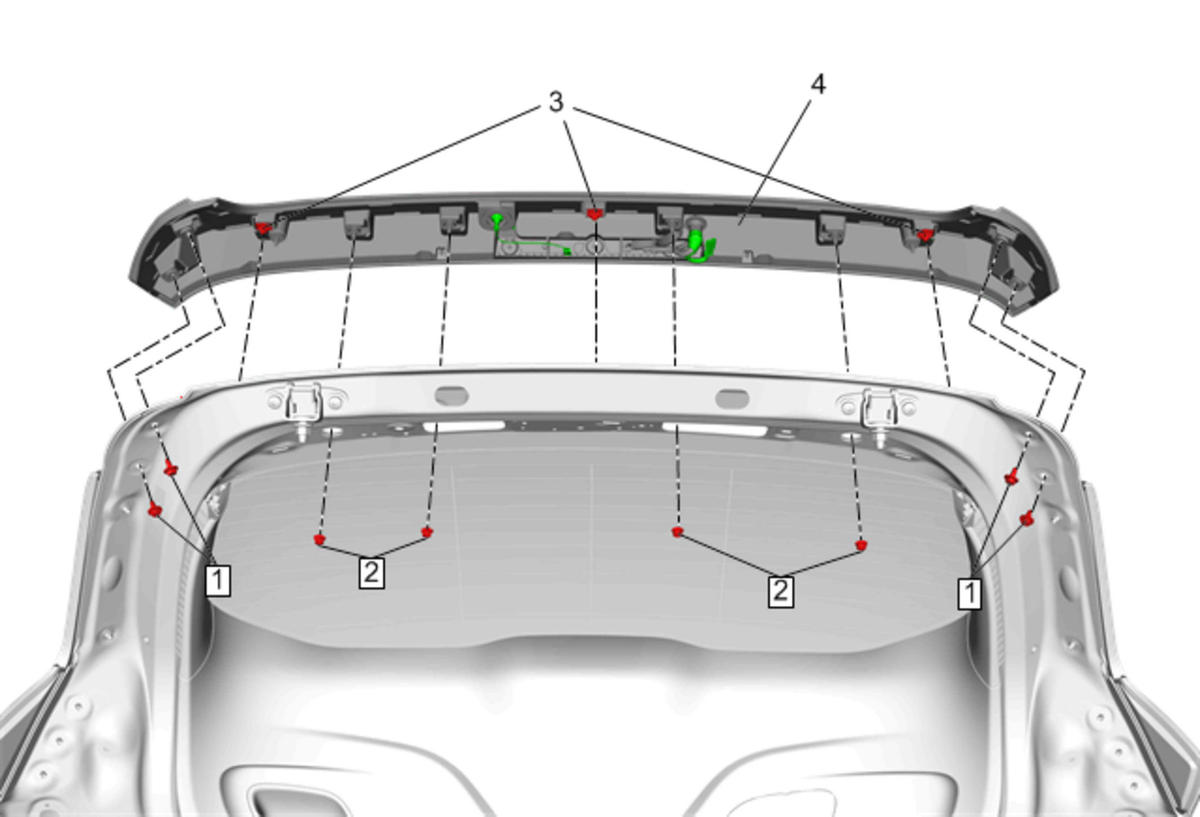

  5. GM4551499

    Rear End Spoiler - Install - Rear End Spoiler Replacement

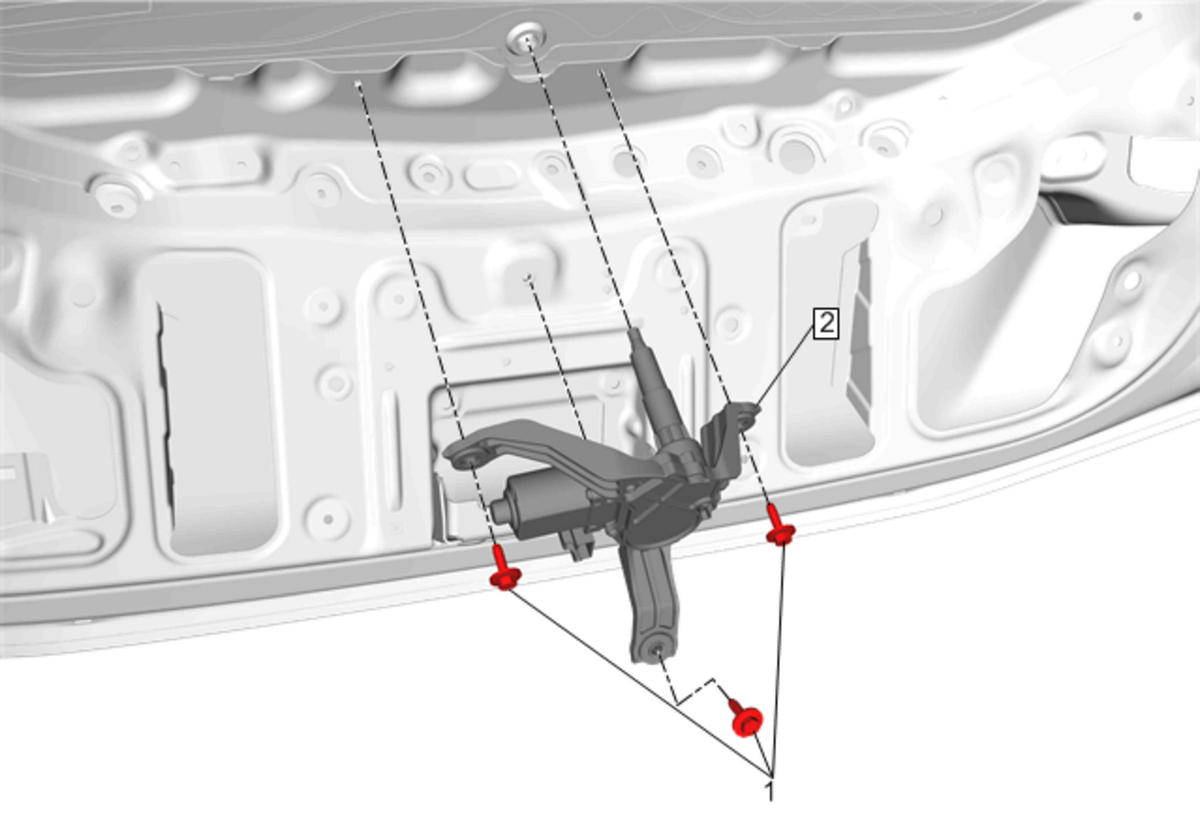

  6. GM4534847

    Rear Window Wiper Motor - Install - Rear Window Wiper Motor Replacement

  7. Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
  8. Rear compartment lid - Close
  9. Double layer of masking tape around the perimeter of the painted surfaces and the interior trim - Remove
