Installation Procedure

  1. Windshield - Install - Adhesive Installation of Windshields
  2. GM4534922

    Multifunction Relay Module Bracket (1) - Install - Multifunction Relay Module Bracket Replacement (Without Front View Camera)Multifunction Relay Module Bracket Replacement (With Front View Camera)

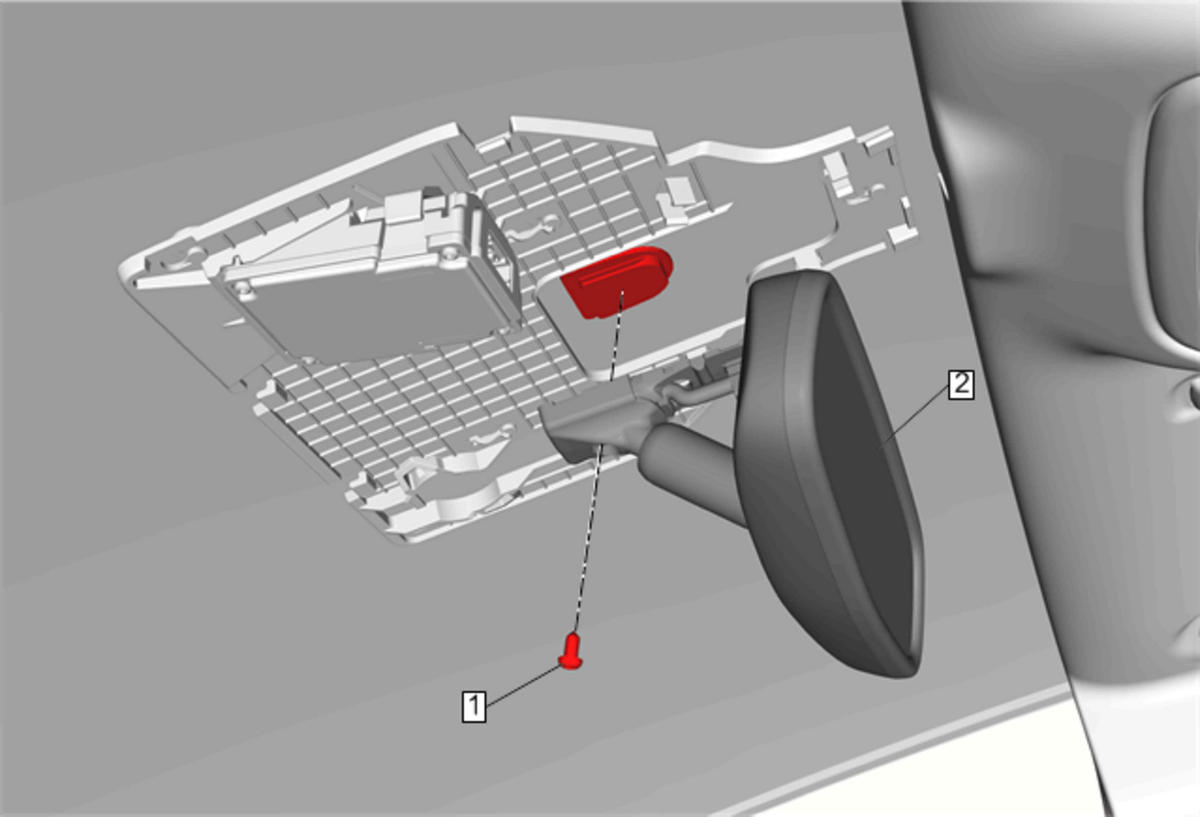

  3. GM4533894

    Inside Rearview Mirror (2) - Install - Inside Rearview Mirror Replacement

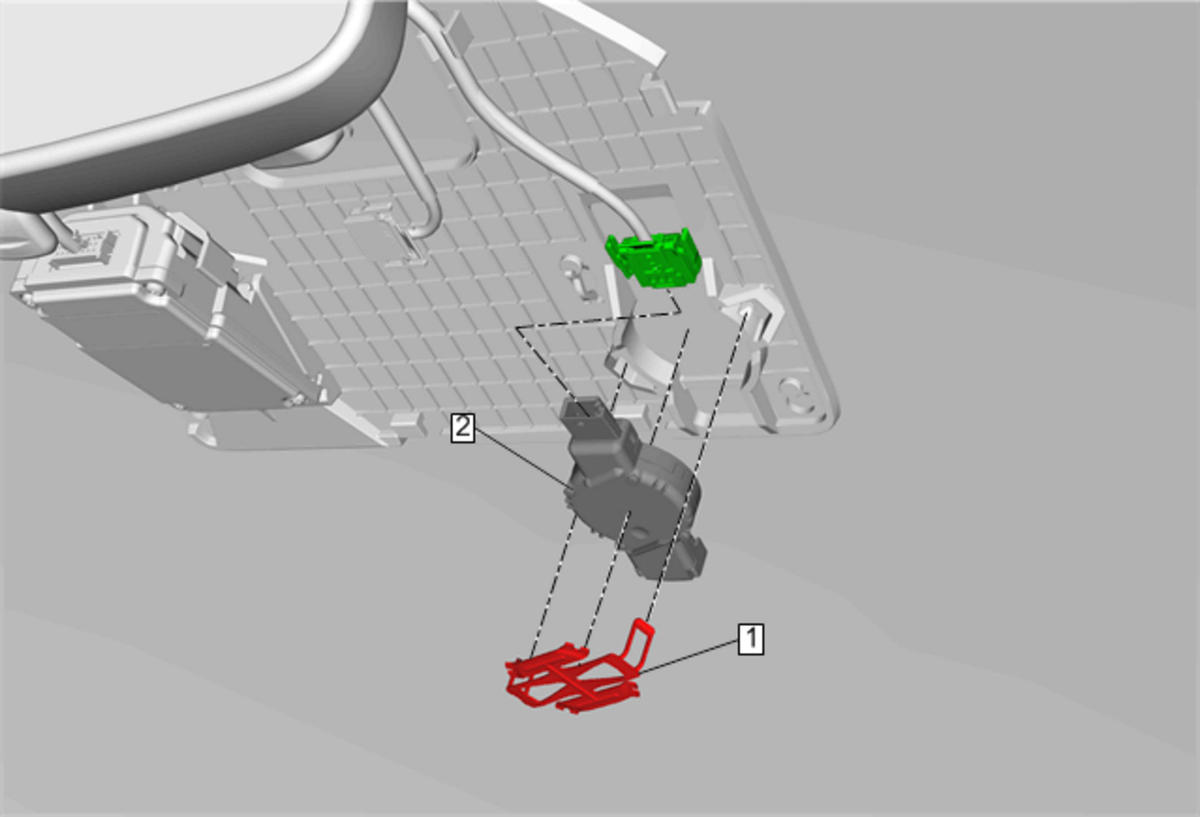

  4. GM4534875

    { If equipped }Inside Air Moisture and Windshield Temperature Sensor (2) - Remove - Inside Air Moisture and Windshield Temperature Sensor Replacement

  5. GM4534915

    { If equipped }Front View Camera (1) - Install - Front View Camera Replacement

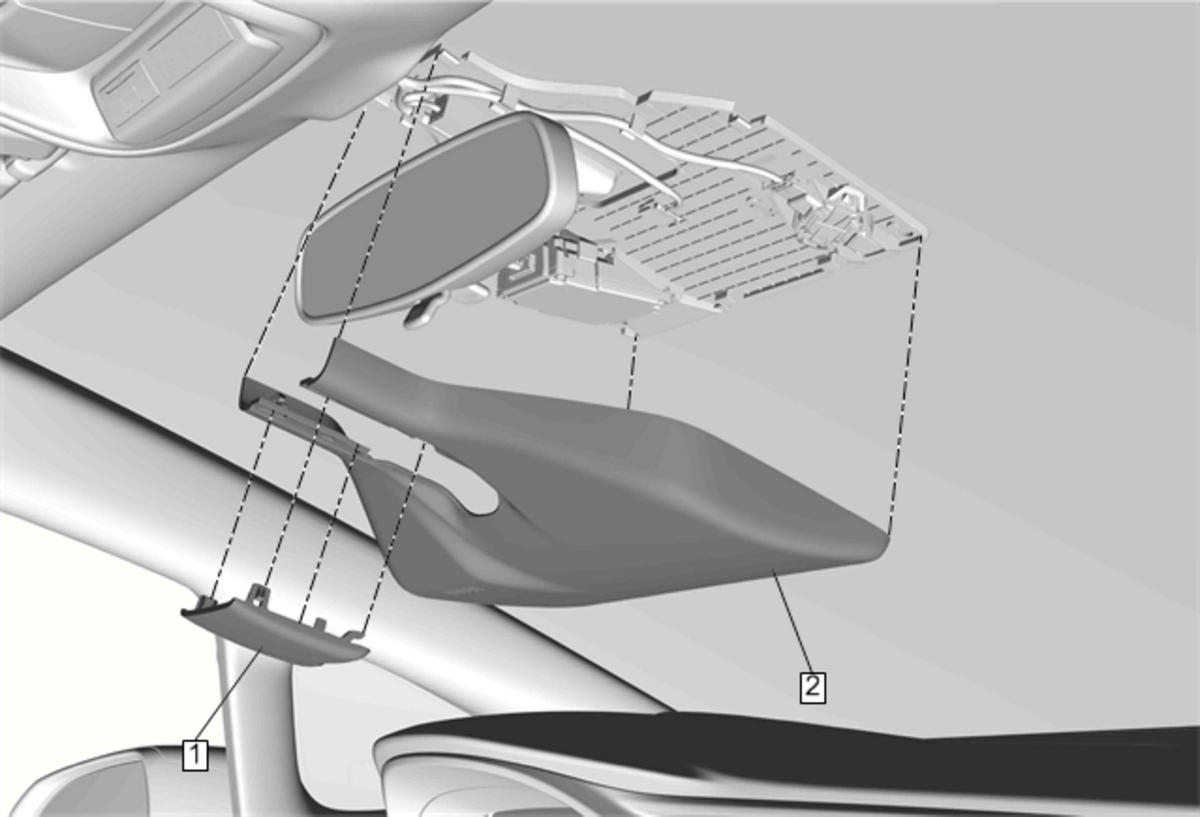

  6. GM4534877

    Windshield Multifunction Sensor Mount Bracket Cover (2) - Install - Windshield Multifunction Sensor Mount Bracket Cover Replacement (with Front View Camera)Windshield Multifunction Sensor Mount Bracket Cover Replacement (without Front View Camera)

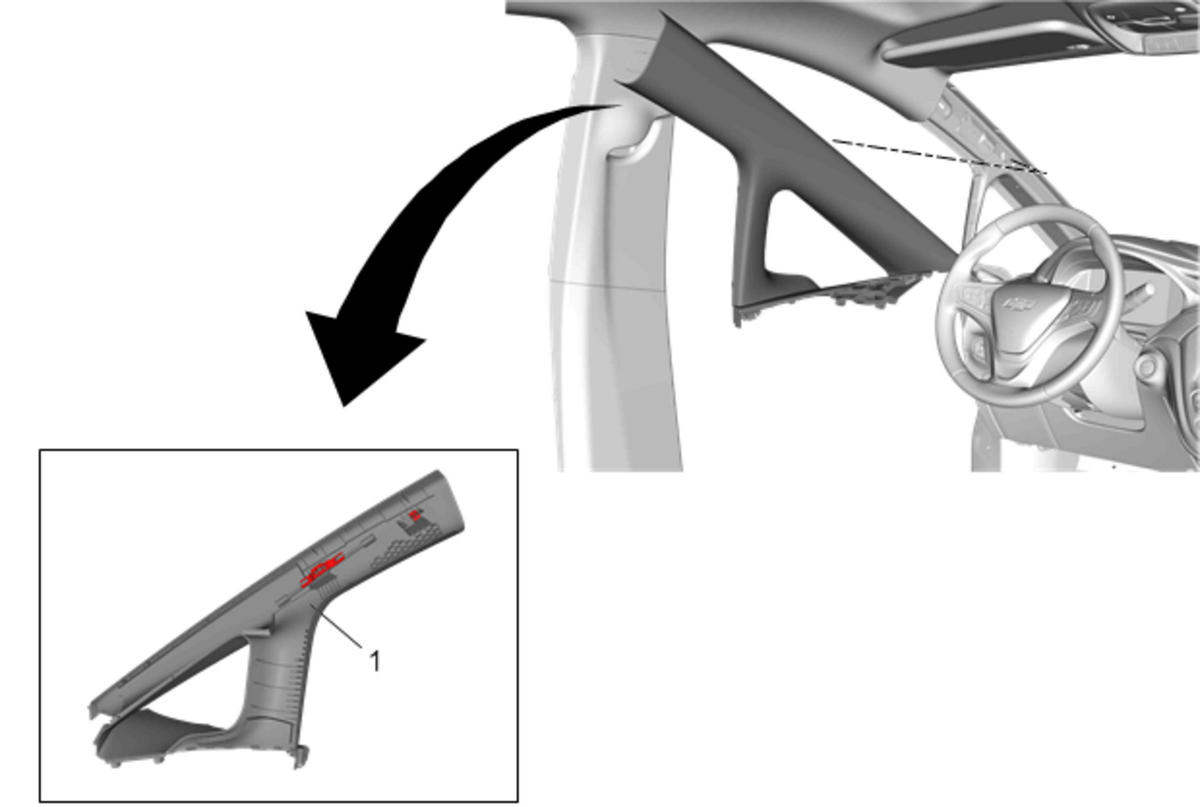

  7. GM4542621

    Windshield Garnish Molding (1) - Install - Windshield Garnish Molding Replacement

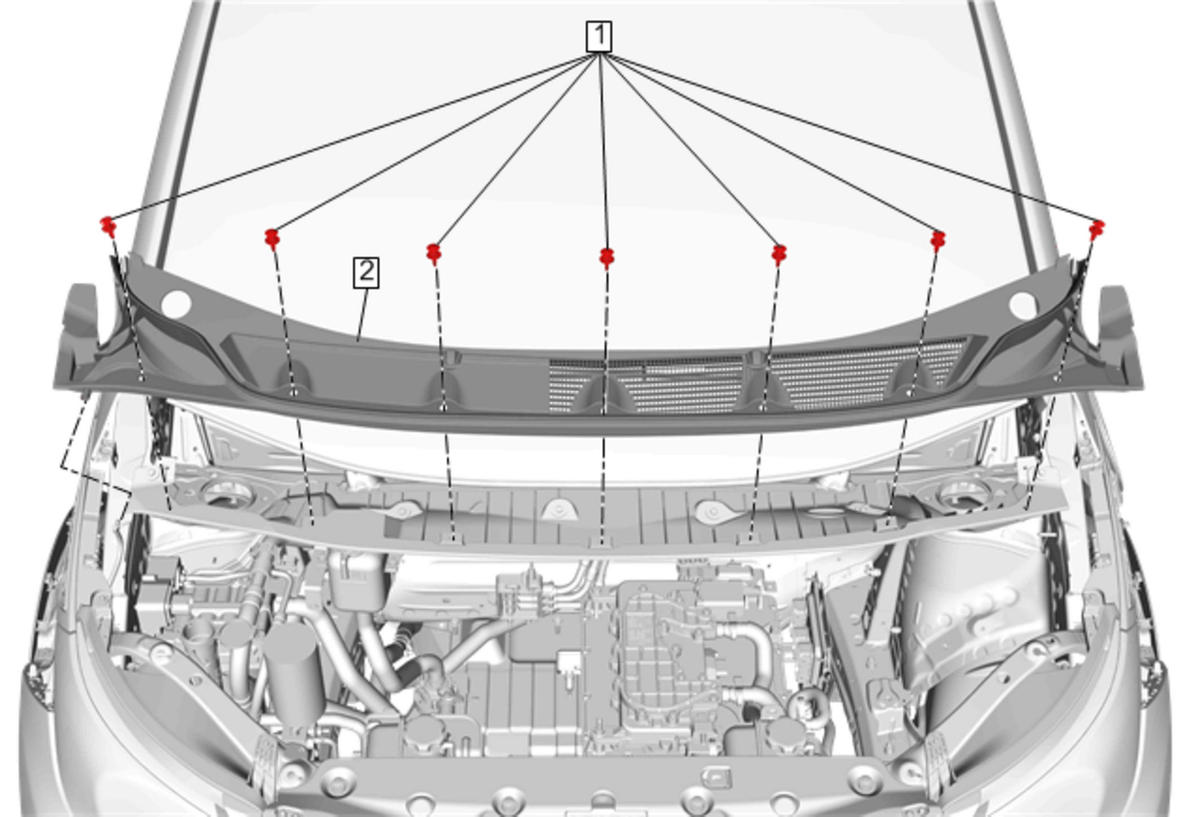

  8. GM4534839

    Air Inlet Grille Panel (2) - Install - Air Inlet Grille Panel Replacement .

  9. Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
  10. Close the hood.
  11. Remove the double layer of masking tape around the perimeter of the painted surfaces.
