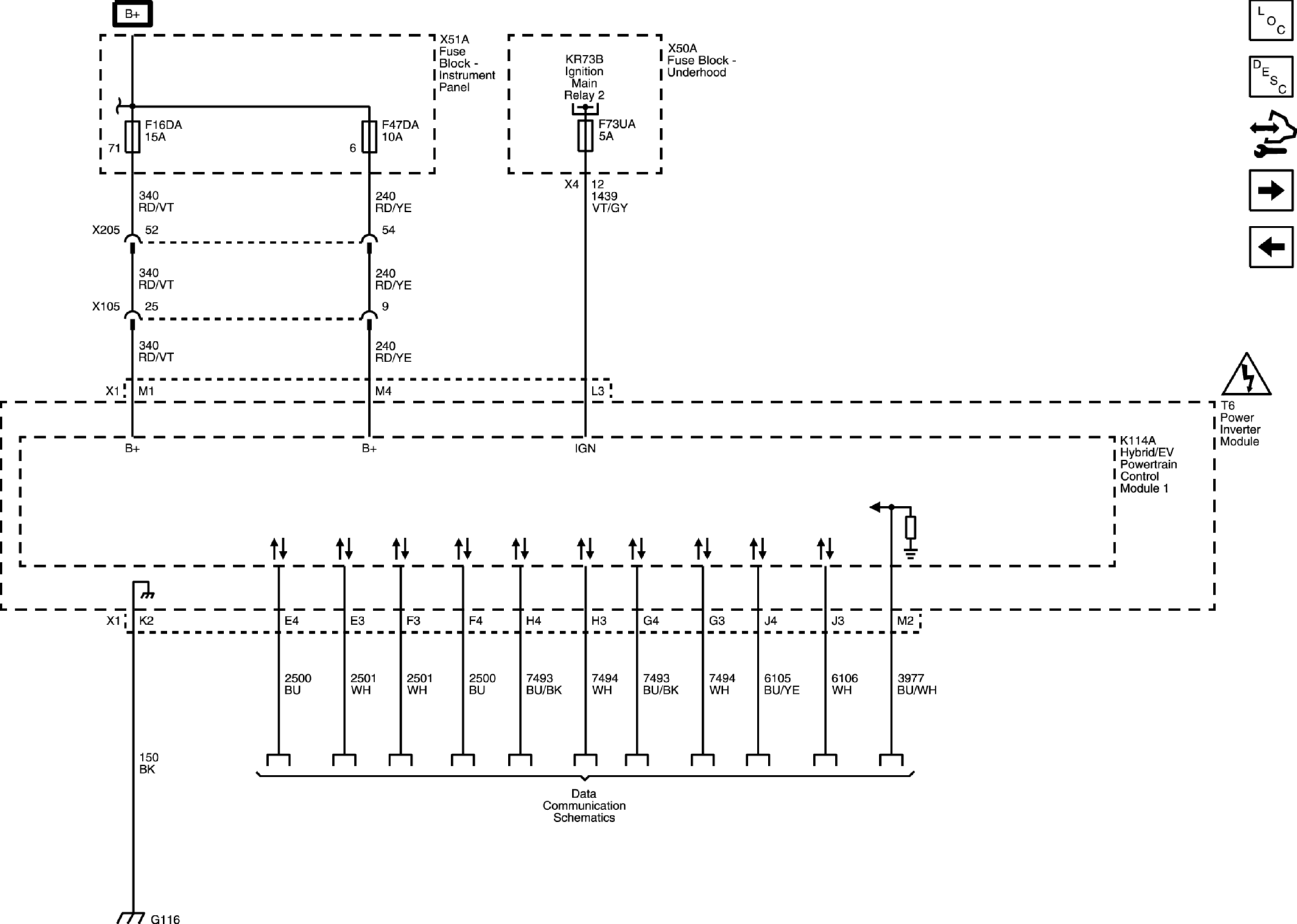

Hybrid/EV Powertrain Control Module 1/Power Inverter Module Power, Ground, and Data Communication
Hybrid/EV Powertrain Control Module 1/Power Inverter Module Power, Ground, and Data Communication
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
