Front Side Door Window Channel Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY

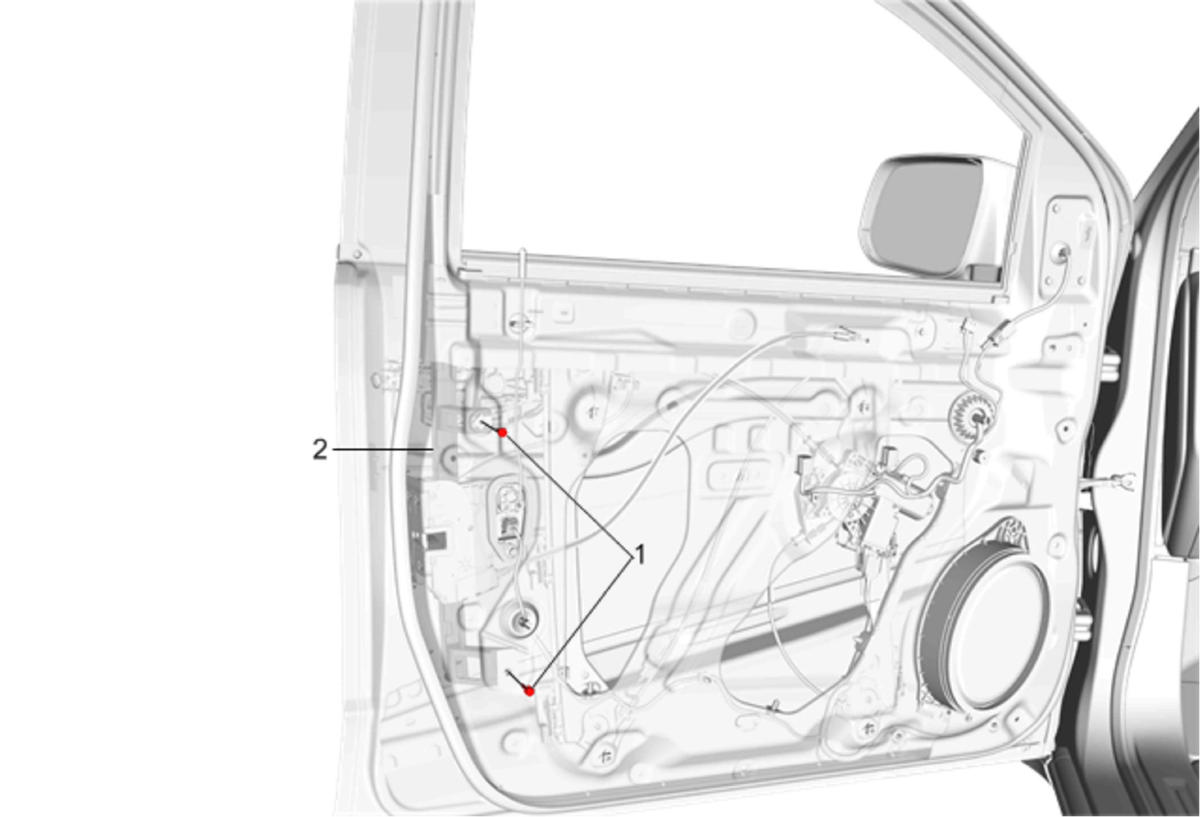

Callout	Component Name
Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement . Remove the front side door water deflector.
1	Front Side Door Window Channel Retainer Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Channel Retainer NOTE: Inspect the window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Front Side Door Window Channel Retainer Fastener (Qty: 2)

CAUTION:

Tighten
11 N.m (97 lb in)

Front Side Door Window Channel Retainer

NOTE:

Inspect the window for proper operation before installing the door trim.
