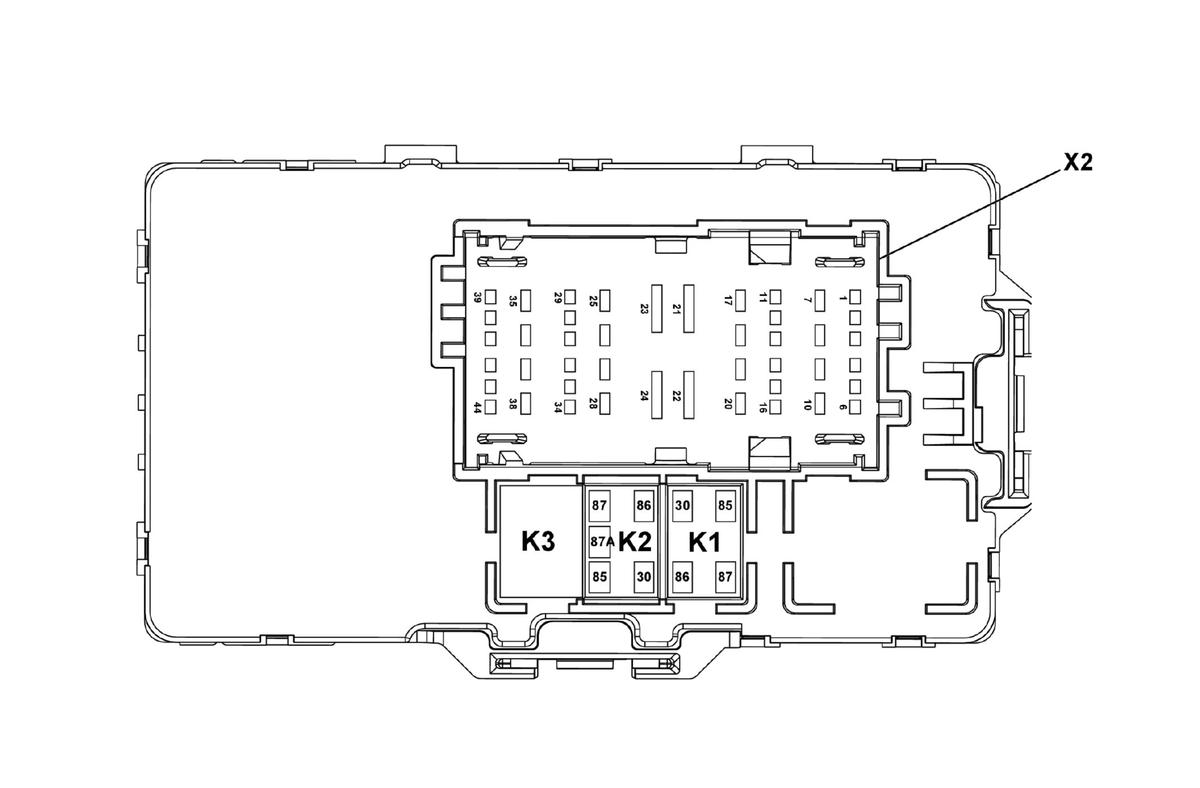

X51A Fuse Block - Instrument Panel Bottom View Relays

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Relays
K1	K1	KR76 Retained Accessory Power Relay	-	F35DA F44DA
K2	K2	KR73 Ignition Main Relay	-	F24DA F28DA F29DA
K3	K3	-	-	Not Used
