High Mount Stop Lamp Replacement
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

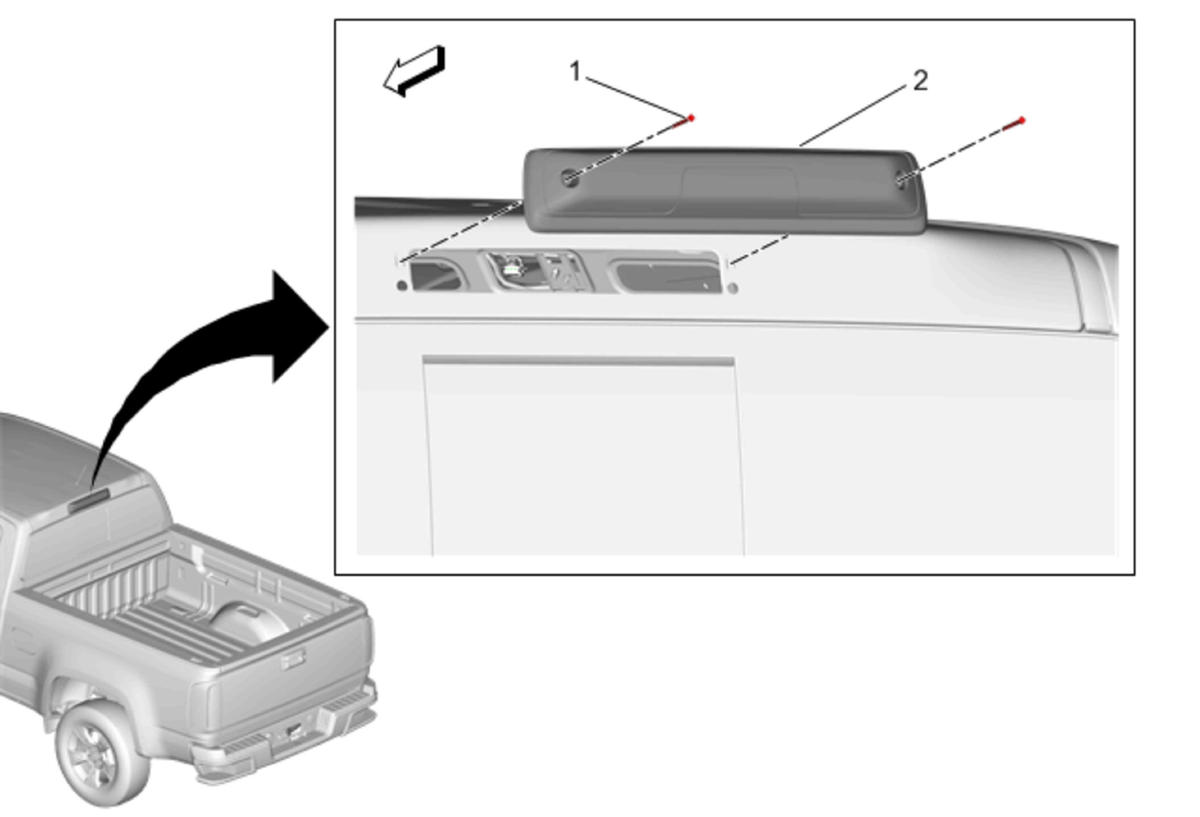

| Callout | Component Name |
|---|---|
| 1 | High Mount Stop Lamp Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | High Mount Stop Lamp Procedure Pull high mount stop lamp from vehicle and disconnect the electrical connector. |
