Image Display Camera Schematics
›

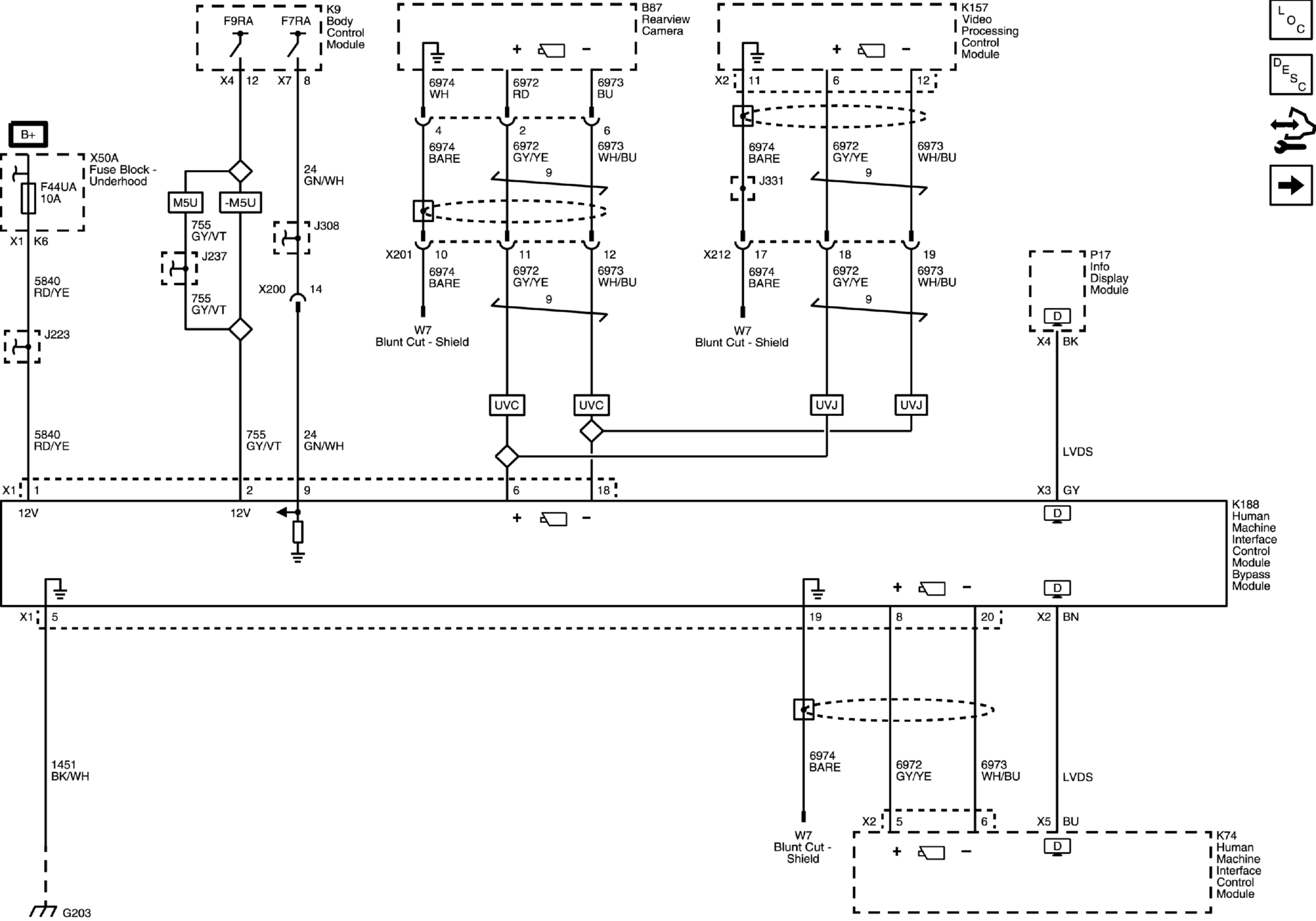

HMI Control Module Bypass Module (UVC/UVJ-EXP)
HMI Control Module Bypass Module (UVC/UVJ-EXP)
