Home › Chevrolet › 2018 › Corvette Z06, 2D Convertible, Automatic Trans › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic and Routing Diagrams › Remote Function Schematics › Keyless Entry - Keyless Entry Control Module

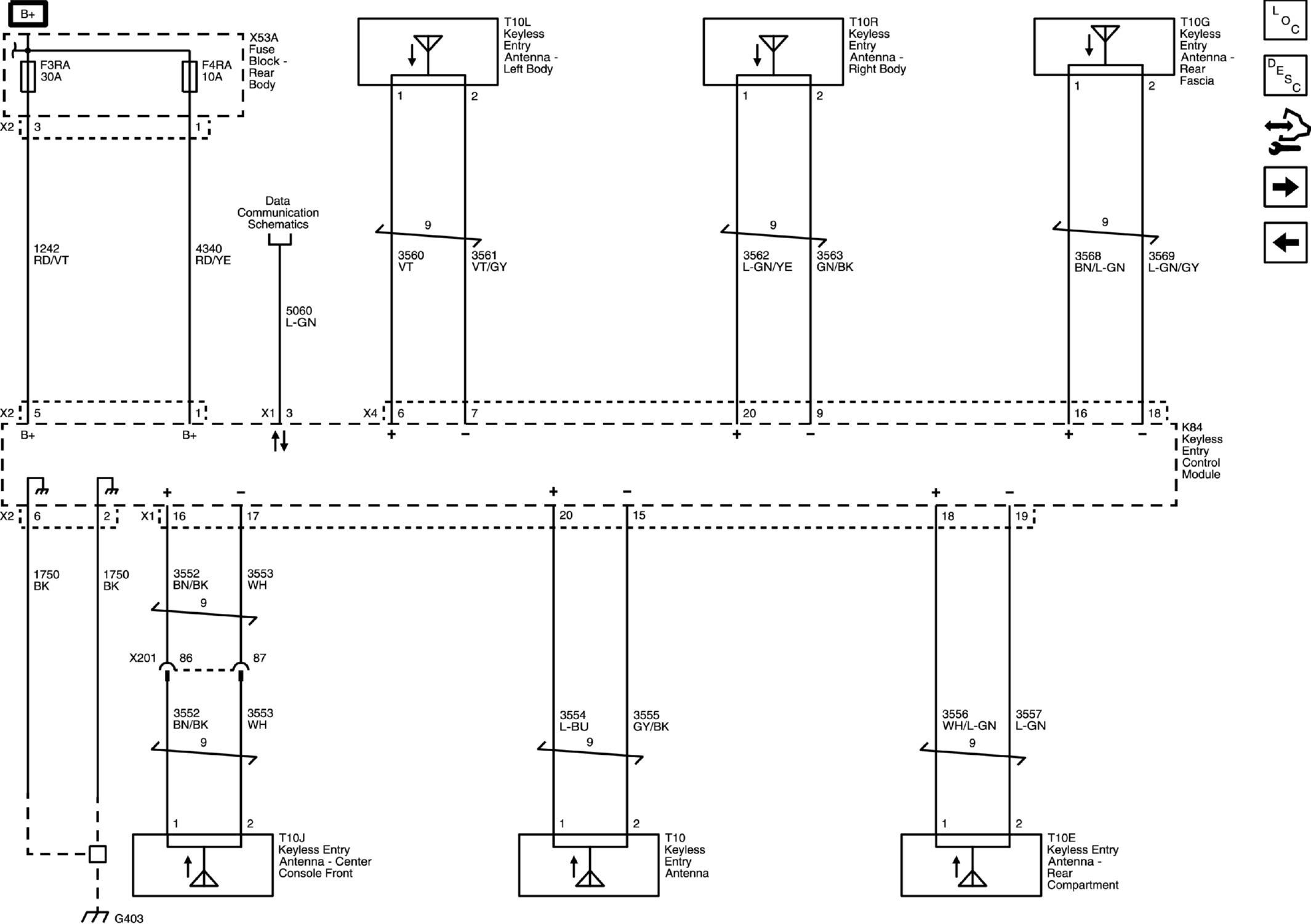

Keyless Entry - Keyless Entry Control Module

GM4650626
