Theft Deterrent Module Replacement (Ignition Lock)

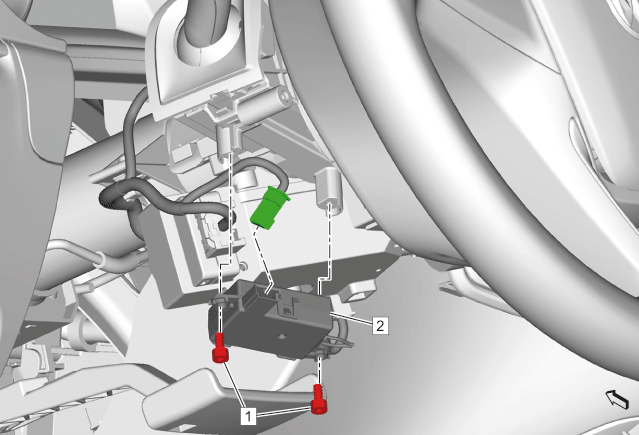

Callout	Component Name
Preliminary Procedures Battery Negative Cable Disconnection and Connection Steering Column Lower Trim Cover Replacement
1	Theft Deterrent Module Bolt [2x] CAUTION: Fastener Caution Tighten 1.5 N.m (13.3 lb in)
2	Theft Deterrent Module Procedure When the replacement is completed, use a scan tool to perform the appropriate reset functions. Control Module References

Callout

Component Name

Preliminary Procedures

Battery Negative Cable Disconnection and Connection
Steering Column Lower Trim Cover Replacement

Theft Deterrent Module Bolt [2x]

CAUTION:

Fastener Caution

Tighten
1.5 N.m (13.3 lb in)

Theft Deterrent Module
Procedure
When the replacement is completed, use a scan tool to perform the appropriate reset functions. Control Module References
