Front Side Door Window Regulator Motor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Side Door Window Regulator Replacement |
|

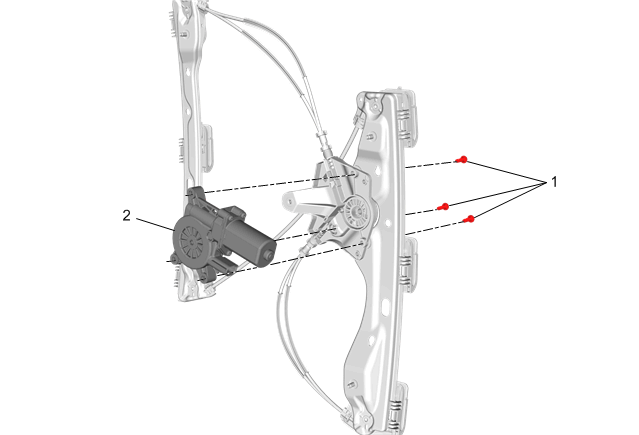

| 1 | Front Side Door Window Regulator Motor Bolt [3x]
CAUTION:
Refer to:Fastener Caution . Tighten 5 N.m (44 lb in) |
| 2 | Front Side Door Window Regulator Motor Procedure Perform the necessary programming and setup procedure: Window Motor Programming - Express Function
NOTE:
Inspect the door window for proper operation before install the door trim panel. |
