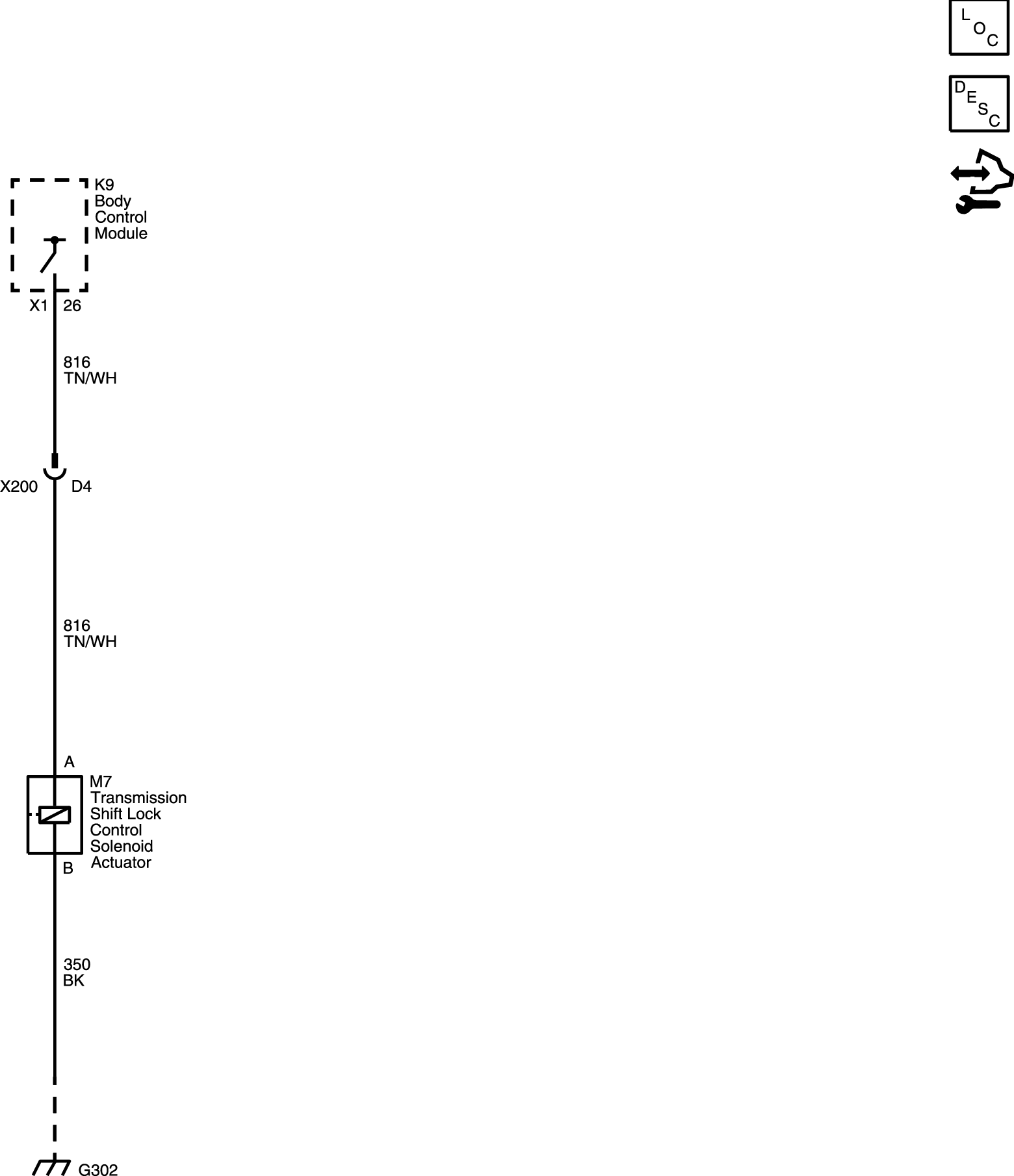

Home › Chevrolet › 2018 › Express 2500 LS, 6.0L Eng VIN G › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
