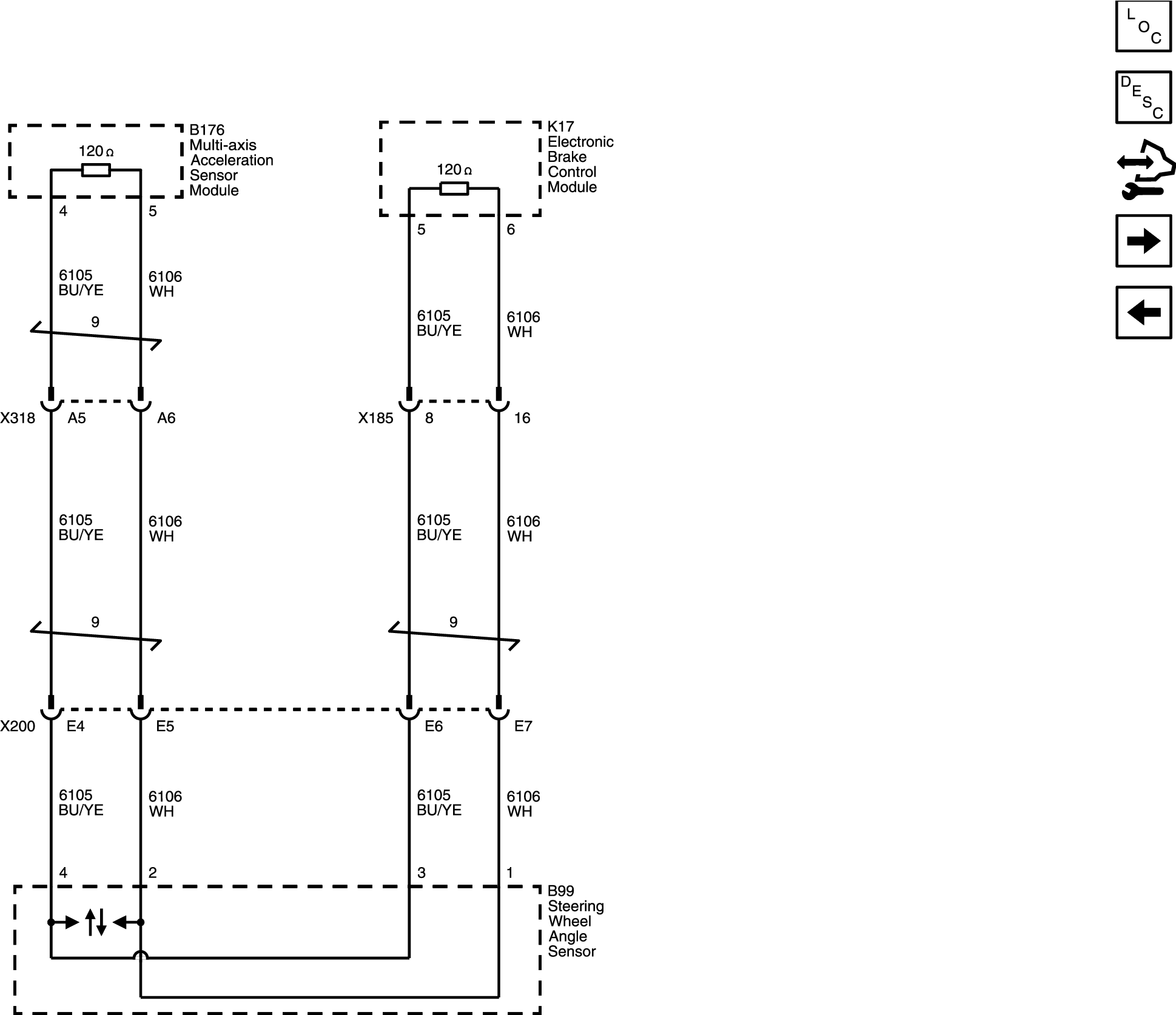

Home › Chevrolet › 2018 › Express 3500 Base, Van Cargo Extended, 2.8L Eng VIN 1 › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic and Routing Diagrams › Data Communication Schematics › Chassis High Speed GMLAN
