Image Display Camera Wiring Schematics
›

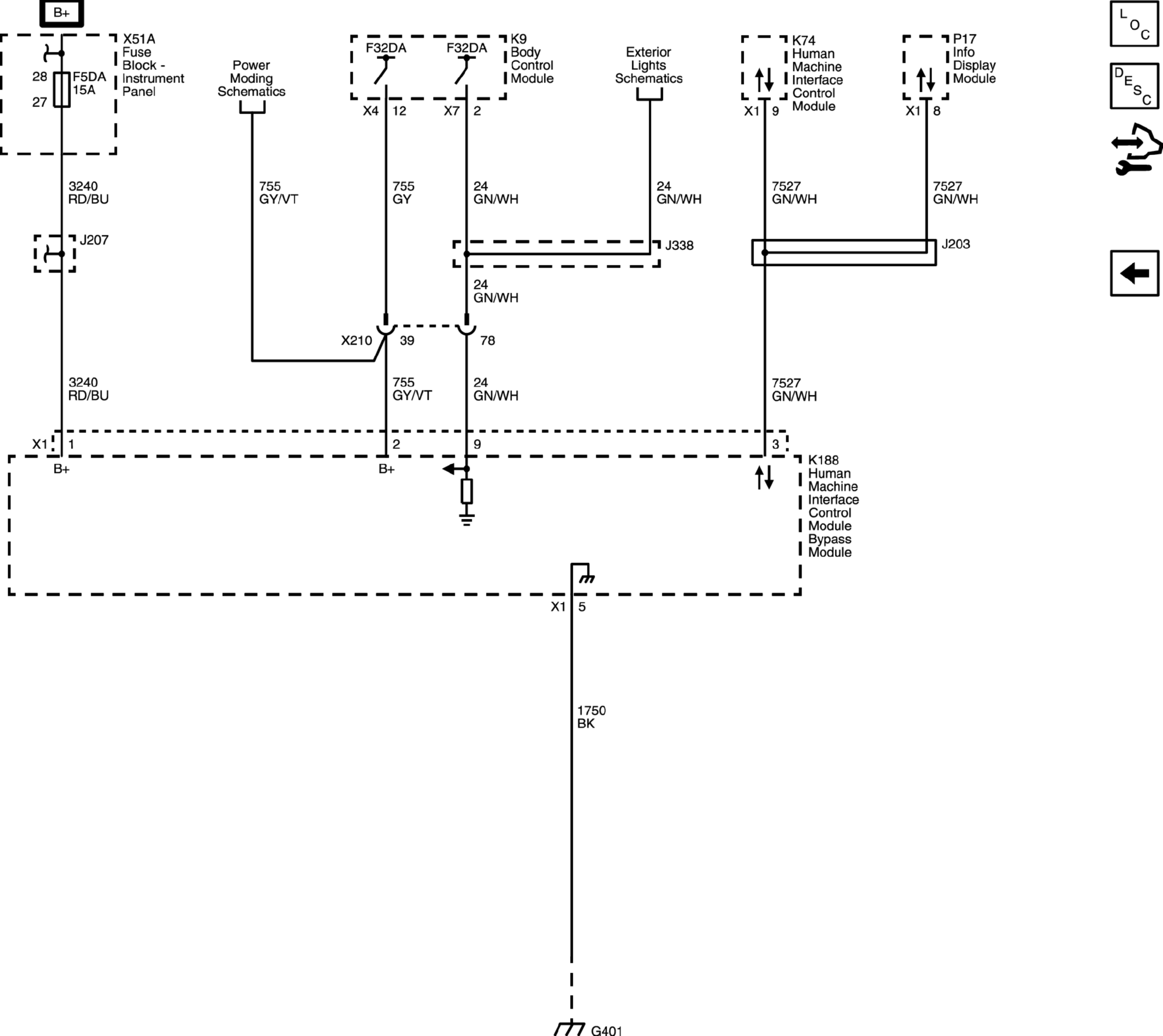

Power, Ground, Serial Data, Human Machine Interface Control Module Bypass Module
Power, Ground, Serial Data, Human Machine Interface Control Module Bypass Module
