FixVault
Home
›
Chevrolet
›
2018
›
Malibu LS
›
Repair and Diagnosis (Single Page)
›
Accessories & Equipment
›
Entertainment Systems
›
Image Display Camera System
›
Wiring Schematics And Routing Diagrams
›

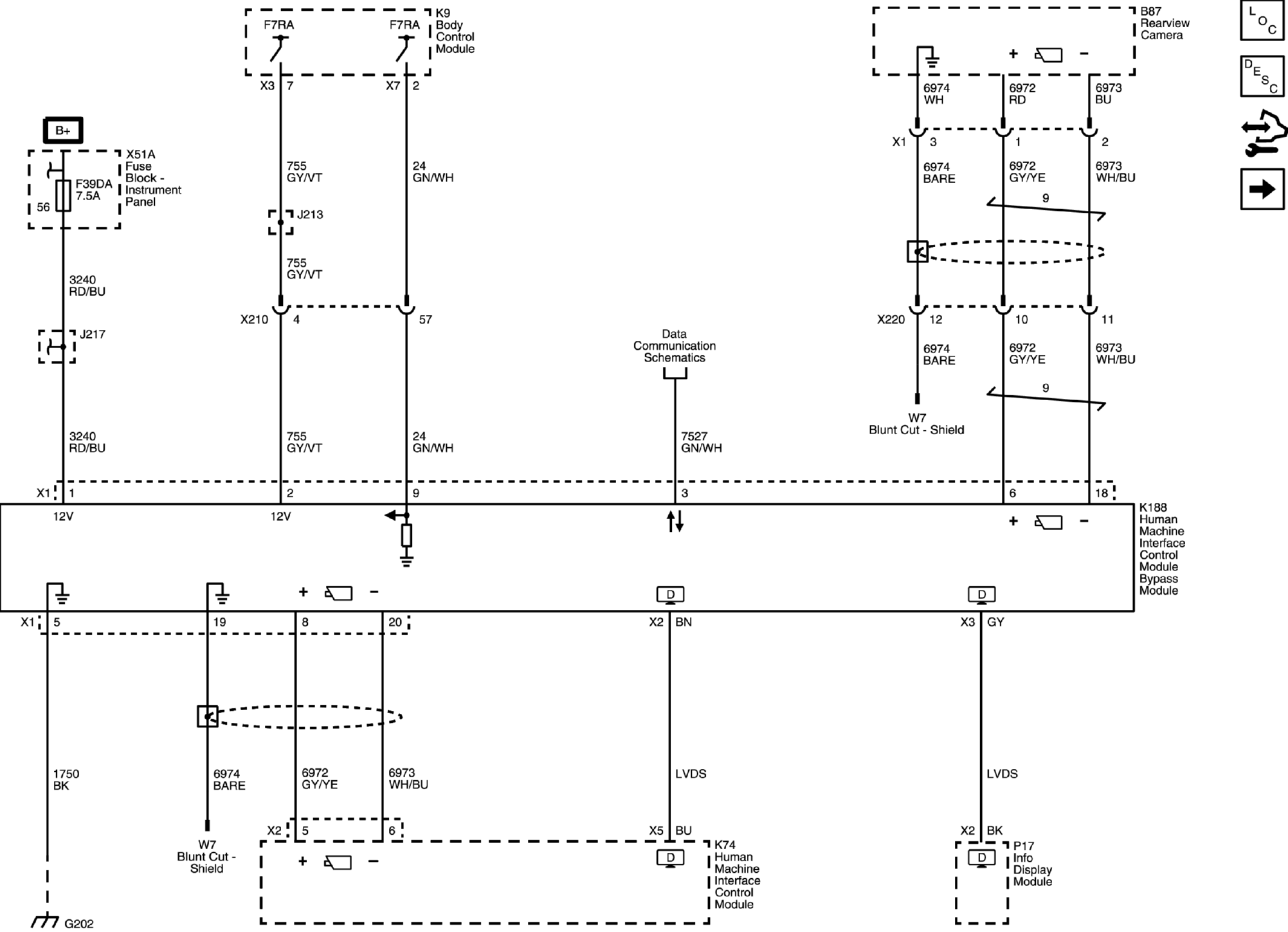

Image Display Camera Wiring Schematics
›
HMI Control Module Bypass Module
HMI Control Module Bypass Module
