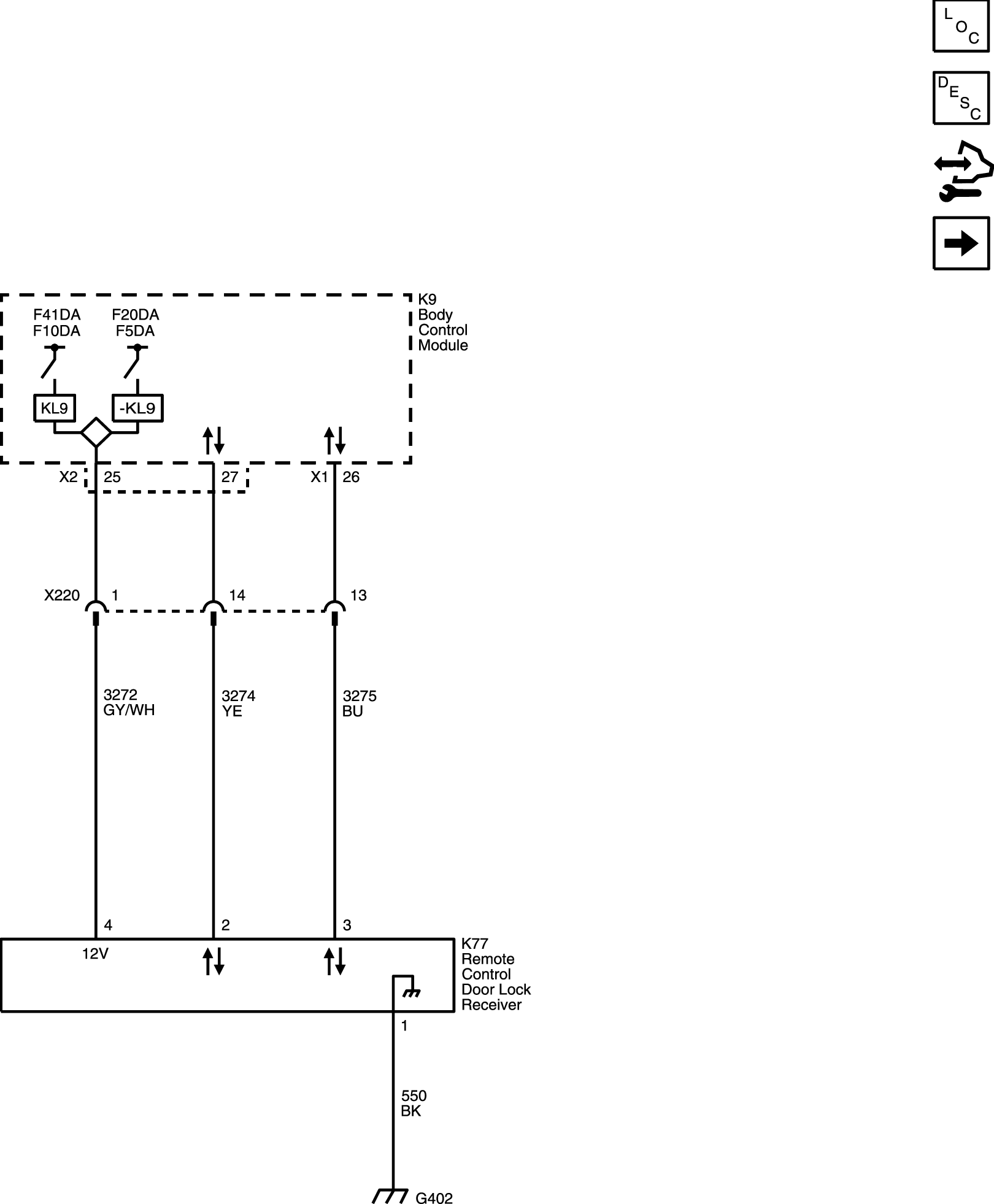

Home › Chevrolet › 2018 › Malibu LS › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions System › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
