Air Cleaner Element Replacement

Courtesy of GENERAL MOTORS COMPANY

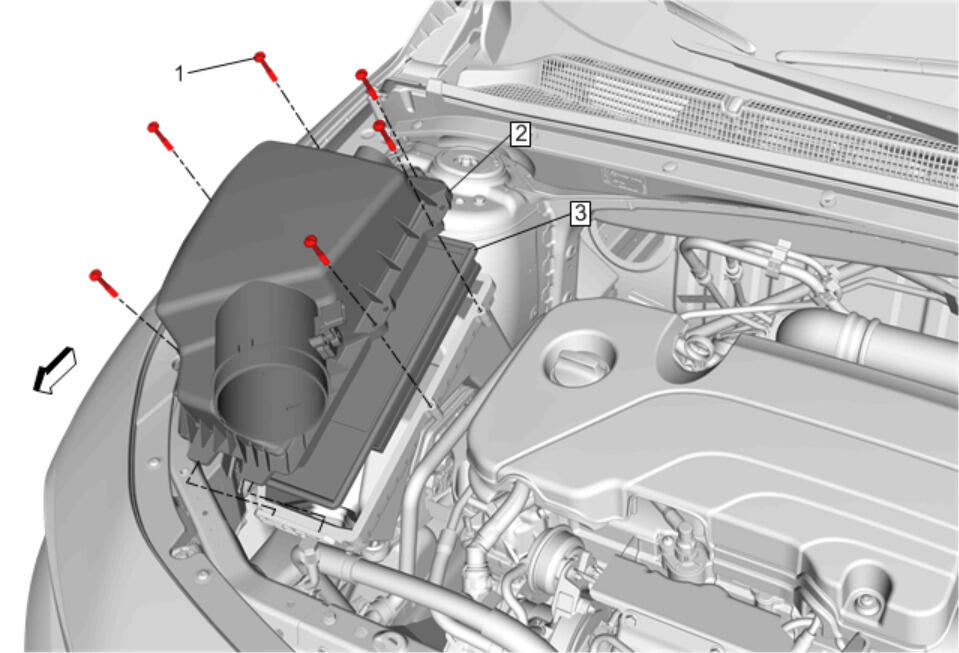

Callout	Component Name
Preliminary Procedures Disconnect the electrical connector. Unclip the wiring harness from the air cleaner upper cover. Air Cleaner Upper Housing @ Air Cleaner Outlet Duct - Disconnect - Air Cleaner Outlet Duct Replacement
1	Air Cleaner Upper Housing Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Air Cleaner Upper Housing
3	Air Cleaner Element
