Intake Air Duct Replacement

Courtesy of GENERAL MOTORS COMPANY

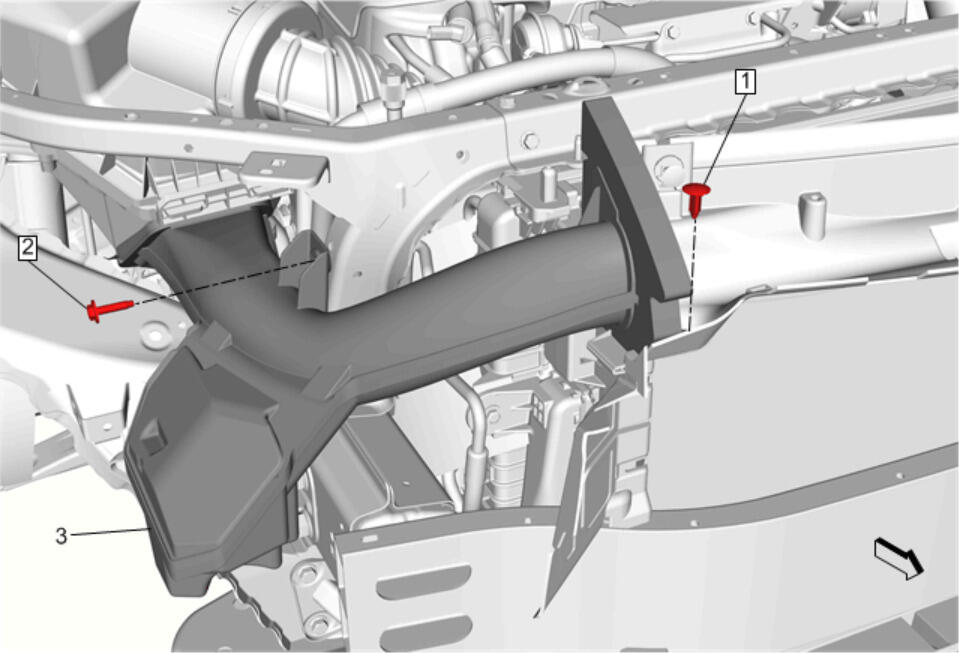

Callout	Component Name
Preliminary Procedures Headlamp Replacement Front Bumper Fascia Replacement
1	Intake Air Duct Retainer CAUTION: Refer to Fastener Caution .
2	Intake Air Duct Bolt Tighten 9 N.m (80 lb in)
3	Intake Air Duct
