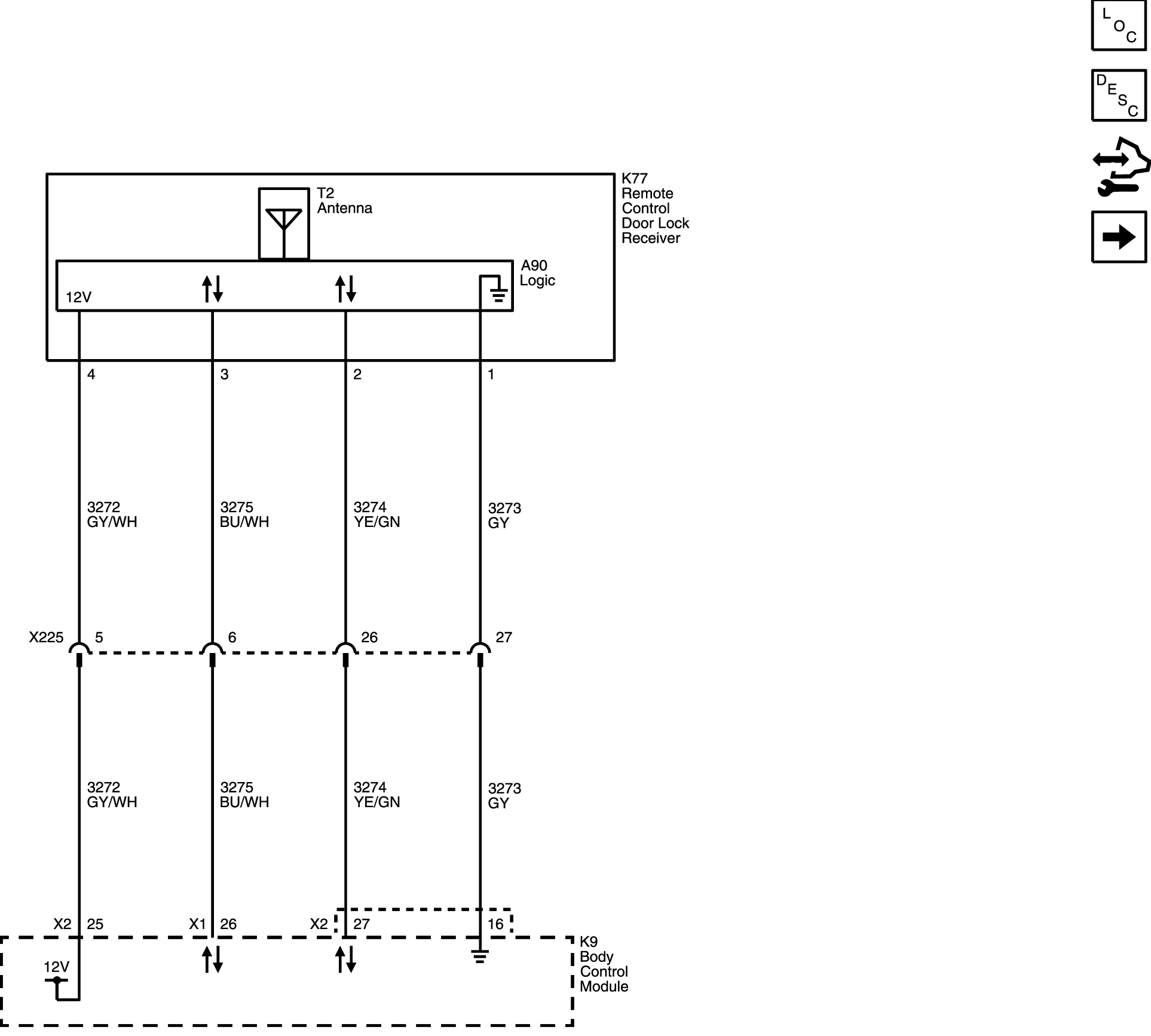

Home › Chevrolet › 2018 › Silverado 1500 SSV, 4WD, Part Time T/Case Control, Gas › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions System › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry
