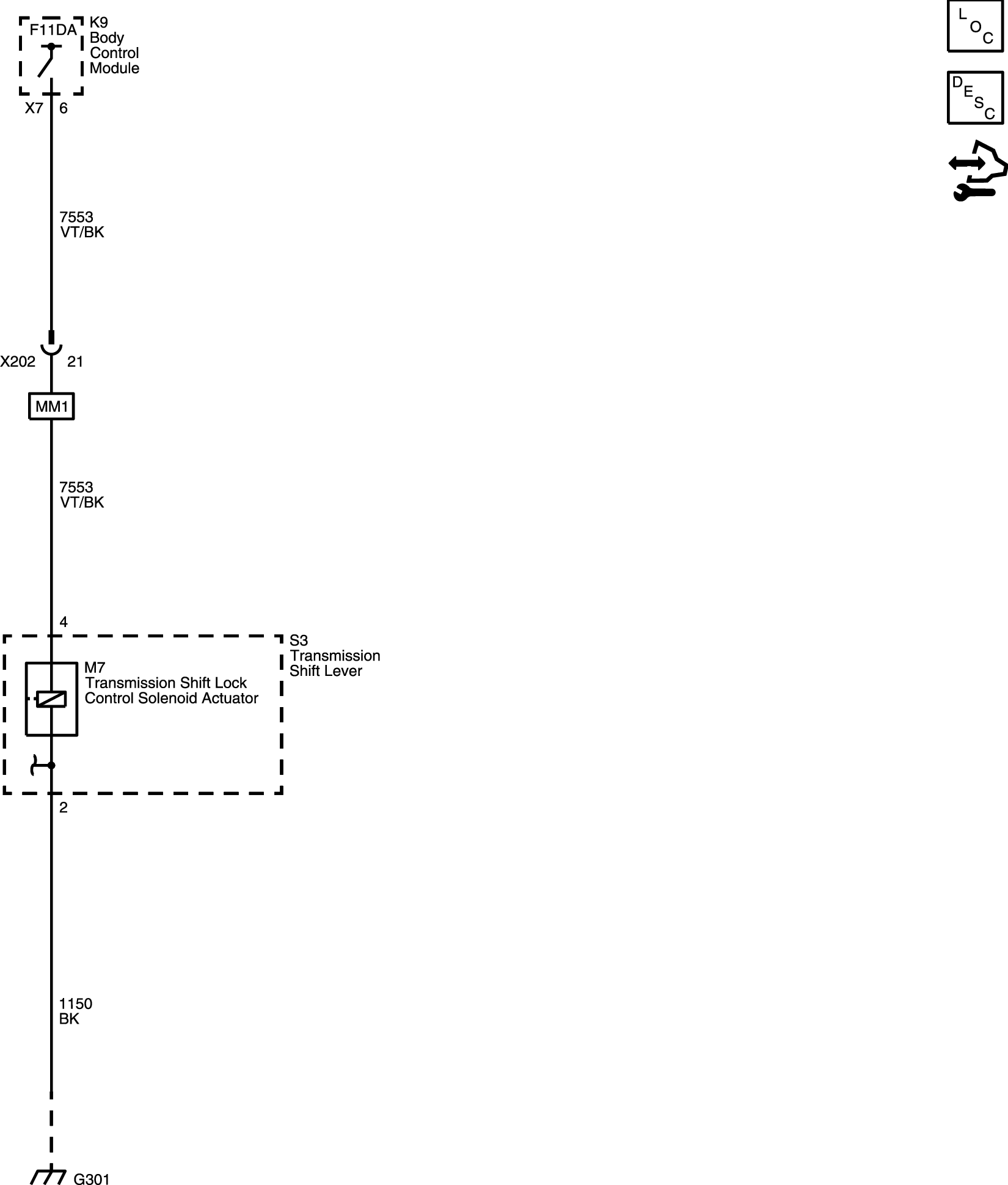

Home › Chevrolet › 2018 › Sonic LS, 1.8L Eng VIN H, Automatic Trans › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock
