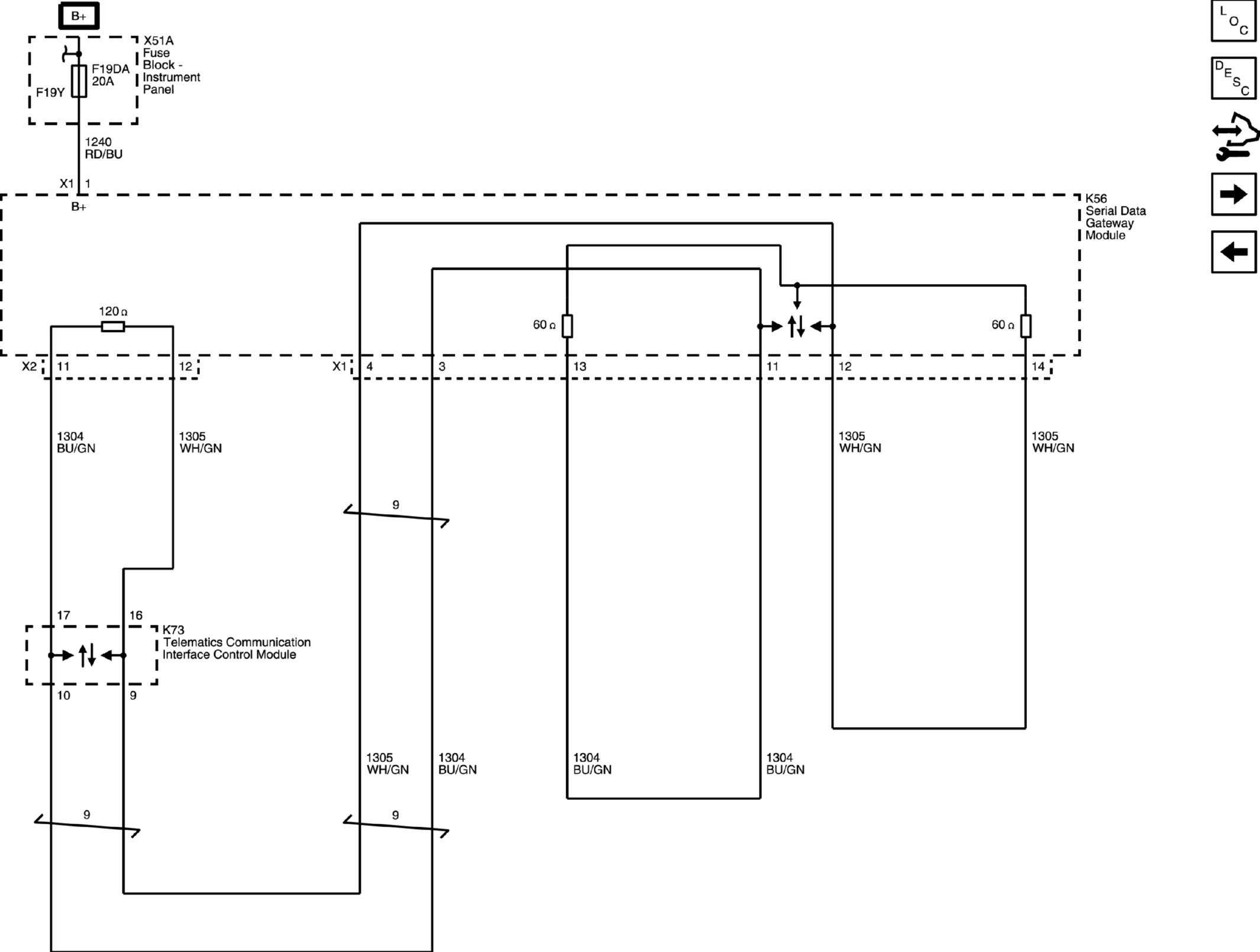

Home › Chevrolet › 2018 › Sonic Premier, 4D Hatchback, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Isolated High Speed GMLAN
