Installation Procedure
WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Ensure the front brake bearing shield is fully seated against the ridge in the steering knuckle.

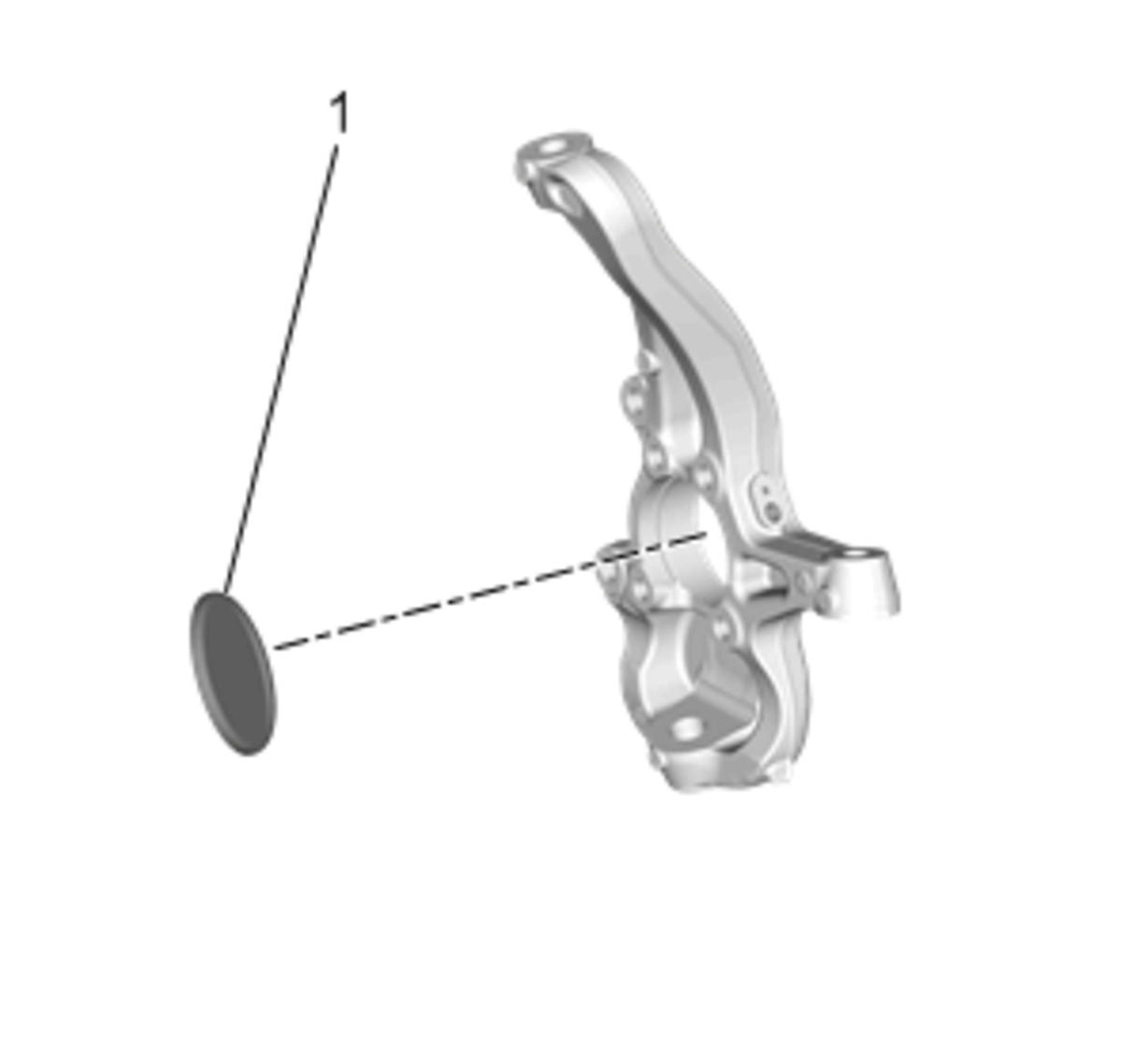

Using a hydraulic press, install the front brake bearing shield (1).

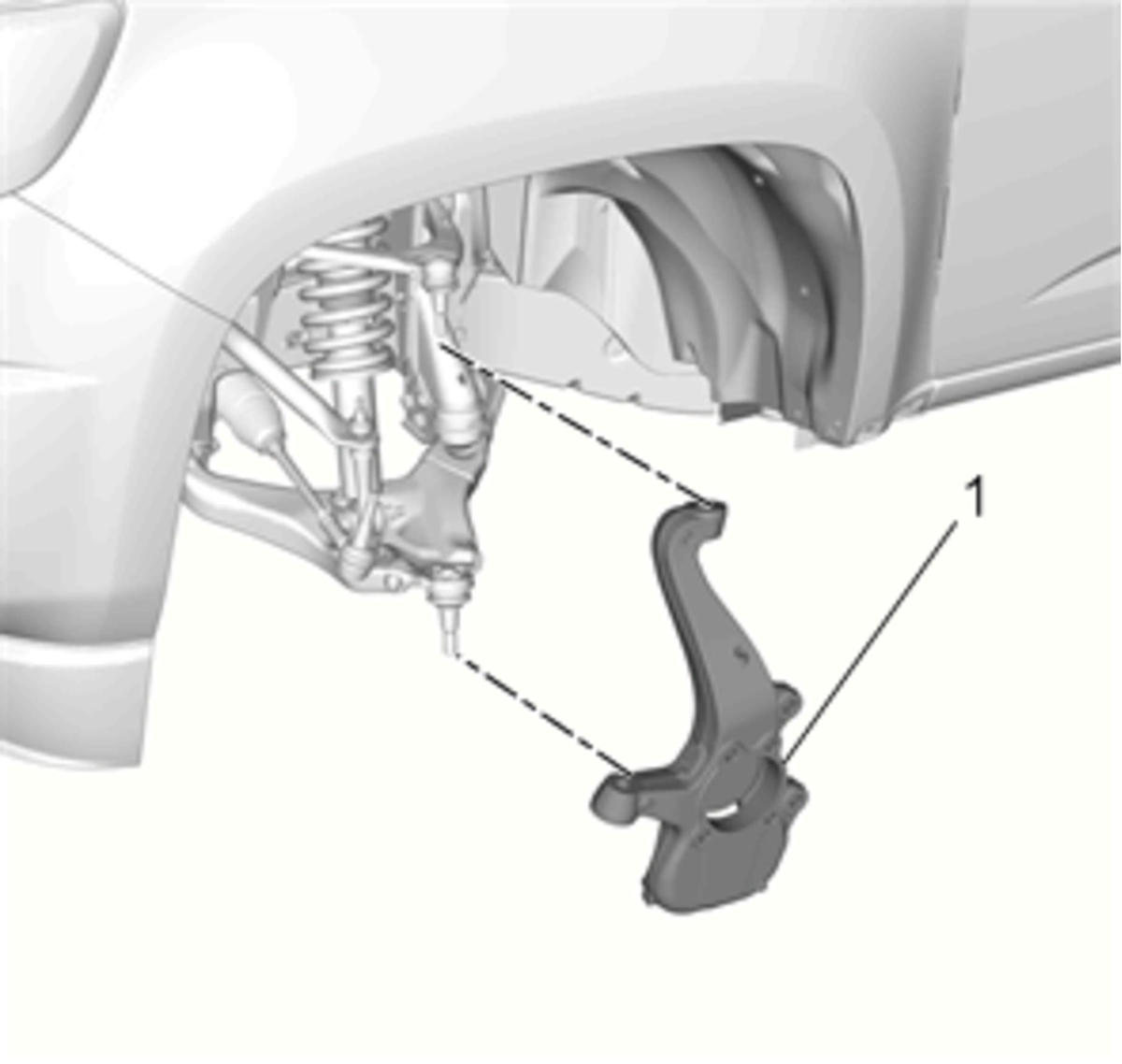

Install the steering knuckle (1). Refer to Steering Knuckle Replacement (4WD without ZR2)Steering Knuckle Replacement (2WD)Steering Knuckle Replacement (4WD with ZR2) .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
