Removal Procedure
WARNING: This page is about a different car, the 2018 GMC Canyon and 2018 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Brake Dust Warning .
NOTE:
Always replace disc brake pads in axle sets.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

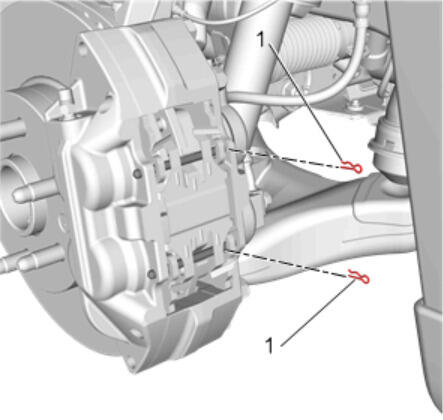

Remove the disc brake pad pin clips (1).

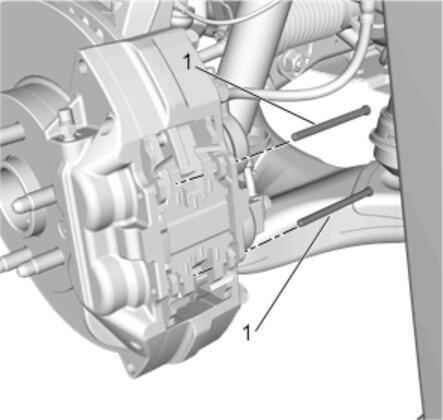

Carefully drive out the brake caliper pins (1) from the brake caliper.

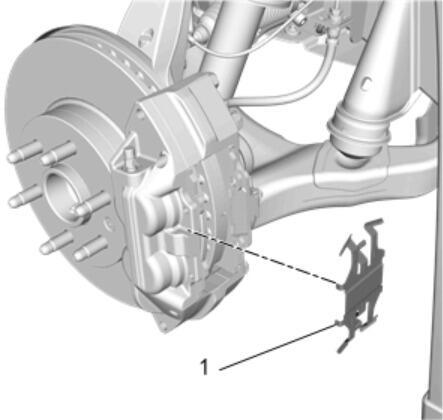

Remove the brake pad spring (1).
