Data Communications System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›

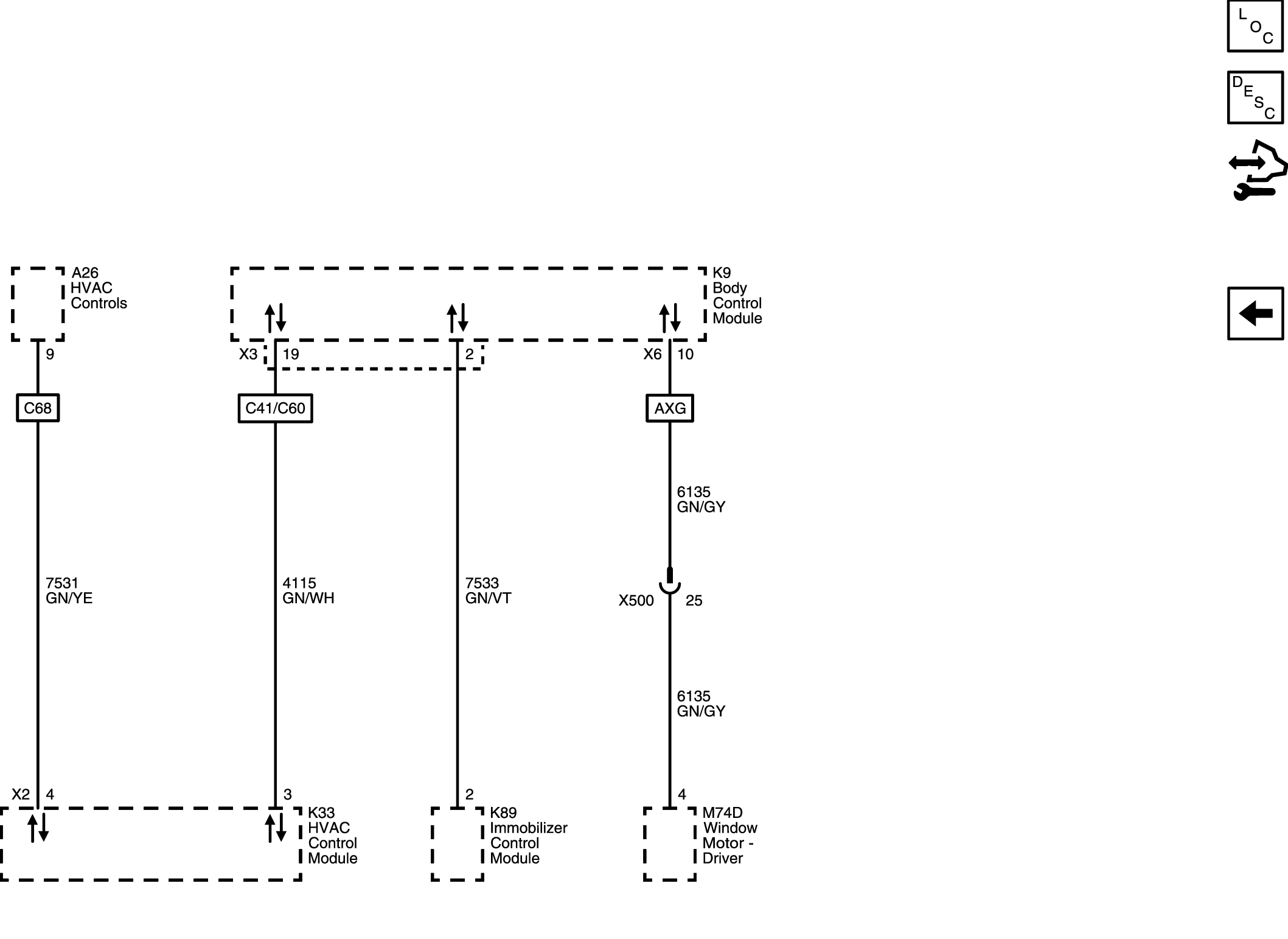

Linear Interconnect Network (LIN)
Linear Interconnect Network (LIN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
