Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

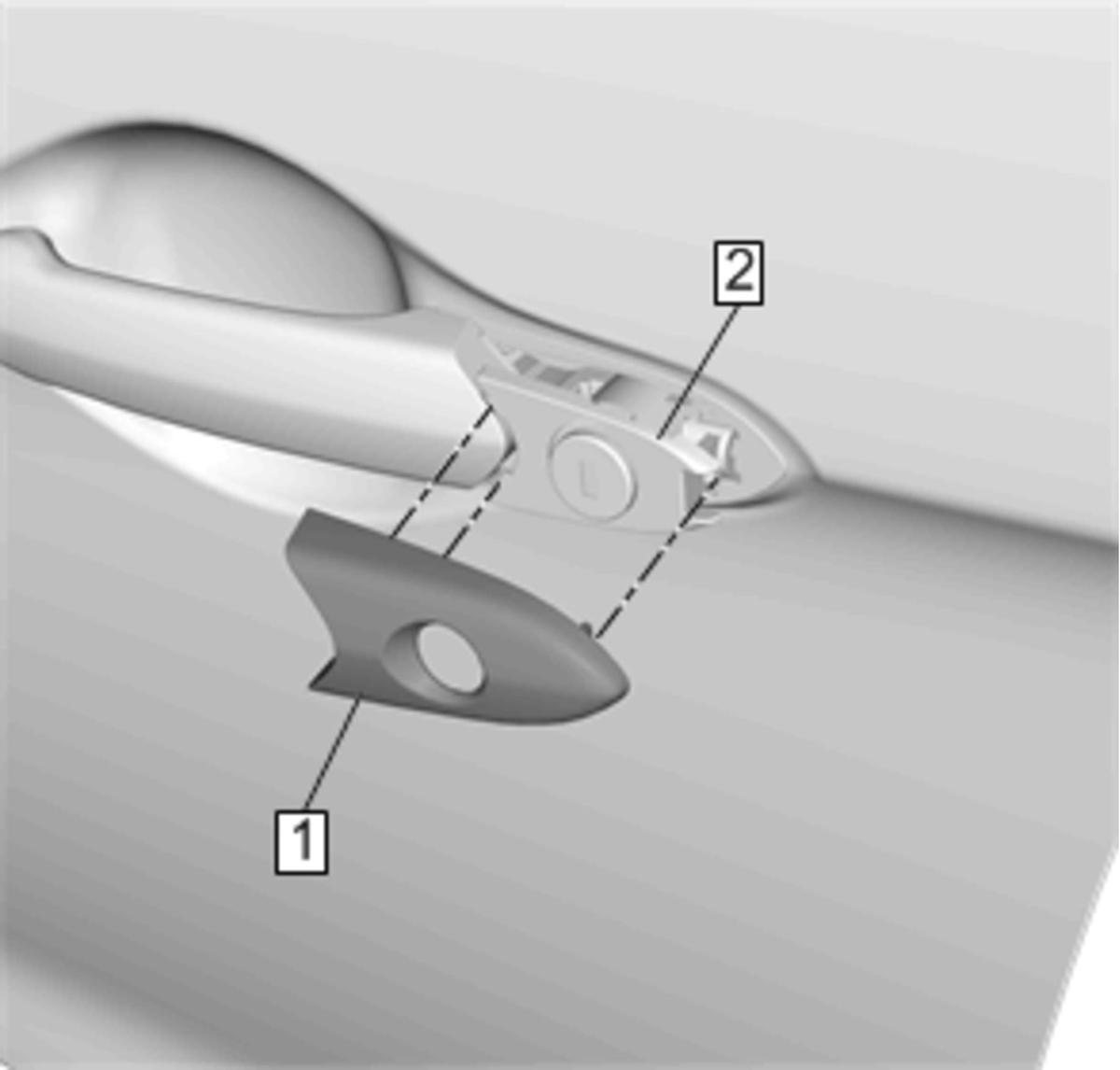

Install the front side door lock cylinder bezel (1) to the front side door lock cylinder (2).
Courtesy of GENERAL MOTORS COMPANY

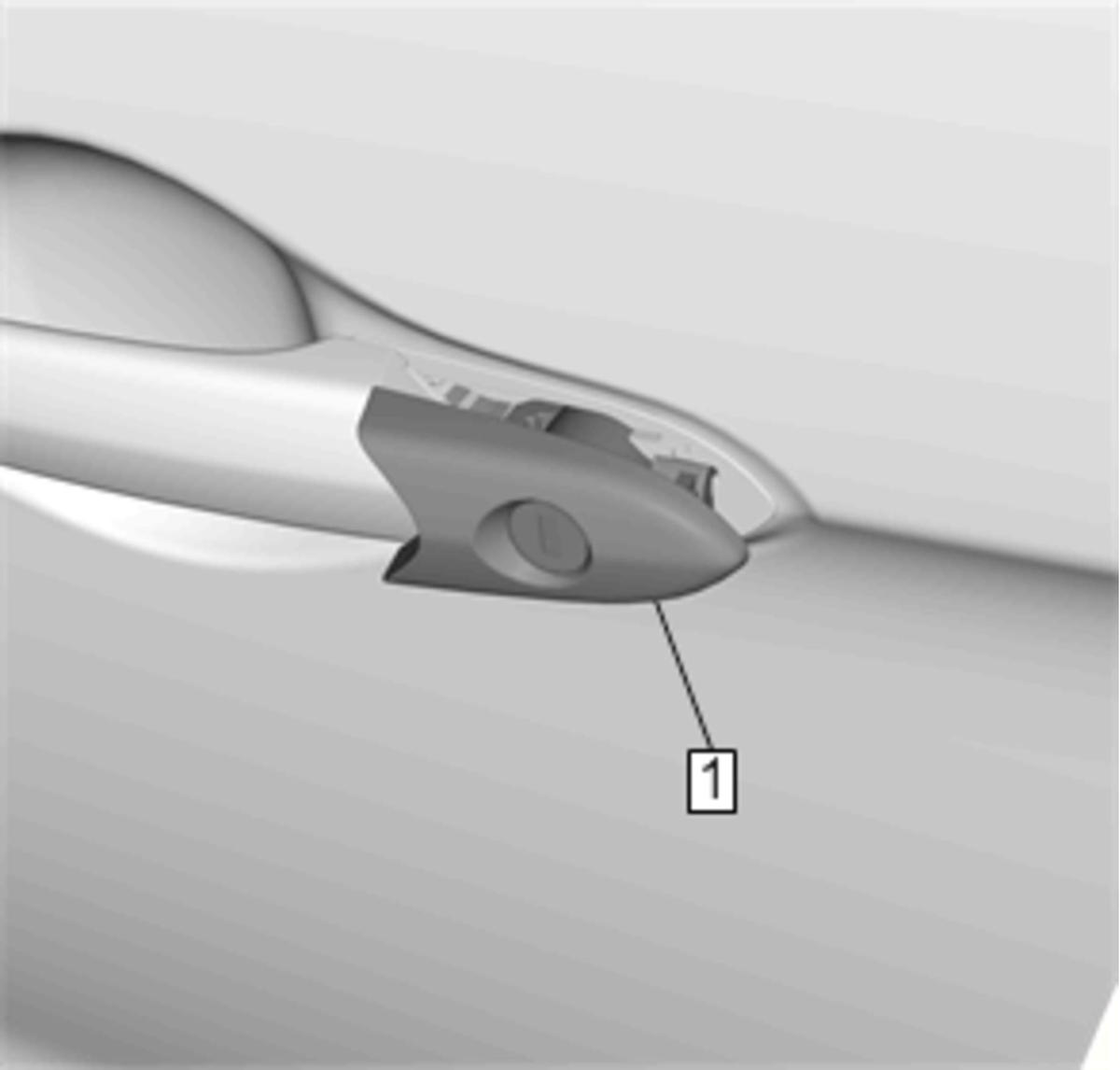

Install the front side door lock cylinder and bezel assembly (1) to the front side door handle.

NOTE:
Ensure that the lock cylinder gasket is in place when installing the lock cylinder to the handle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the front side door lock cylinder clamp screw (2) and tighten to 4.5 N.m (40 lb in).
Install the front side door lock cylinder screw access plug (1).
Inspect the lock cylinder for proper operation.
