Installation Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

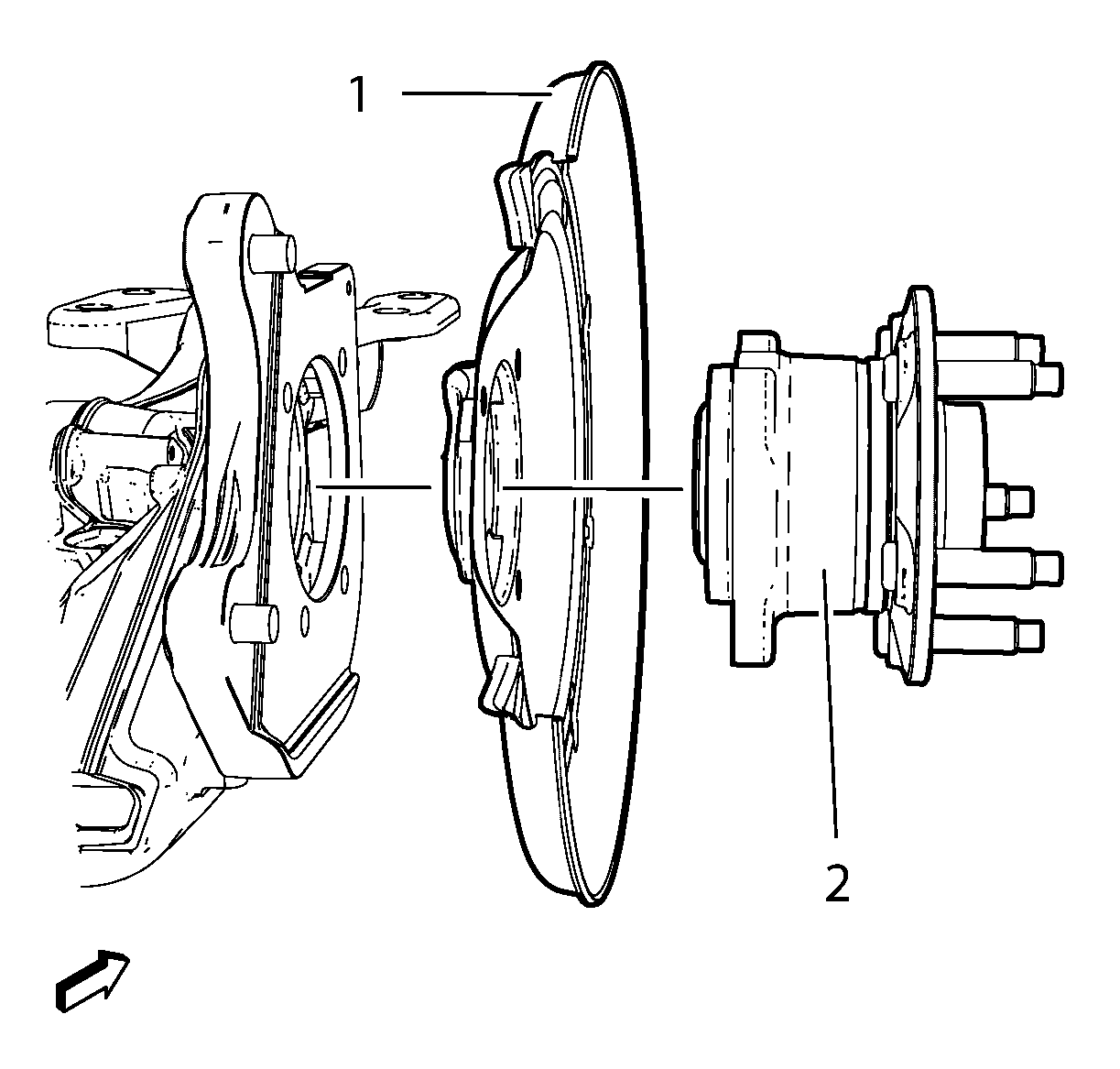

  1. GM2027698

    Position the rear brake shield (1) and wheel bearing/hub assembly (2) onto the rear axle assembly.

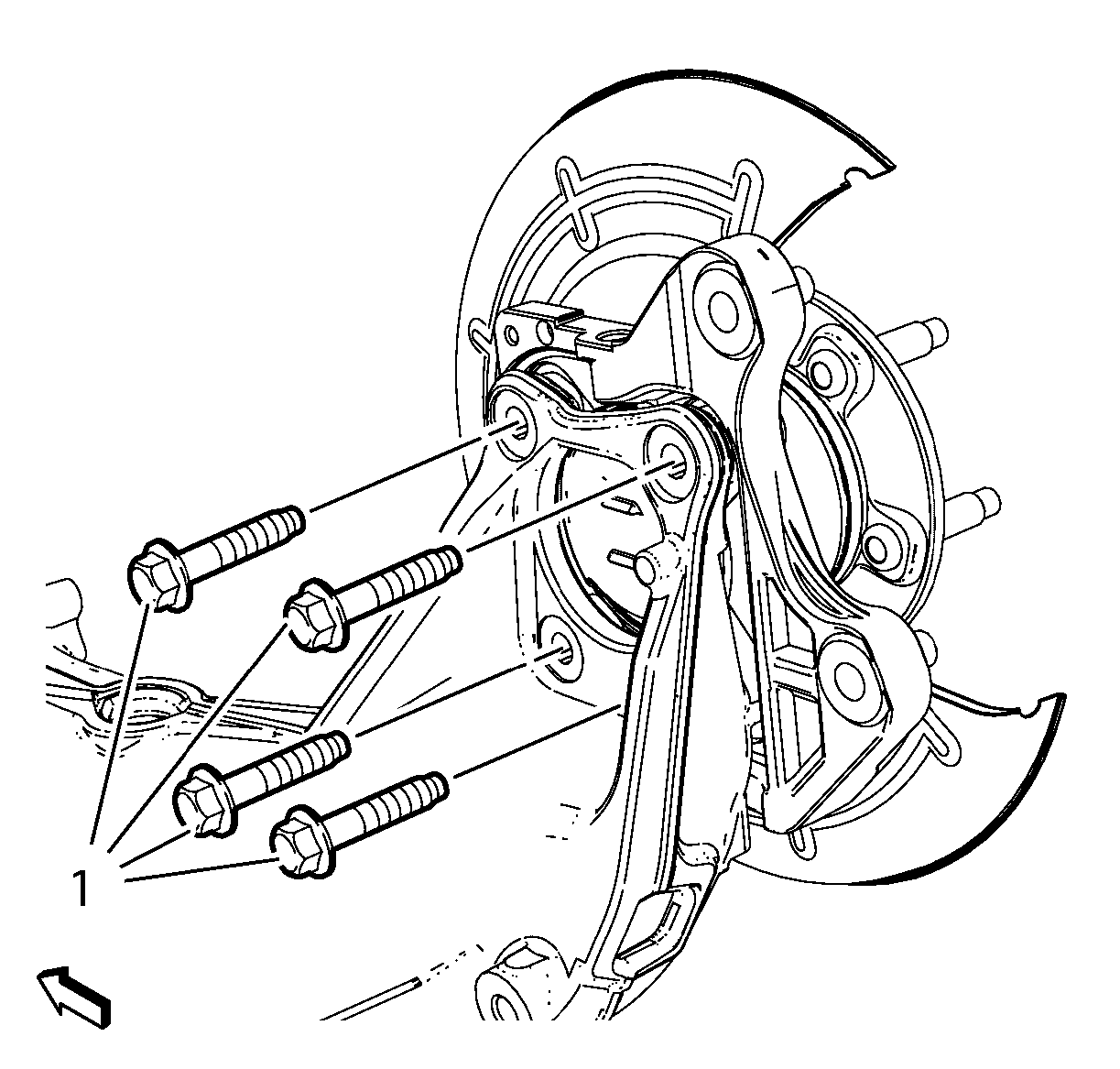

  2. GM2027695
    CAUTION:

    Refer to Fastener Caution .

    Install NEW wheel bearing/hub mounting bolts (1) and tighten a first pass to 50 N.m (37 lb ft).

    3. WARNING:

    Refer to Torque-to-Yield Fastener Warning .

  3. Tighten the NEW wheel bearing/hub mounting bolts (1) a final pass to an additional 30 - 45 degrees, using the EN - 45059  meter.

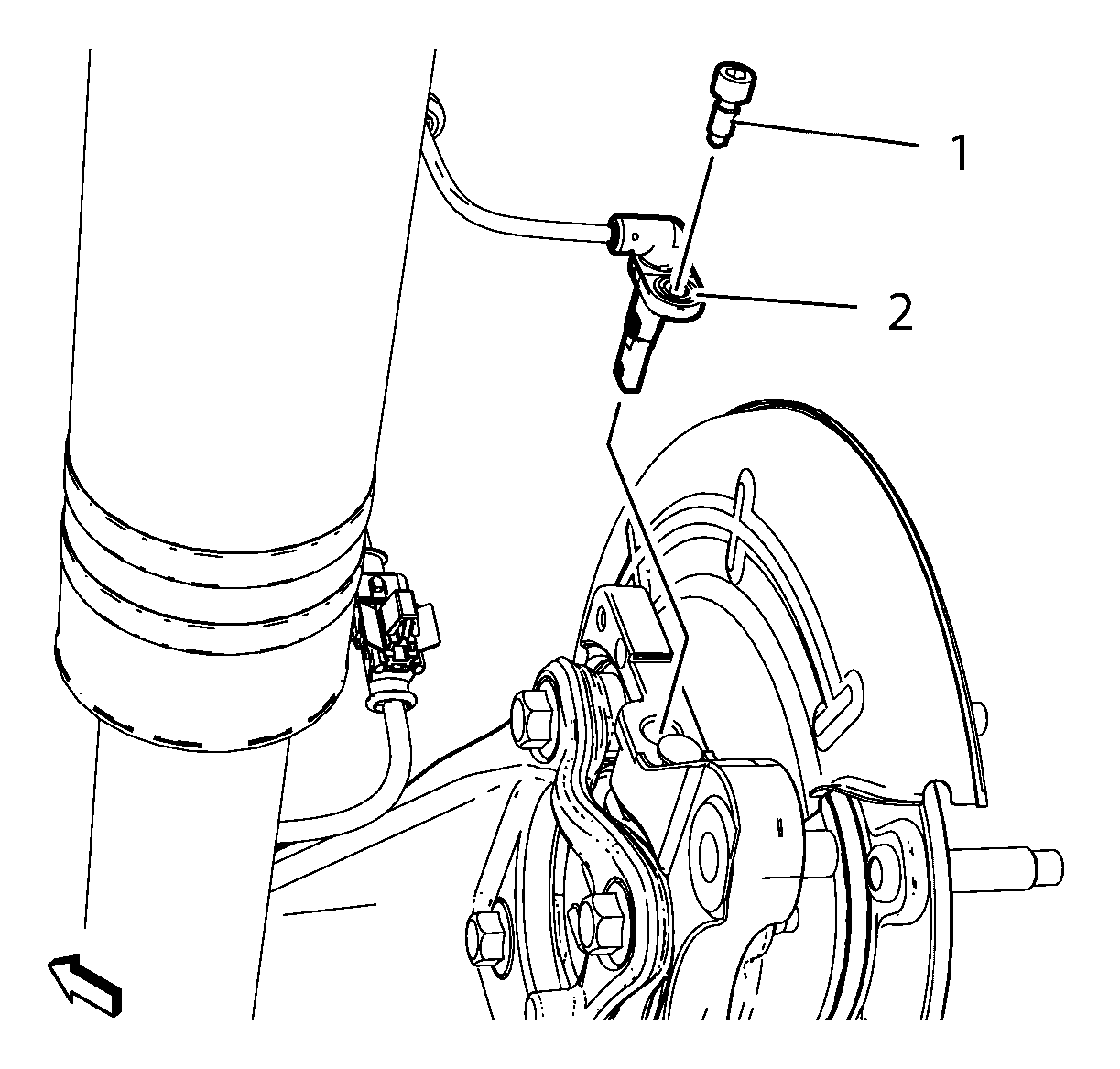

  4. GM2027694

    Install the wheel speed sensor (2).

  5. Install the wheel speed sensor bolt (1) and tighten to 6 N.m (54 lb in).
  6. Install the brake rotor. Refer to Rear Brake Rotor Replacement .
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
