Rear Parking Assist Alarm Sensor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

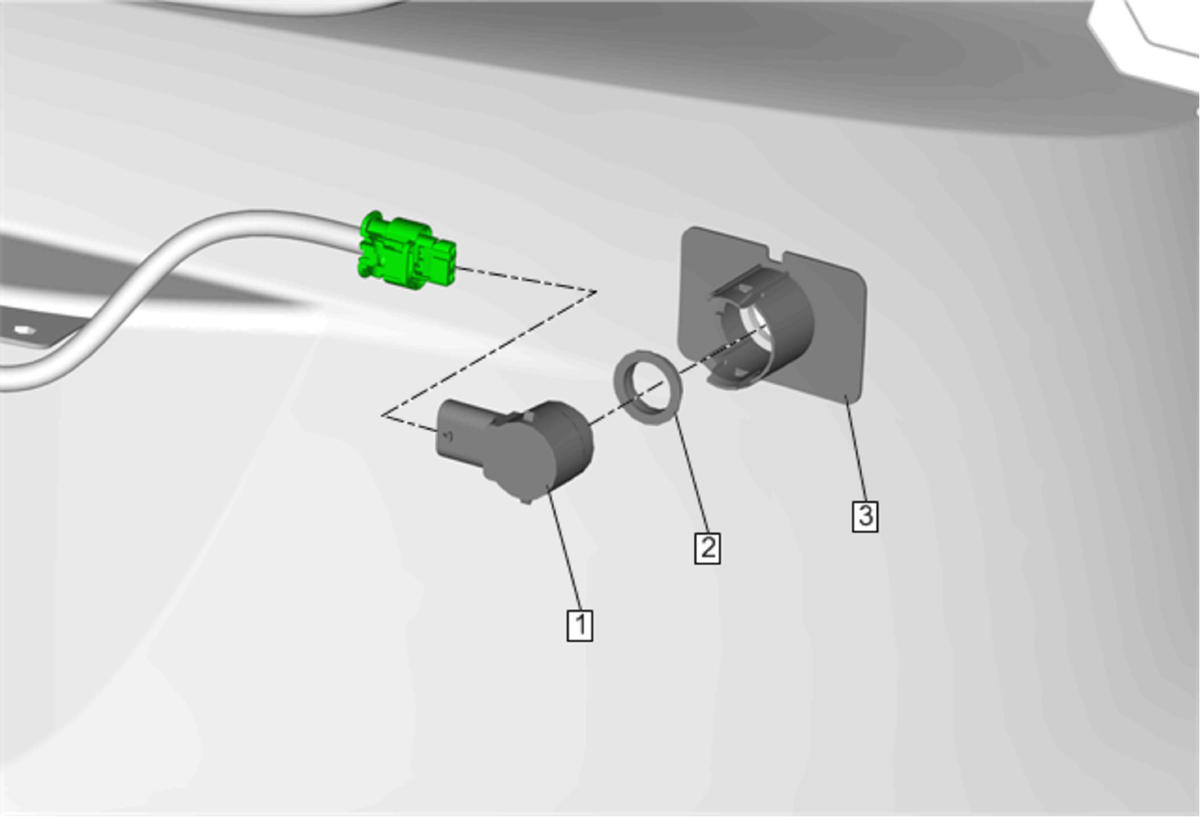

Fig 1: Rear Parking Assist Alarm Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement (Active) .
1	Rear Parking Assist Alarm Sensor Procedure Disconnect the electrical connectors from the rear parking assist alarm sensors. Lift the locking tabs on the housing and remove the rear parking assist alarm sensor.
2	Rear Parking Assist Alarm Sensor Ring
3	Rear Parking Assist Alarm Sensor Housing
