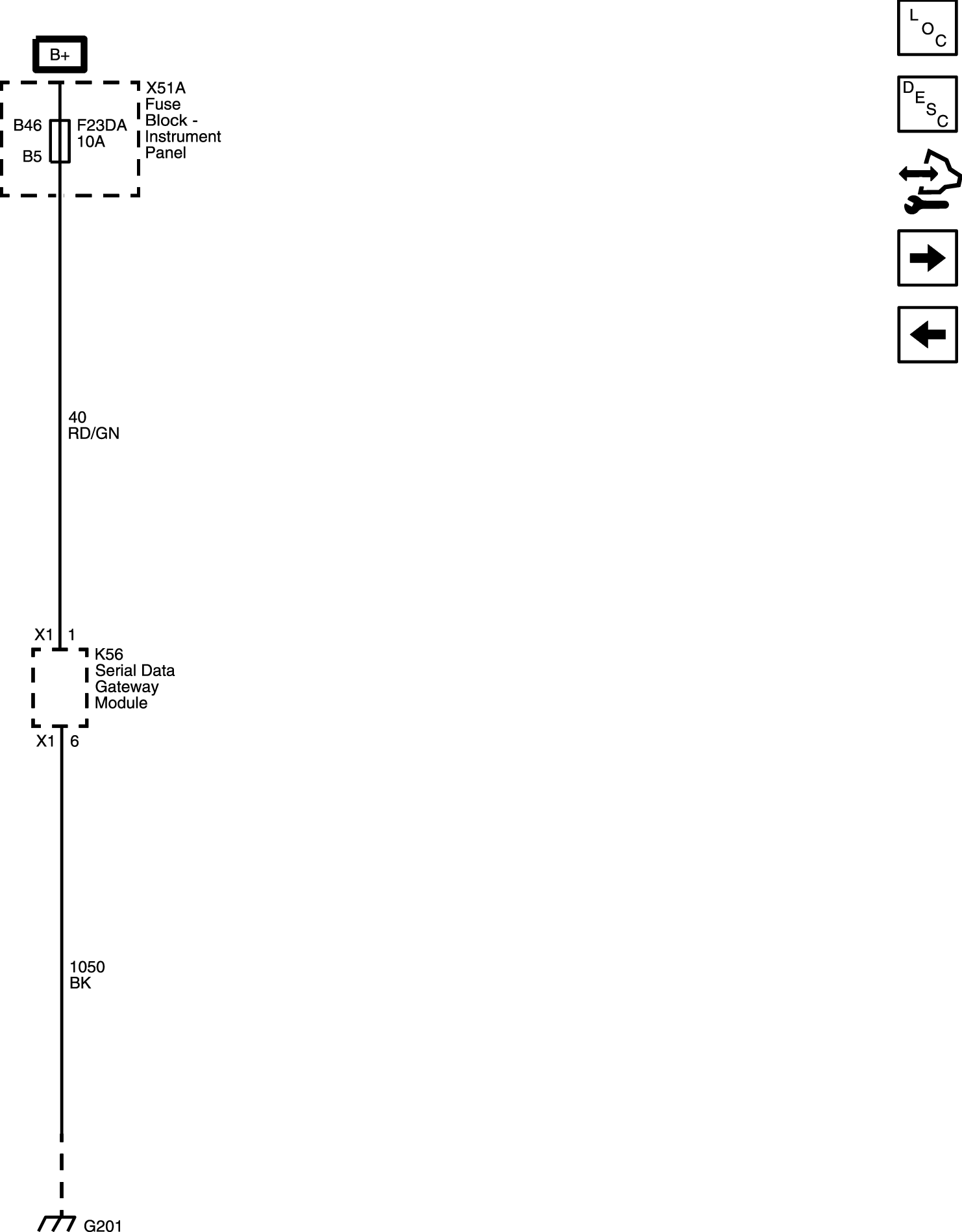

Serial Data Gateway Module Power and Ground
Serial Data Gateway Module Power and Ground
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
