Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator assembly (1) to the vehicle.

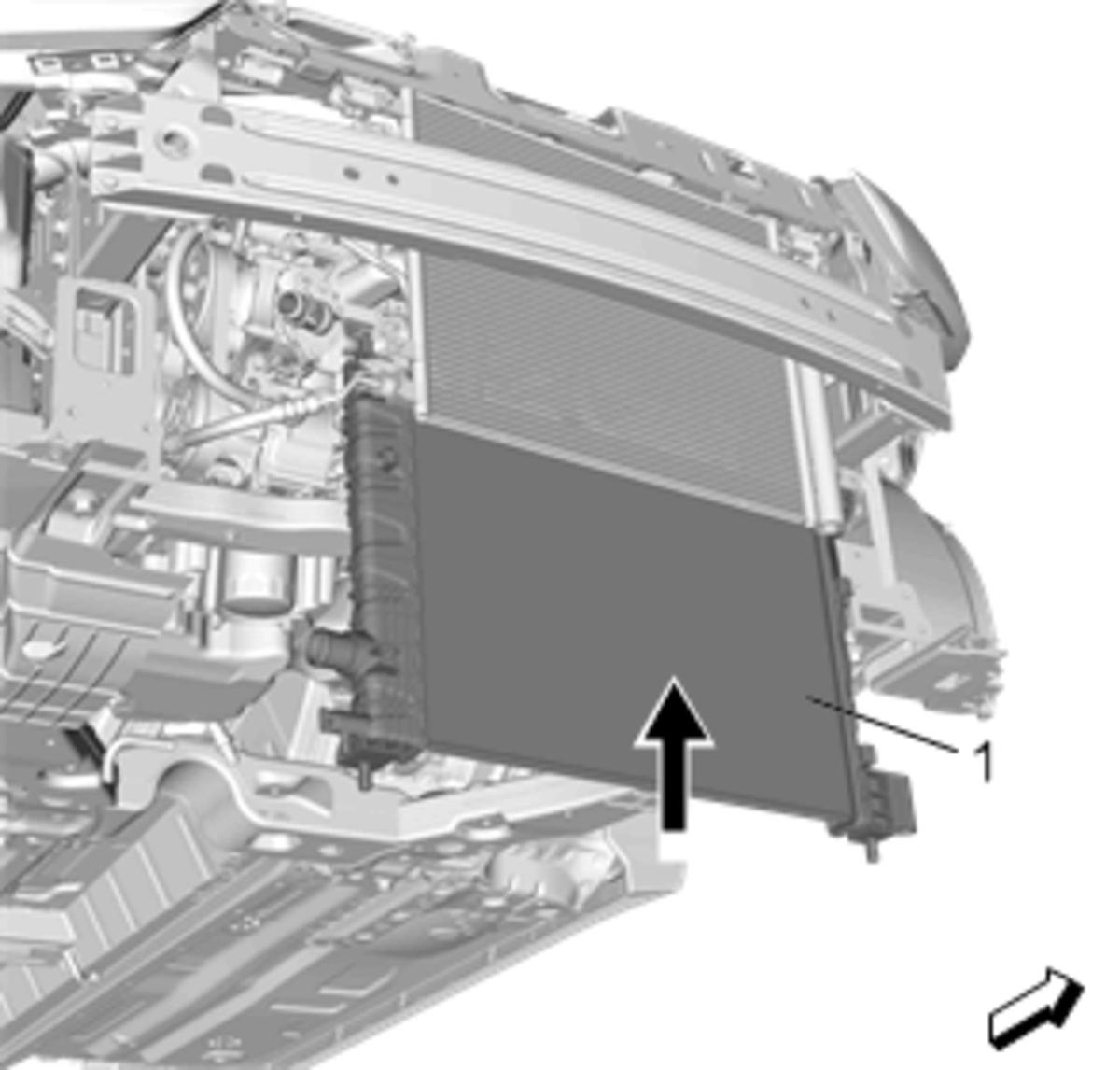

    Fig 1: Radiator Assembly
    GM4236035Courtesy of GENERAL MOTORS COMPANY
  2. Install the radiator lower bracket (2) - right side.

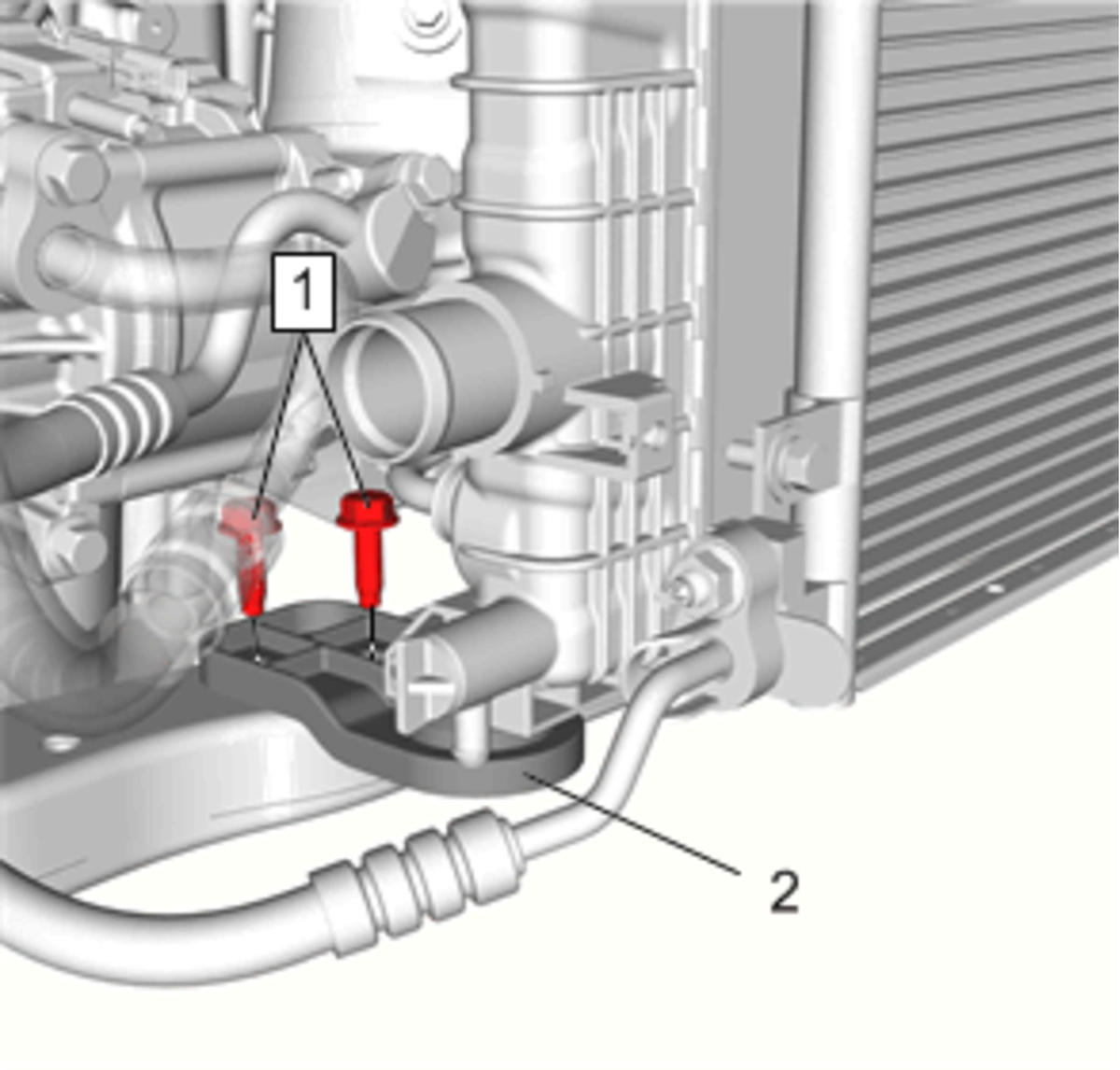

    Fig 2: Radiator Lower Bracket Bolt
    GM4236029Courtesy of GENERAL MOTORS COMPANY
  3. Install the radiator lower bracket bolts (1) - right side and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. Install the radiator lower bracket (2) - left side.

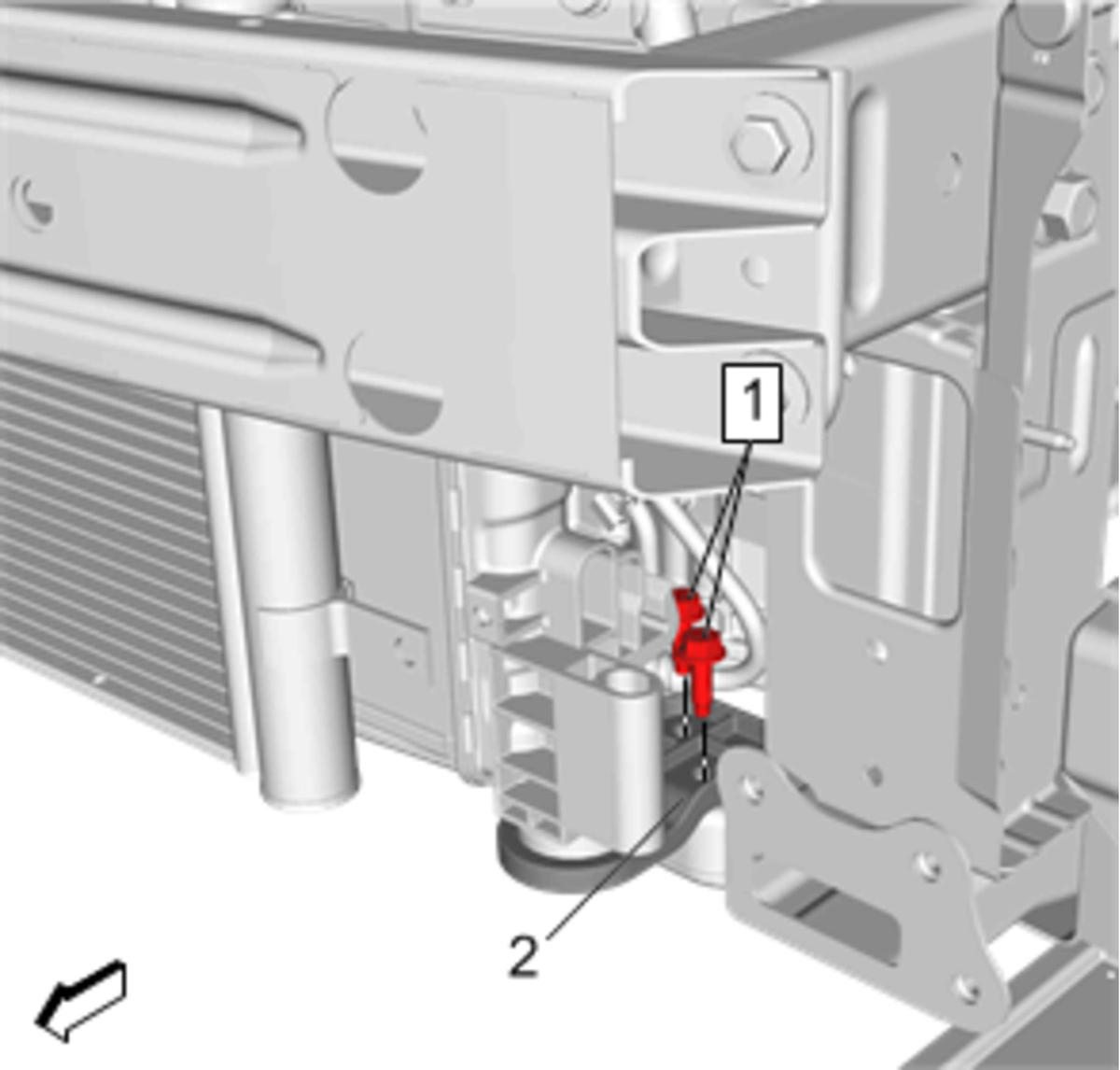

    Fig 3: Radiator Lower Bracket Bolt
    GM4236012Courtesy of GENERAL MOTORS COMPANY
  5. Install the radiator lower bracket bolts (1) - left side and tighten to 22 N.m (16 lb ft).
  6. Install the condenser securing bolts (1) and tighten to 8 N.m (71 lb in).

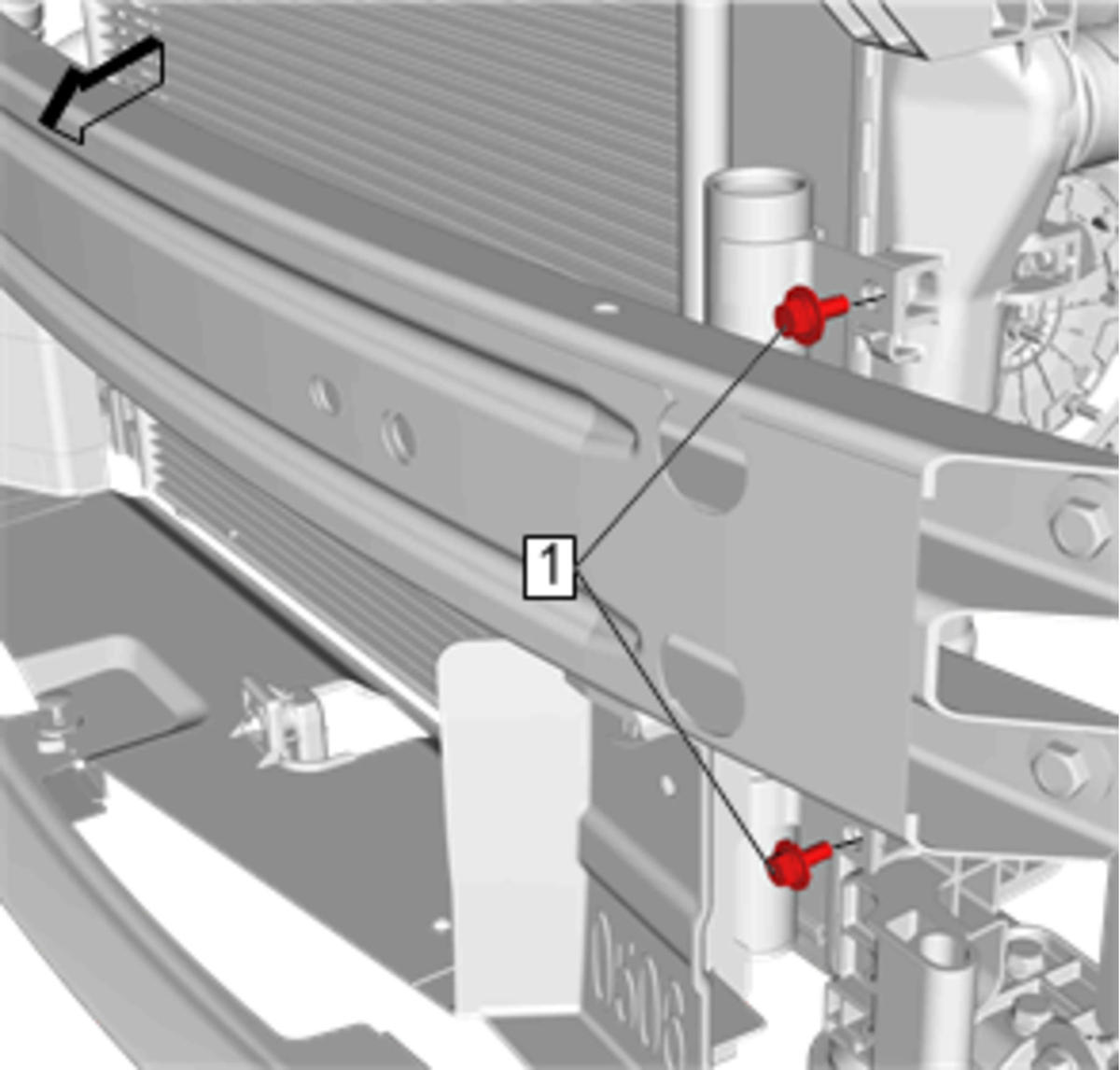

    Fig 4: Condenser Securing Bolts
    GM4115501Courtesy of GENERAL MOTORS COMPANY
  7. Install the condenser securing bolts (1) and tighten to 8 N.m (71 lb in).

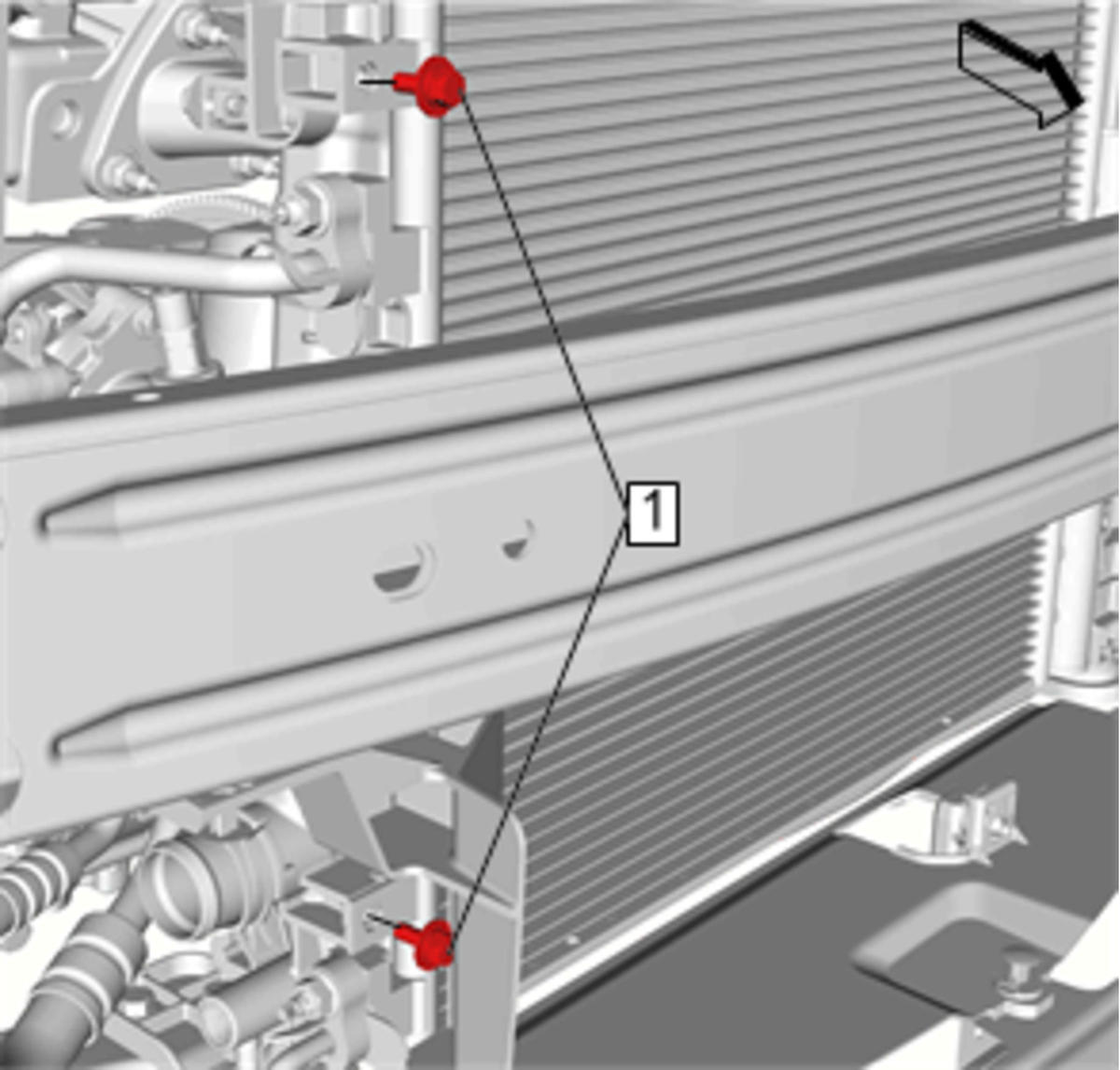

    Fig 5: Condenser Securing Bolts
    GM4115497Courtesy of GENERAL MOTORS COMPANY
  8. Install the engine coolant fan shroud (2). Refer to Cooling Fan and Shroud Replacement .

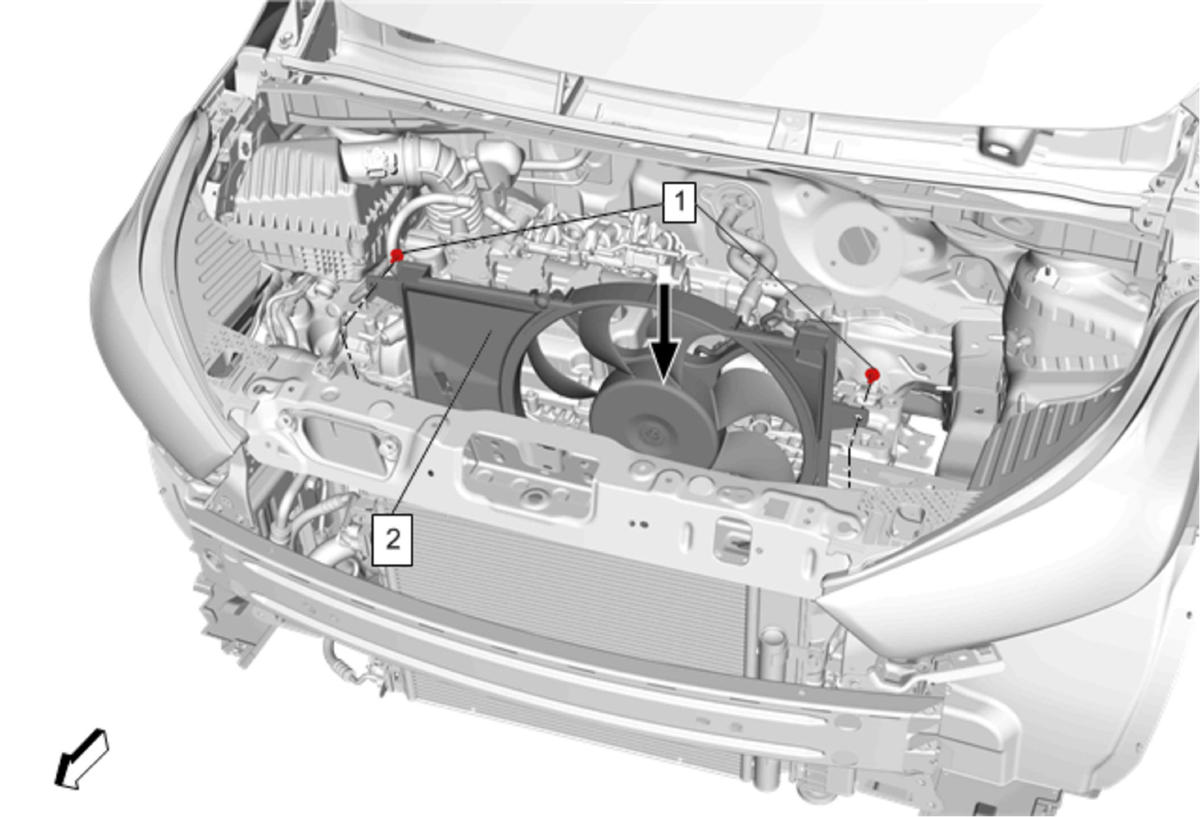

    Fig 6: Engine Coolant Fan Shroud
    GM4236022Courtesy of GENERAL MOTORS COMPANY
  9. Install the engine coolant fan shroud bolt (1) and tighten to 6 N.m (53 lb in).
  10. Connect the electrical connectors to the engine coolant fan shroud.
  11. Position the radiator inlet hose (2) and clip the radiator inlet hose clamp (1).

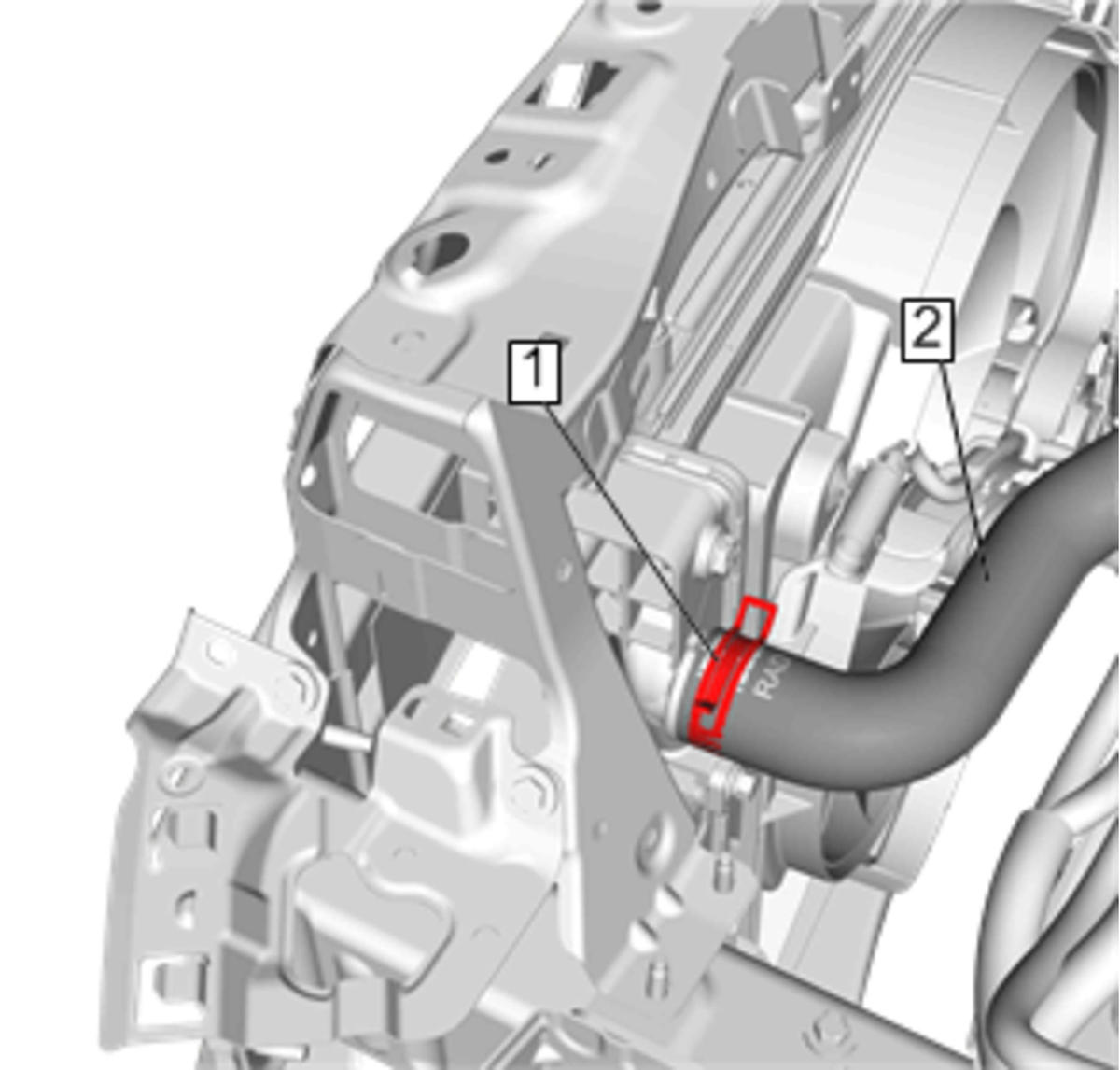

    Fig 7: Radiator Inlet Hose Clamp And Reposition Radiator Inlet Hose
    GM4051743Courtesy of GENERAL MOTORS COMPANY
  12. Position the radiator outlet hose (2) and clip the radiator outlet hose clamp (1).

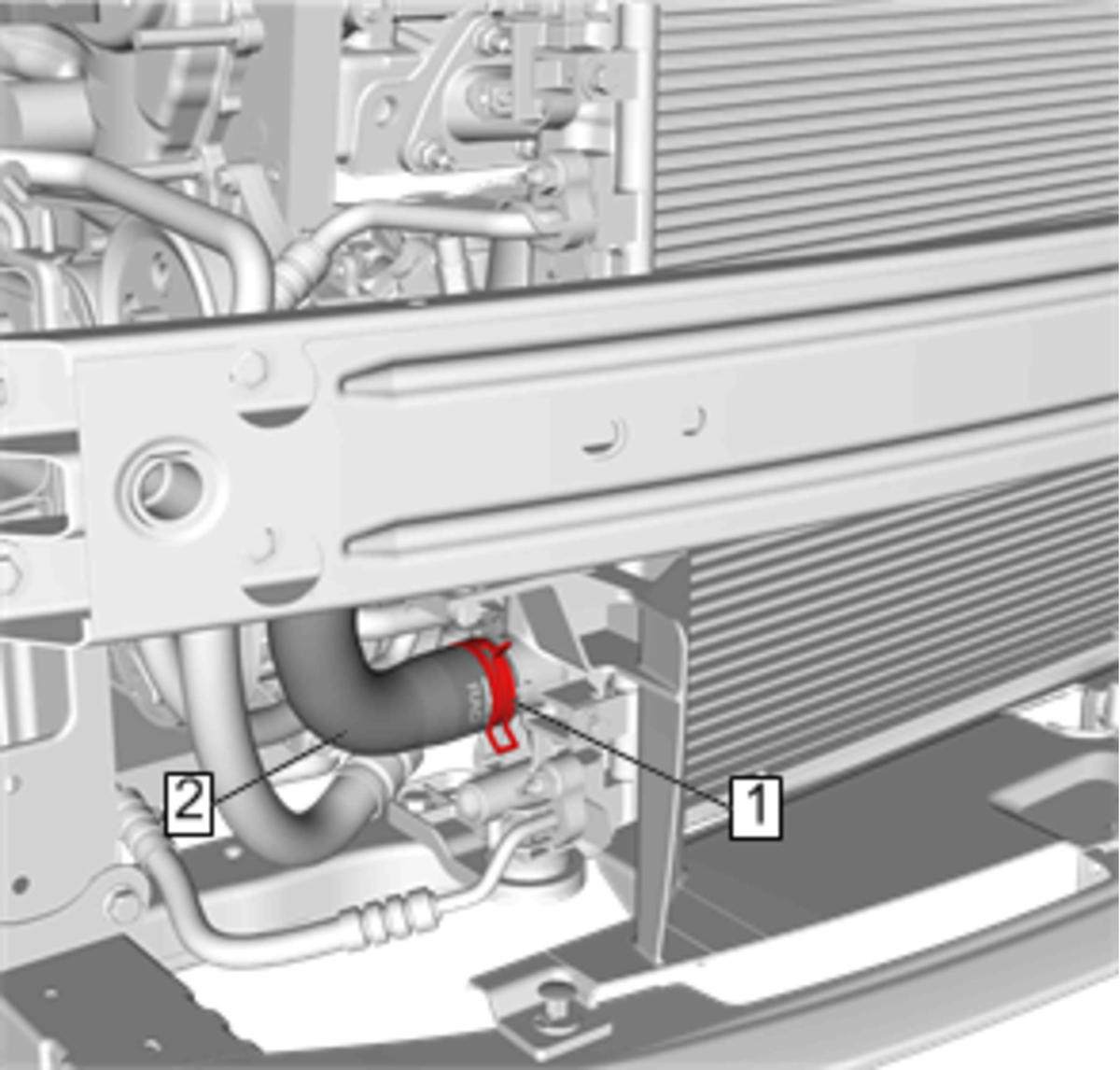

    Fig 8: Radiator Outlet Hose Clamp And Reposition Radiator Outlet Hose
    GM4115490Courtesy of GENERAL MOTORS COMPANY
  13. Install the oxygen sensor connector bracket (2).

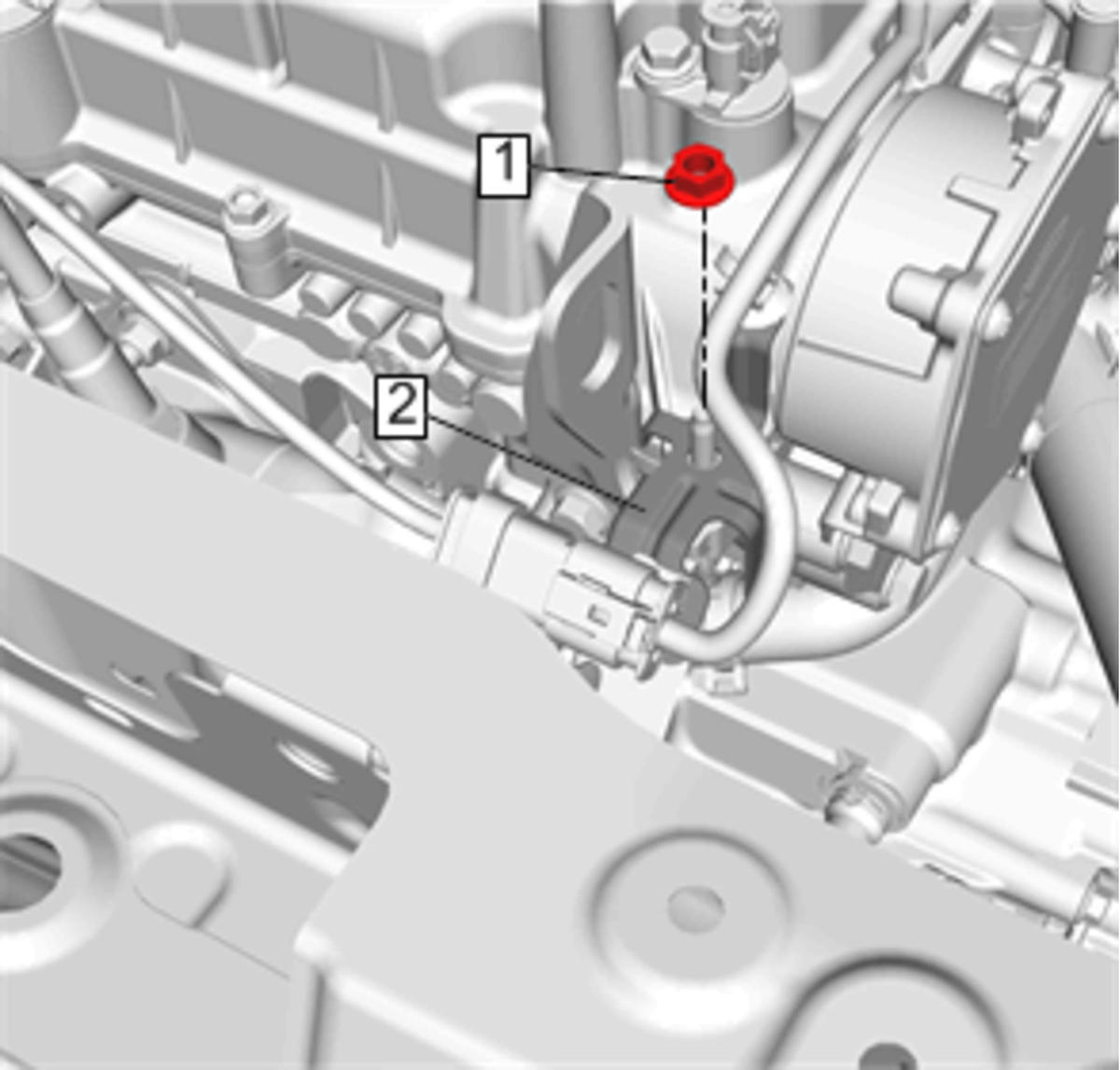

    Fig 9: Oxygen Sensor Connector Bracket Bolt And Bracket
    GM4051740Courtesy of GENERAL MOTORS COMPANY
  14. Install the oxygen sensor connector bracket bolt (1) and tighten to 15 N.m (11 lb ft).
  15. If the auto transmission is equipped, install the transmission fluid cooler inlet and outlet pipe. Refer to Transmission Fluid Cooler Inlet and Outlet Pipe Replacement .
  16. Position the surge tank and install the surge tank bolts. Refer to Radiator Surge Tank Replacement .
  17. Install the radiator air lower baffle. Refer to Radiator Air Lower Baffle Replacement .
  18. Install the radiator air upper baffle. Refer to Radiator Air Upper Baffle and Deflector Replacement .
  19. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  20. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  21. Fill the cooling system. Refer to Cooling System Draining and Filling .
  22. Start the engine and check for coolant leaks.
