Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Lower the sunroof module assembly. Refer to Sunroof Module Assembly Replacement
Remove the sunroof window motor. Refer to Sunroof Window Motor Replacement
Remove the sunroof housing drain gutter. Refer to Sunroof Housing Drain Gutter Replacement

Fig 1: Sunroof Housing Drain Gutter
Courtesy of GENERAL MOTORS COMPANY
Remove the sunroof sunshade. Refer to Sunroof Sunshade Replacement

Fig 2: Sunroof Sunshade
Courtesy of GENERAL MOTORS COMPANY
Remove the rear drainage piece screw (1) and rear drainage piece (2).

Fig 3: Rear Drainage Piece Screw
Courtesy of GENERAL MOTORS COMPANY
Remove the front cover guide screw (1) and front cover guide (2).

Fig 4: Front Cover Guide Screw
Courtesy of GENERAL MOTORS COMPANY
Remove the locking slide buffer (1).

Fig 5: Locking Slide Buffer
Courtesy of GENERAL MOTORS COMPANY

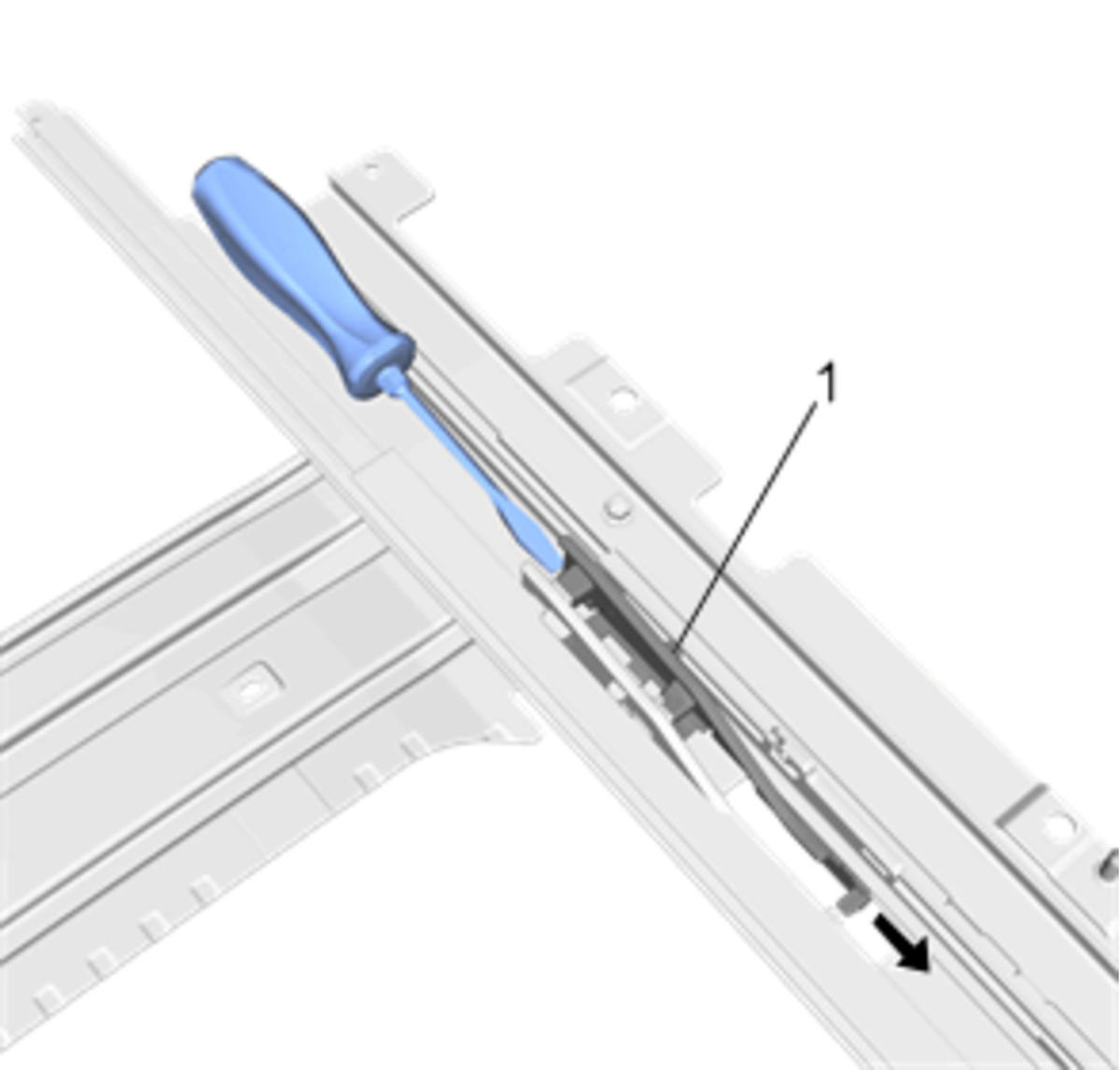

Use the flat tip tool push the drive wedge (1) to backward.

Fig 6: Drive Wedge
Courtesy of GENERAL MOTORS COMPANY
Remove the drive wedge (1) from locking slider (2) and the curve on panel assembly (3).

Fig 7: Drive Wedge, Locking Slider And Curve On Panel Assembly
Courtesy of GENERAL MOTORS COMPANY
Hold the middle of curve on panel assembly (1). Raise the rear side of curve on panel assembly and push the curve on panel assembly to the forward.

Fig 8: Curve On Panel Assembly
Courtesy of GENERAL MOTORS COMPANY

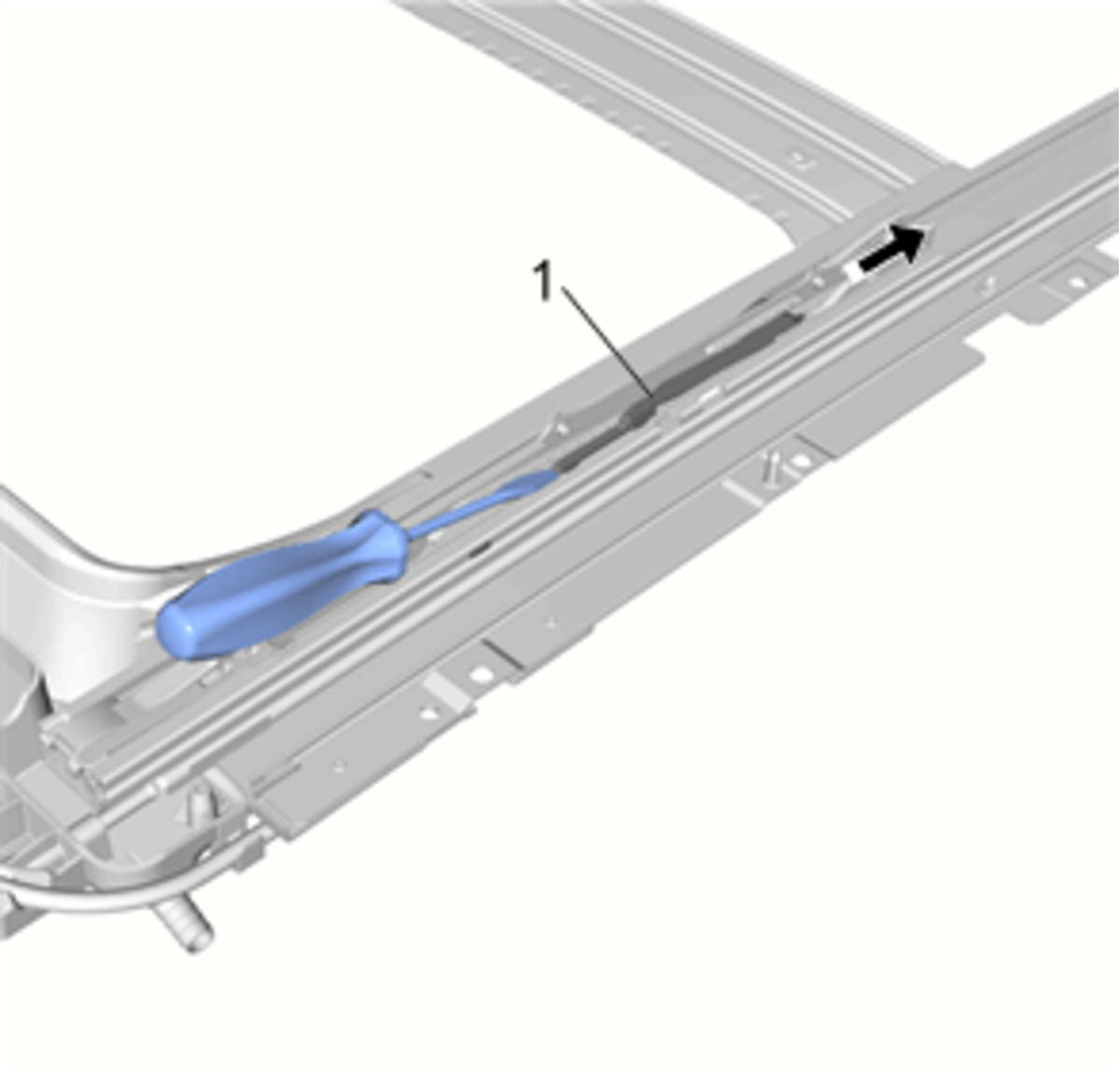

Remove the curve on guide B (1). Push the rear side of curve on panel using flat tip tool.

Fig 9: Curve On Guide B
Courtesy of GENERAL MOTORS COMPANY
Remove the curve on guide A (1).

Fig 10: Curve On Guide A
Courtesy of GENERAL MOTORS COMPANY

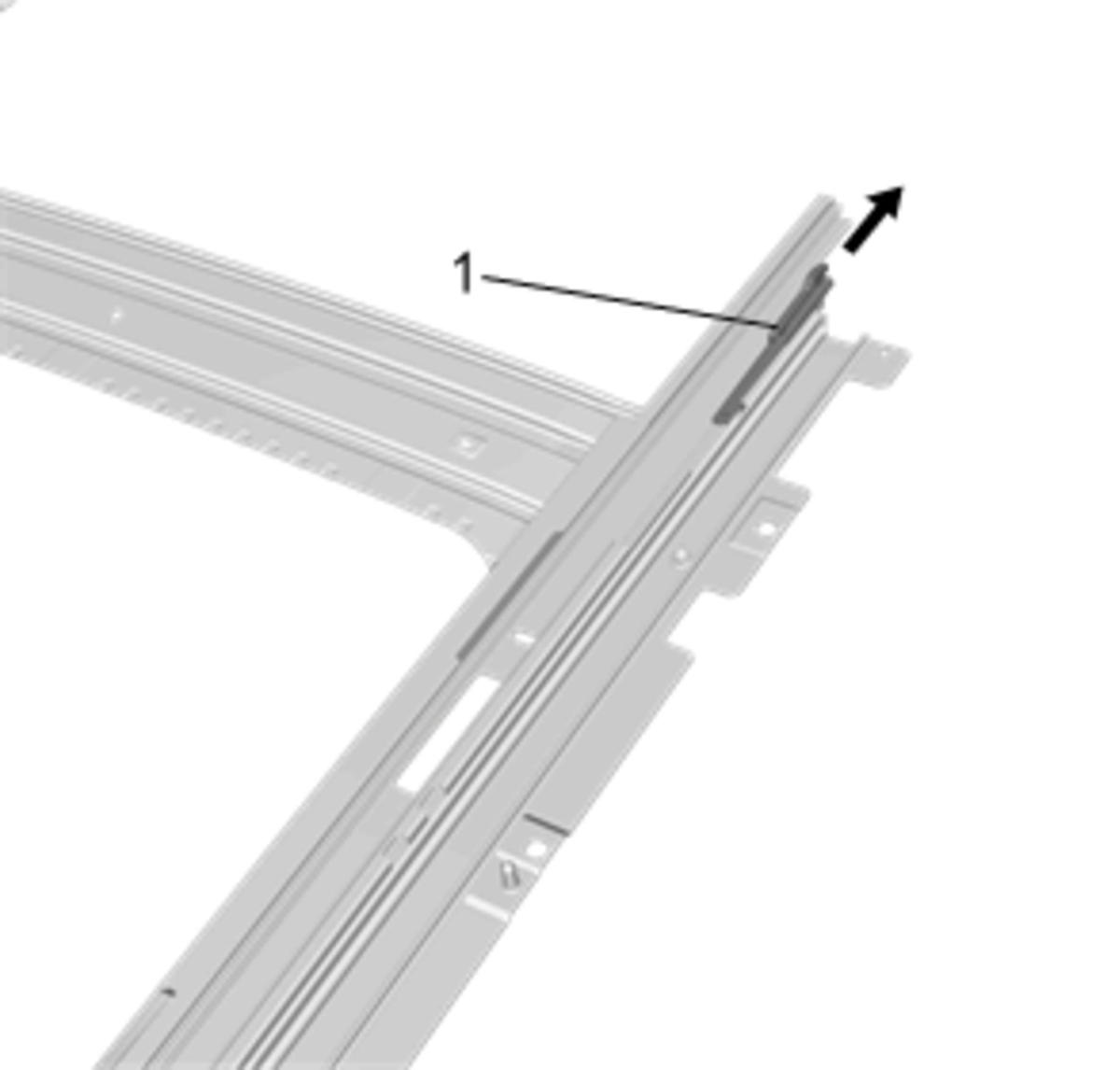

Remove the locking slide (1).

Fig 11: Locking Slide
Courtesy of GENERAL MOTORS COMPANY

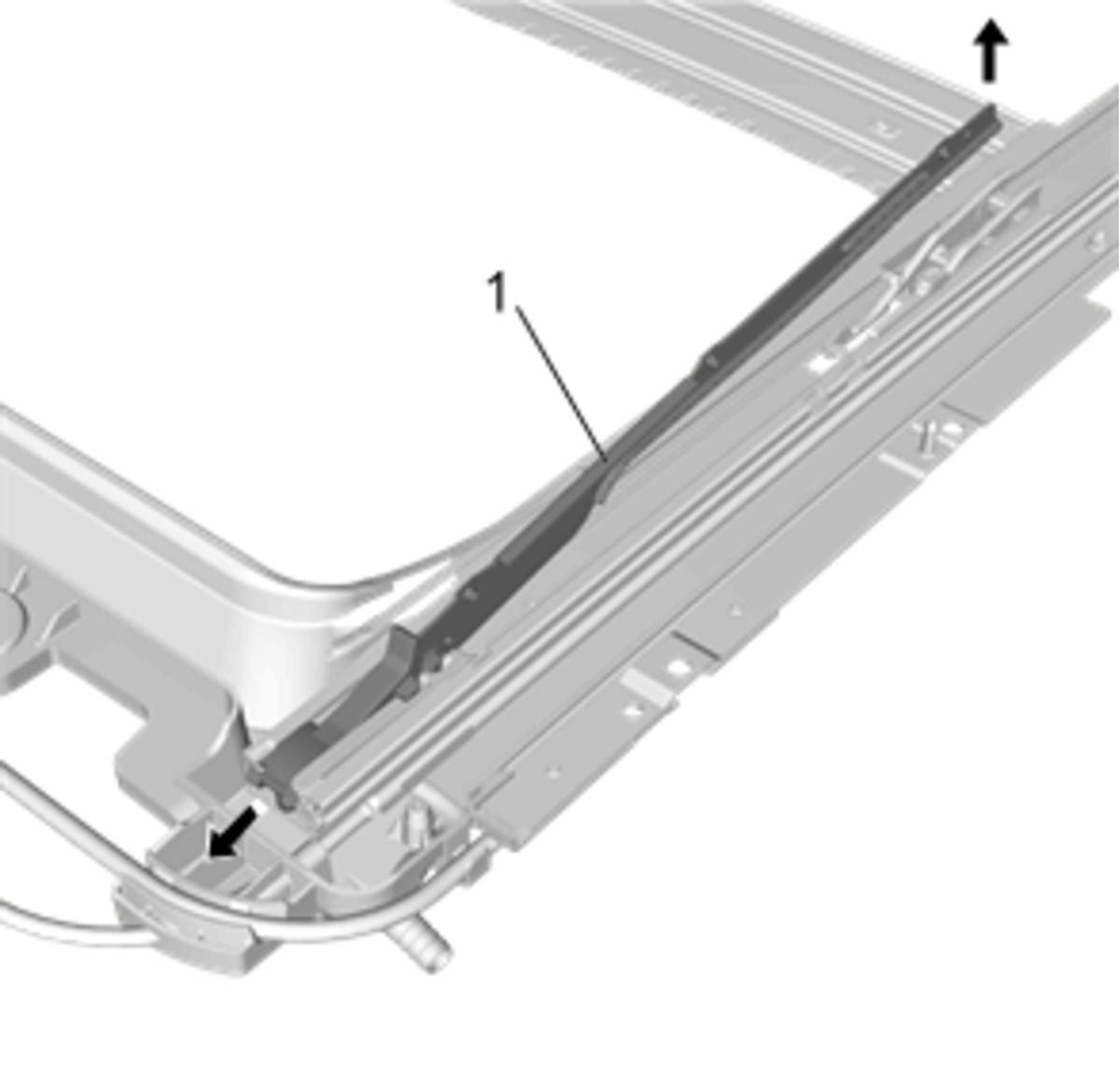

Remove the retraction bar (1) and drive cable (2) from the sunroof frame.

Fig 12: Retraction Bar And Drive Cable
Courtesy of GENERAL MOTORS COMPANY
