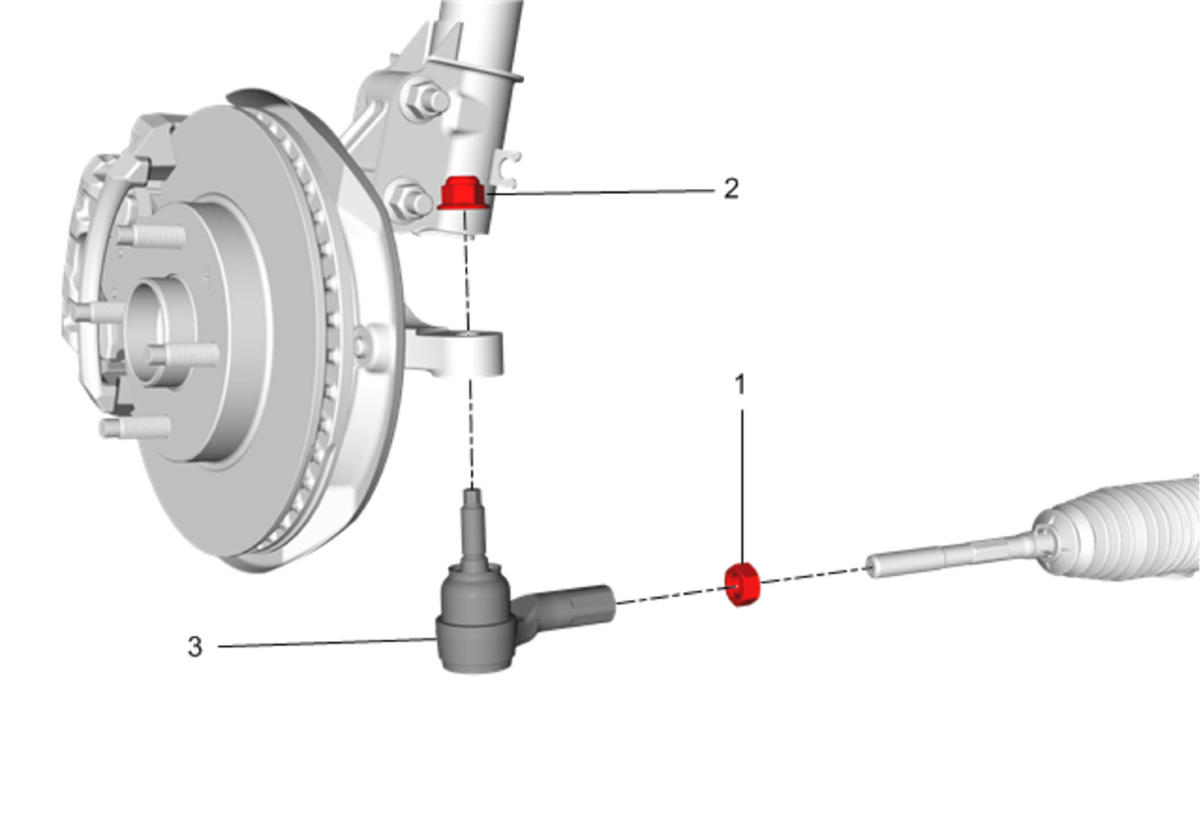

Steering Linkage Outer Tie Rod Replacement

Preliminary Procedures

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

1. First Pass: 30 N.m (22 lb ft)
2. Final Pass: Additional 120 - 130 degrees

Procedure

1. Use CH-24319-B  steering linkage and tie rod puller to separate the steering linkage outer tie rod from the steering knuckle.
2. Clean the tapered surface of the steering knuckle.
3. Inspect the steering linkage inner tie rod for bent or damaged threads. If necessary, replace the steering linkage inner tie rod. Refer to Steering Linkage Inner Tie Rod Replacement
4. Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
5. Calibrate the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering .
