Turn Signal Switch Bracket Replacement

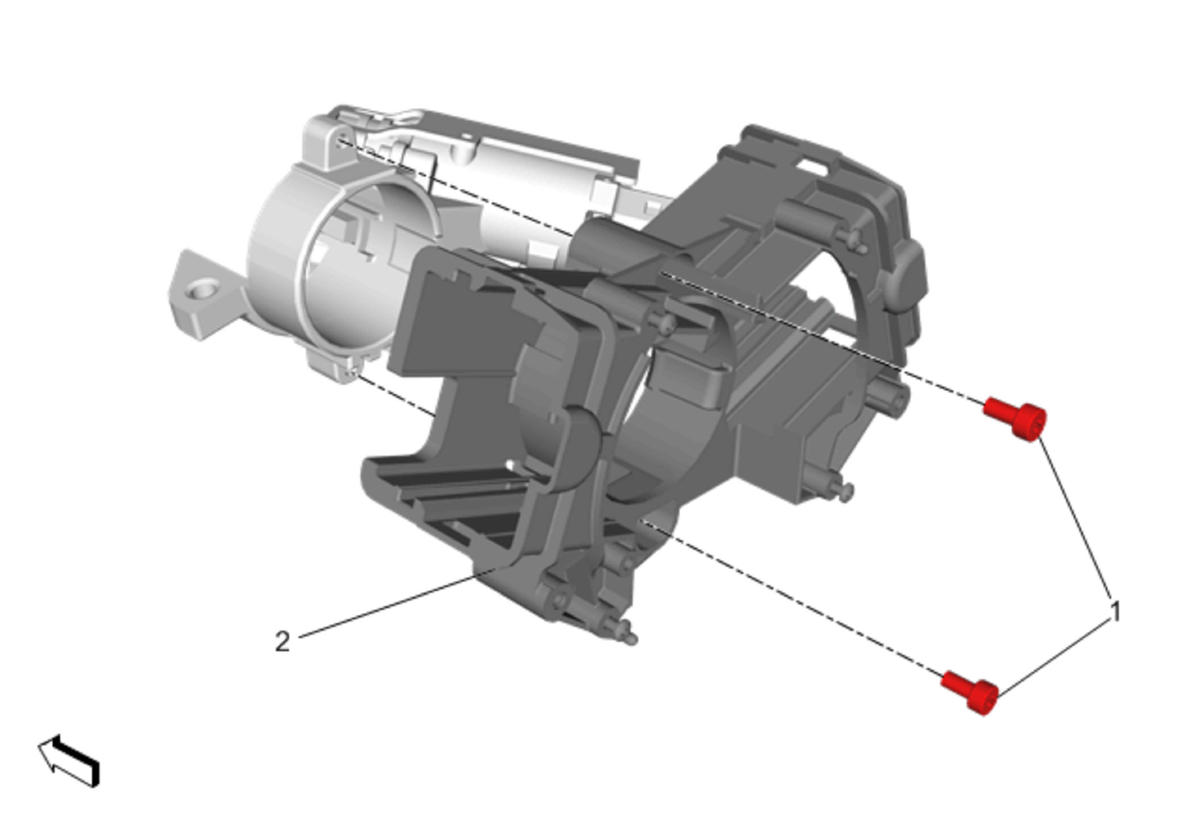

GM4093203Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the steering wheel airbag coil. Refer to Steering Wheel Airbag Coil Replacement .
  2. Remove the turn signal multifunction switch. Refer to Turn Signal Switch Replacement .
  3. Remove the windshield wiper and washer switch. Refer to Windshield Wiper and Washer Switch Replacement .
  4. If equipped, remove the theft deterrent module. Refer to Theft Deterrent Module Replacement .
  5. Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement .
1 Turn Signal Switch Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .

2 Turn Signal Switch Bracket
