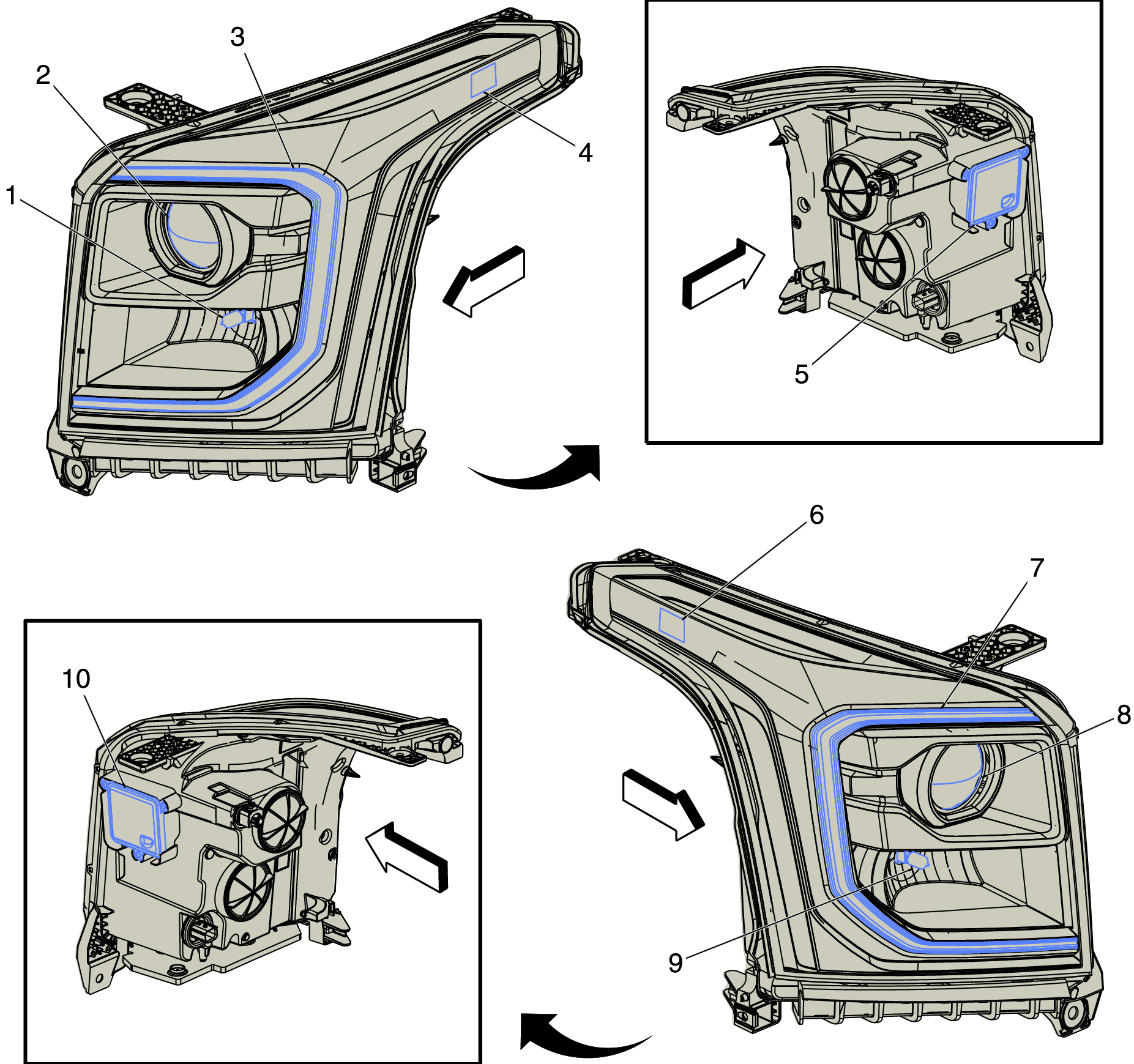

Headlamp Components (Z88)
Headlamp Components (Z88)
| Items |
|---|
| 1. E4E Headlamp - Left High Beam |
| 2. E4G Headlamp - Left Low Beam |
| 3. E4AC Park/Daytime Running Lamp - Left (X88 or Z88) |
| 4. E2LF Side Marker Lamp - Left Front |
| 5. T7L Headlamp Ballast - Left (T4F) |
| 6. E2LF Side Marker Lamp - Left Front |
| 7. E4AD Park/Daytime Running Lamp - Right (X88 or Z88) |
| 8. E4H Headlamp - Right Low Beam |
| 9. E4F Headlamp - Right High Beam |
| 10. T7R Headlamp Ballast - Right (T4F) |
