Installation Procedure

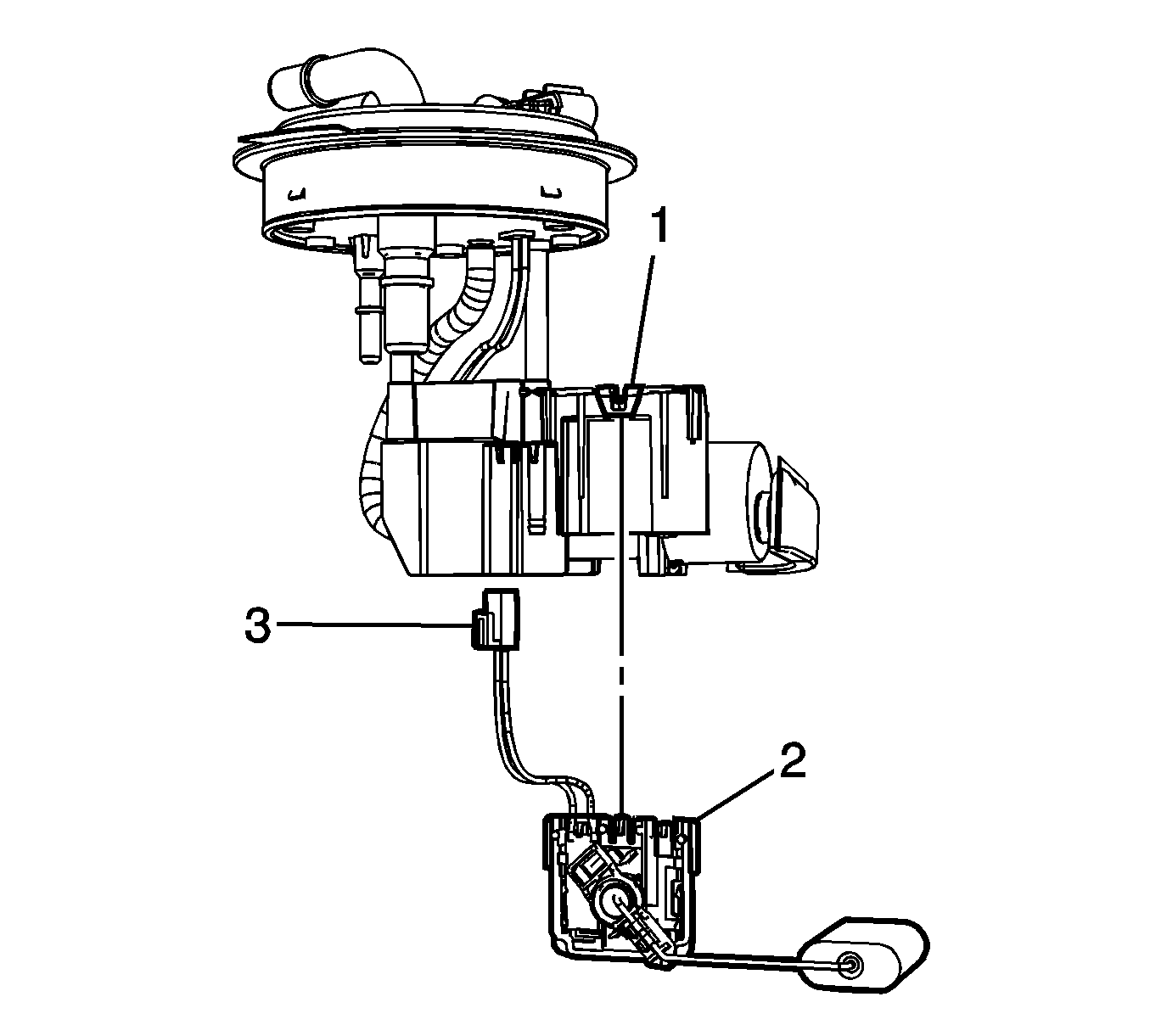

Fig 1: Fuel Level Sensor, Electrical Connector And Retaining Clip (Rear Tank)

GM1705922

Courtesy of GENERAL MOTORS COMPANY

Slide the fuel level sensor (2) up onto the bucket until the sensor engages the retaining tab (1).
Connect the fuel level sensor electrical connector (3) under the module cover.
Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (Rear Tank) .
