Front Seat Belt Latch Replacement

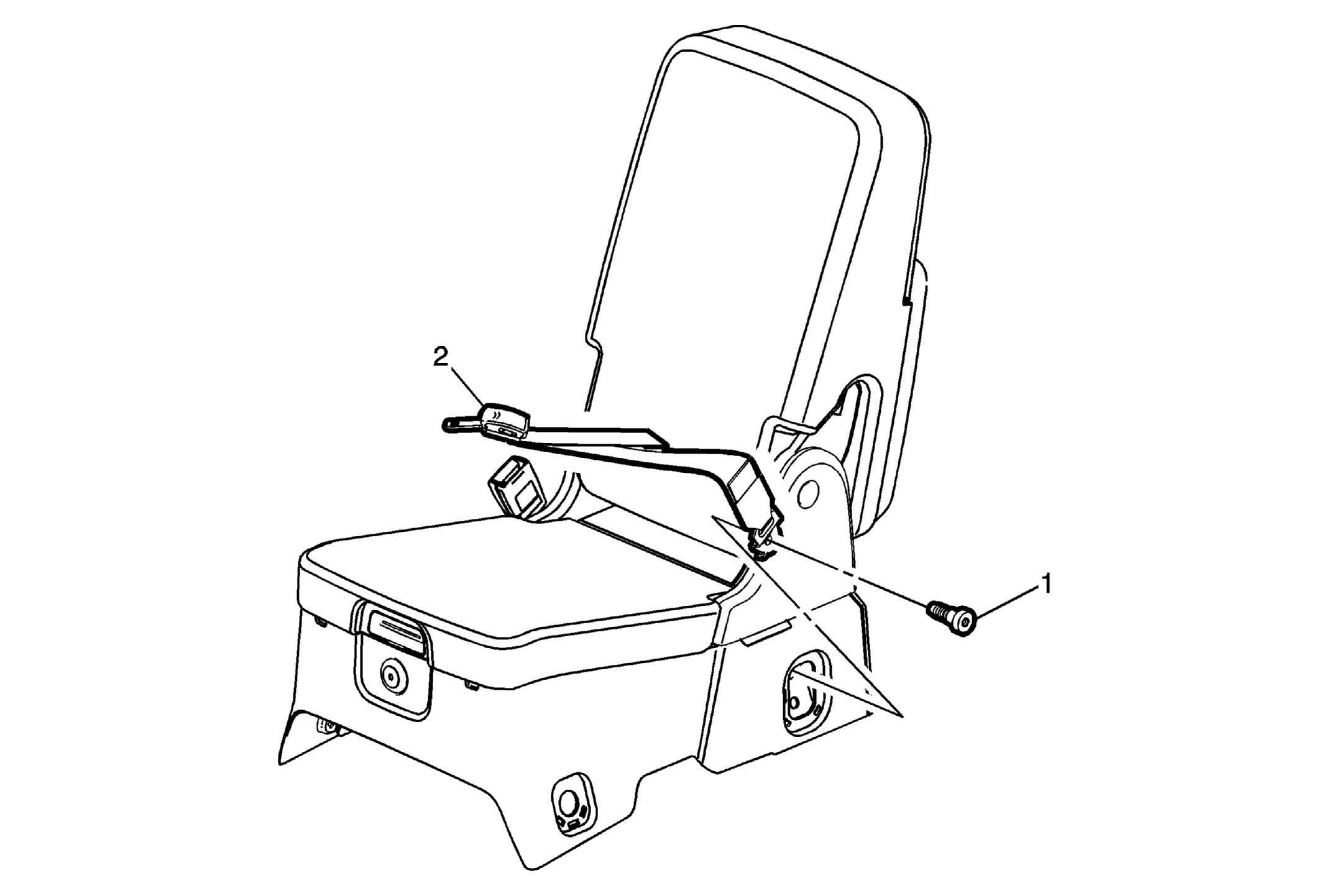

Fig 1: Front Seat Belt Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front center seat. Refer to Front Center Seat Removal and Installation .
1	Front Seat Belt Latch Bolt CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	Front Seat Belt Latch Procedure  Disconnect the electrical connector.
