Home › Chevrolet › 2018 › Traverse L › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

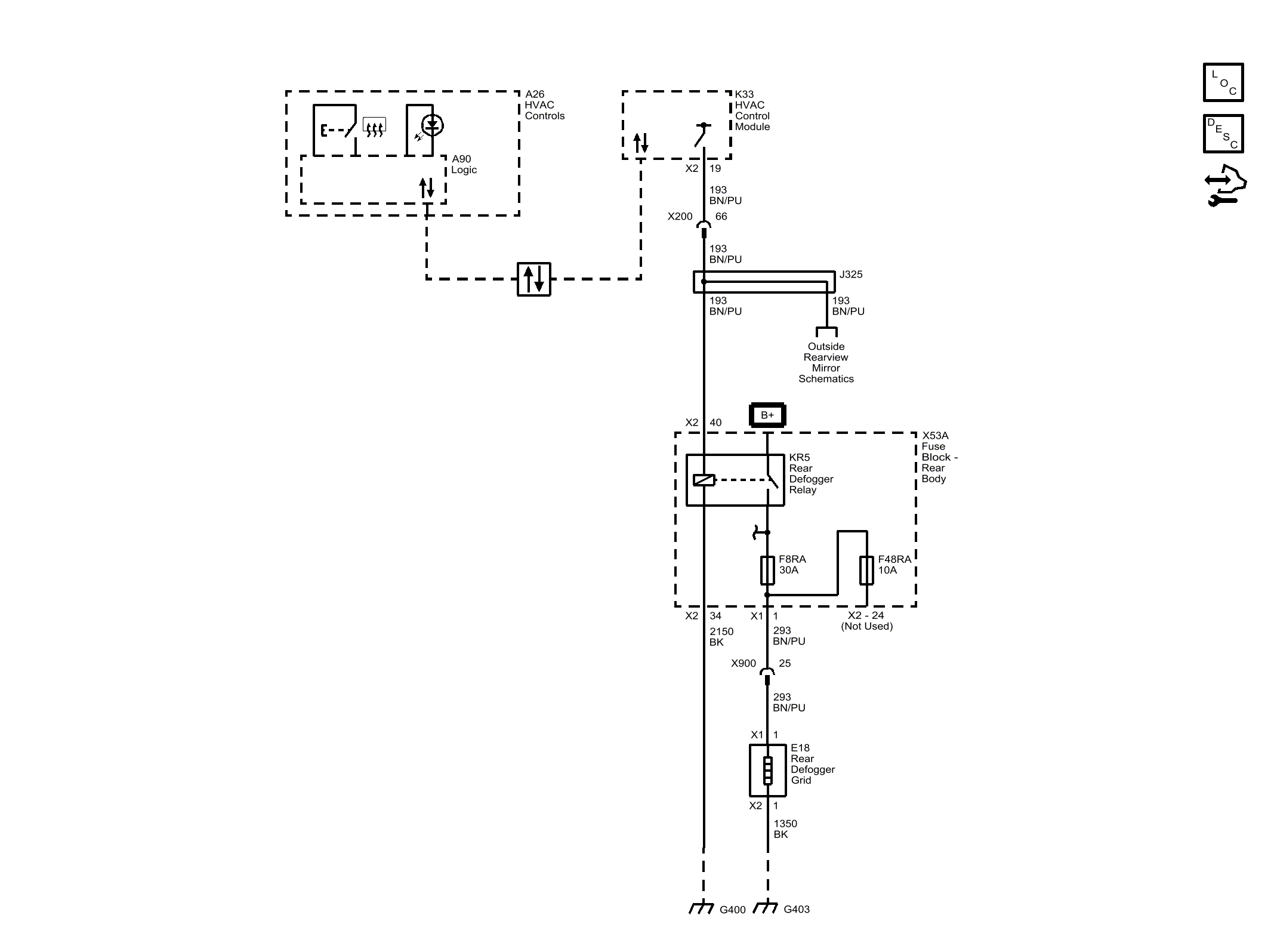

Defogger Wiring Schematics: Defogger

GM4745308Courtesy of GENERAL MOTORS COMPANY
