Exhaust Muffler Heat Shield Replacement

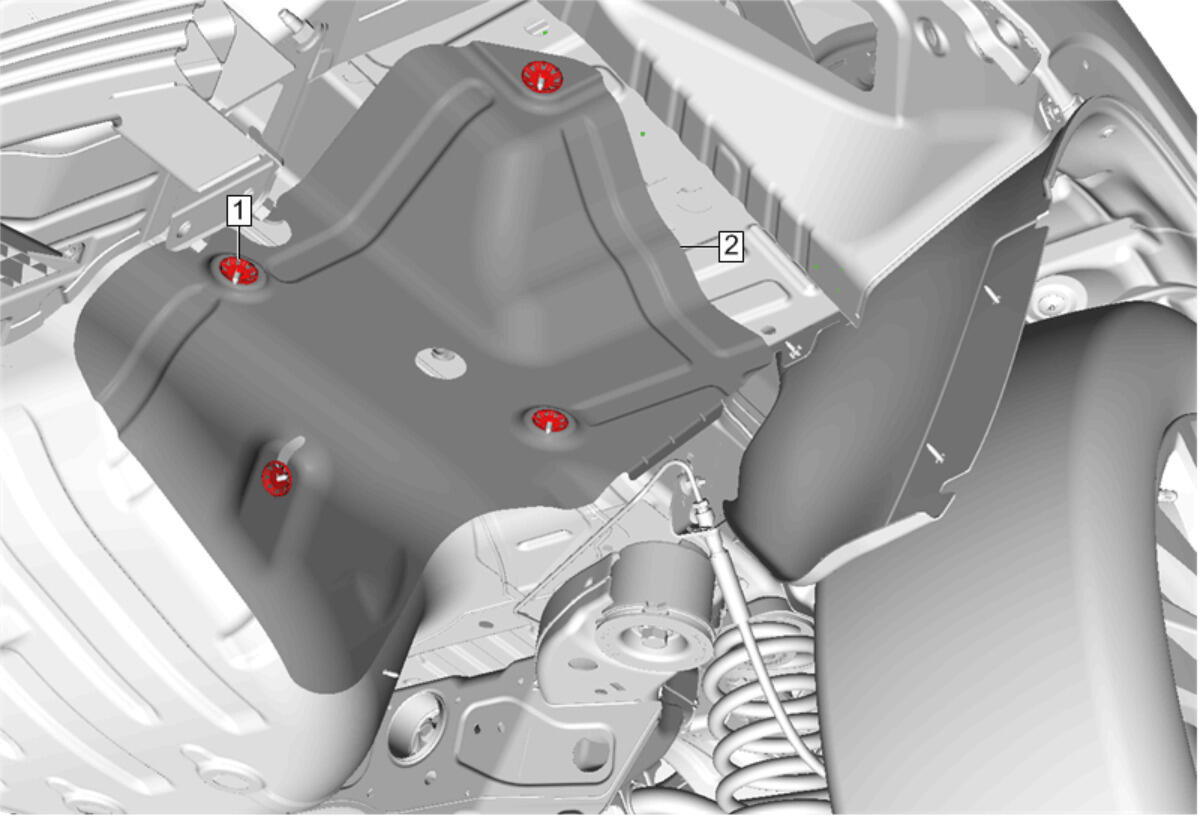

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Preliminary Procedure Exhaust Muffler Replacement (LTG) Exhaust Muffler Replacement (LFY) Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. |
|
| 1 | Exhaust Rear Muffler Heat Shield Retainer [4x]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Exhaust Rear Muffler Heat Shield |
