Installation Procedure

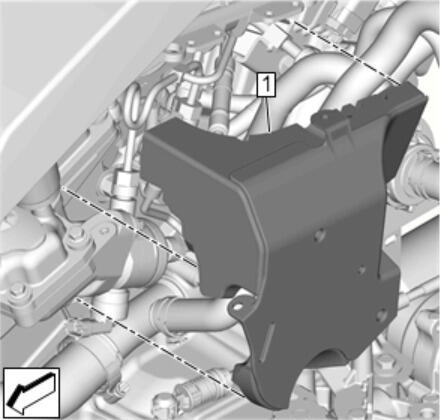

  1. GM4756830

    Install the engine rear noise shield (1).

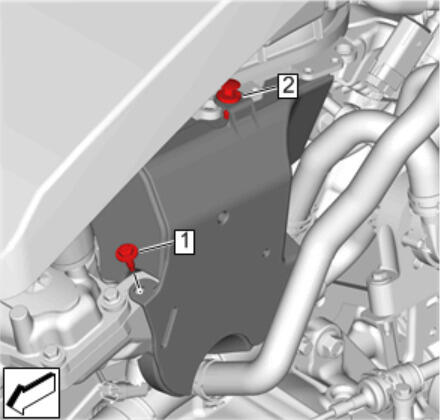

  2. GM4756827

    Install the engine rear noise shield retainer (2).

    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the engine rear noise shield bolt (1) and tighten to 9 N.m (80 lb in).

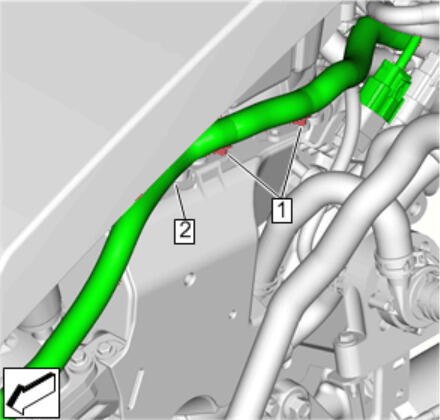

  4. GM4756825

    Position the engine wiring harness (2).

  5. Install the engine wiring harness retainers (1) to the intake manifold.
