Removal Procedure

  1. Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement

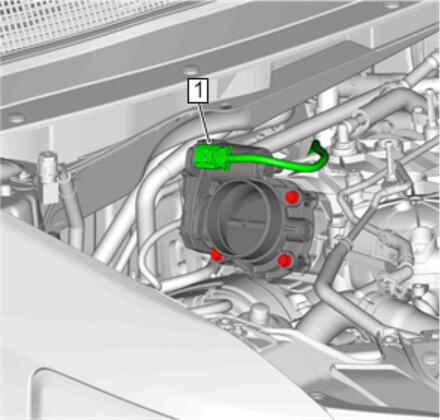

  2. GM4755452

    Disconnect the electrical connector (1).

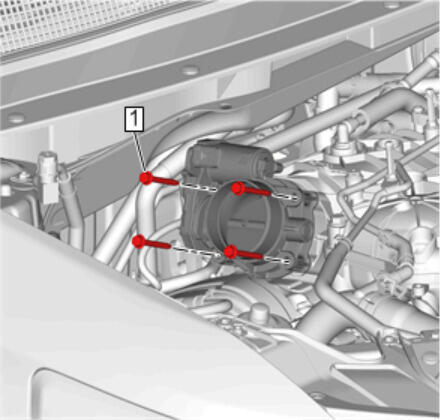

  3. GM4755457

    Remove the throttle body bolts (1).

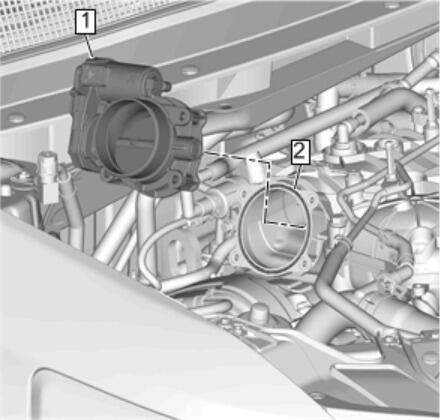

  4. GM4755472

    Remove the throttle body (1).

  5. Remove and DISCARD the throttle body gasket (2).
