Installation Procedure

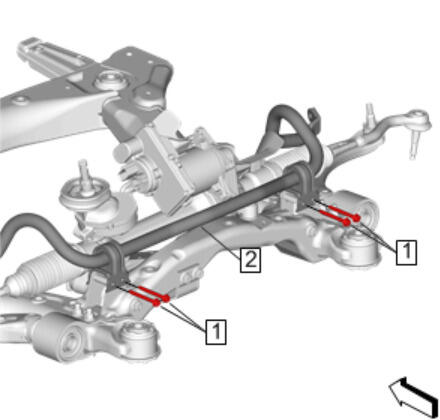

Position the front stabilizer shaft (2) on the drivetrain and front suspension cradle.
- Front Stabilizer Shaft Insulator Clamp Bolt (1) - Install and tighten [4x]
Install NEW bolts.
Tighten
- First Pass: 30 N.m (22 lb ft)
- Final Pass: (90 - 105 degrees)

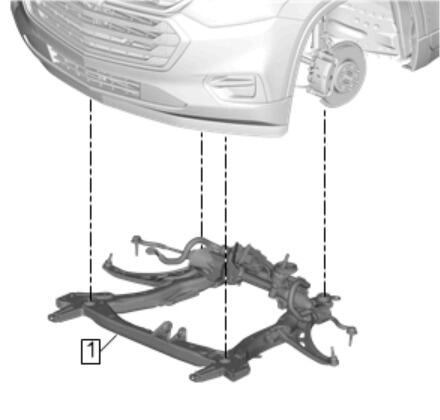

Drivetrain and Front Suspension Cradle (1) - Install - Drivetrain and Front Suspension Cradle Replacement (All Wheel Drive)Drivetrain and Front Suspension Cradle Replacement (Front Wheel Drive)
- Measure and adjust the wheel alignment. Wheel Alignment Measurement
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
