Installation Procedure

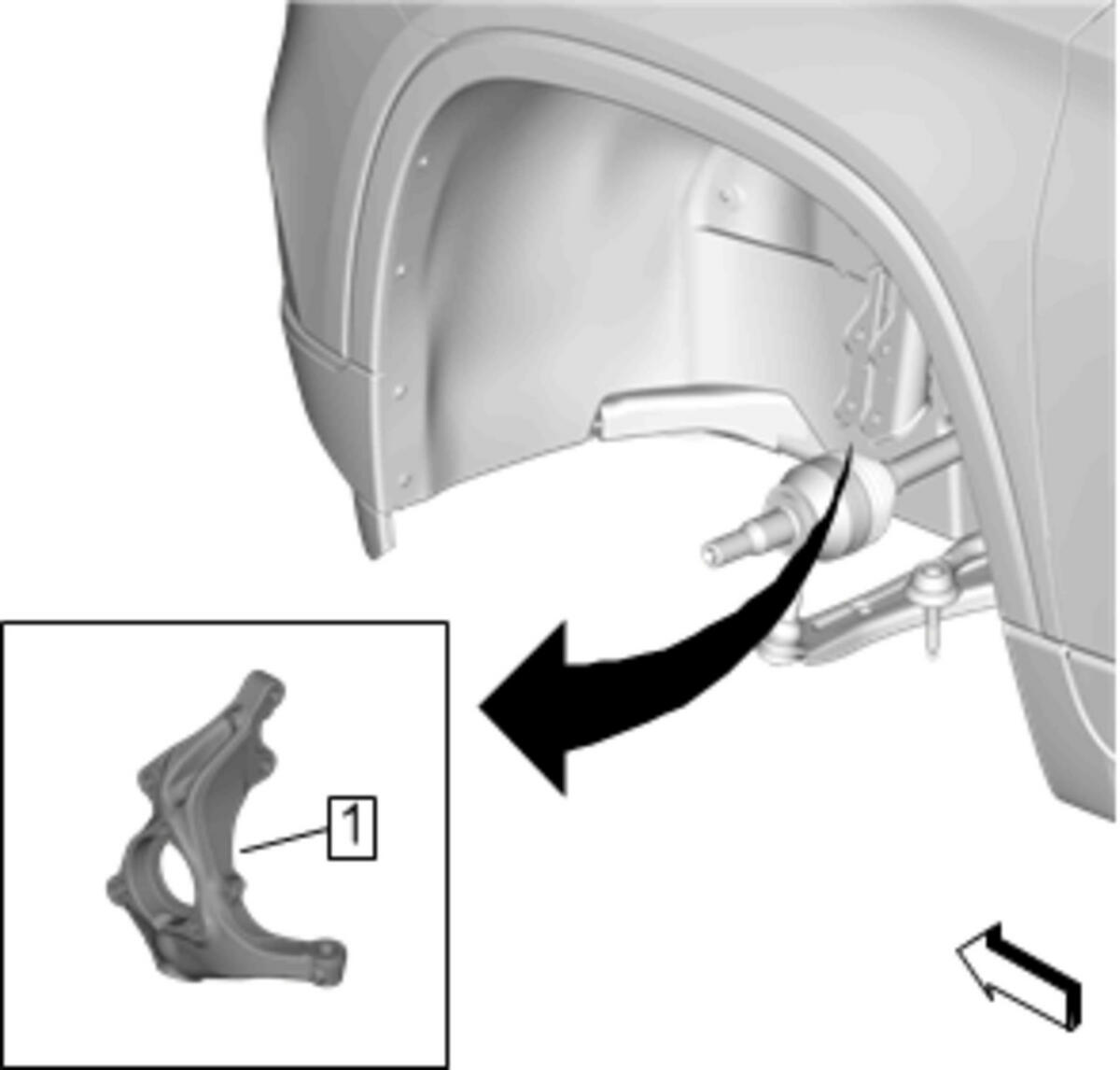

  1. GM4734938

    Position the steering knuckle (1) on the vehicle.

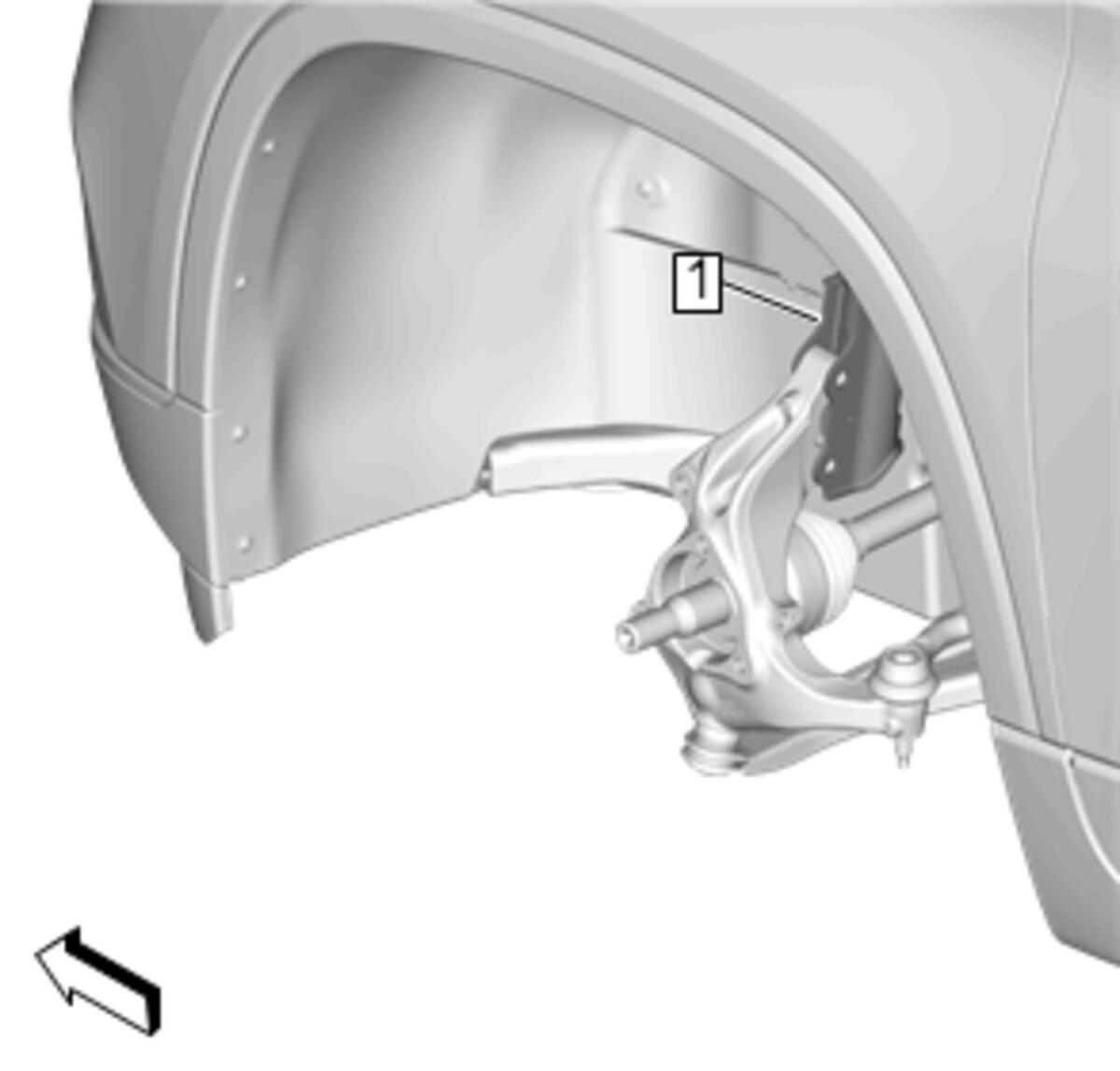

  2. GM4734933

    Strut Assembly (1) @ Steering Knuckle - Install - Strut Assembly Removal and Installation

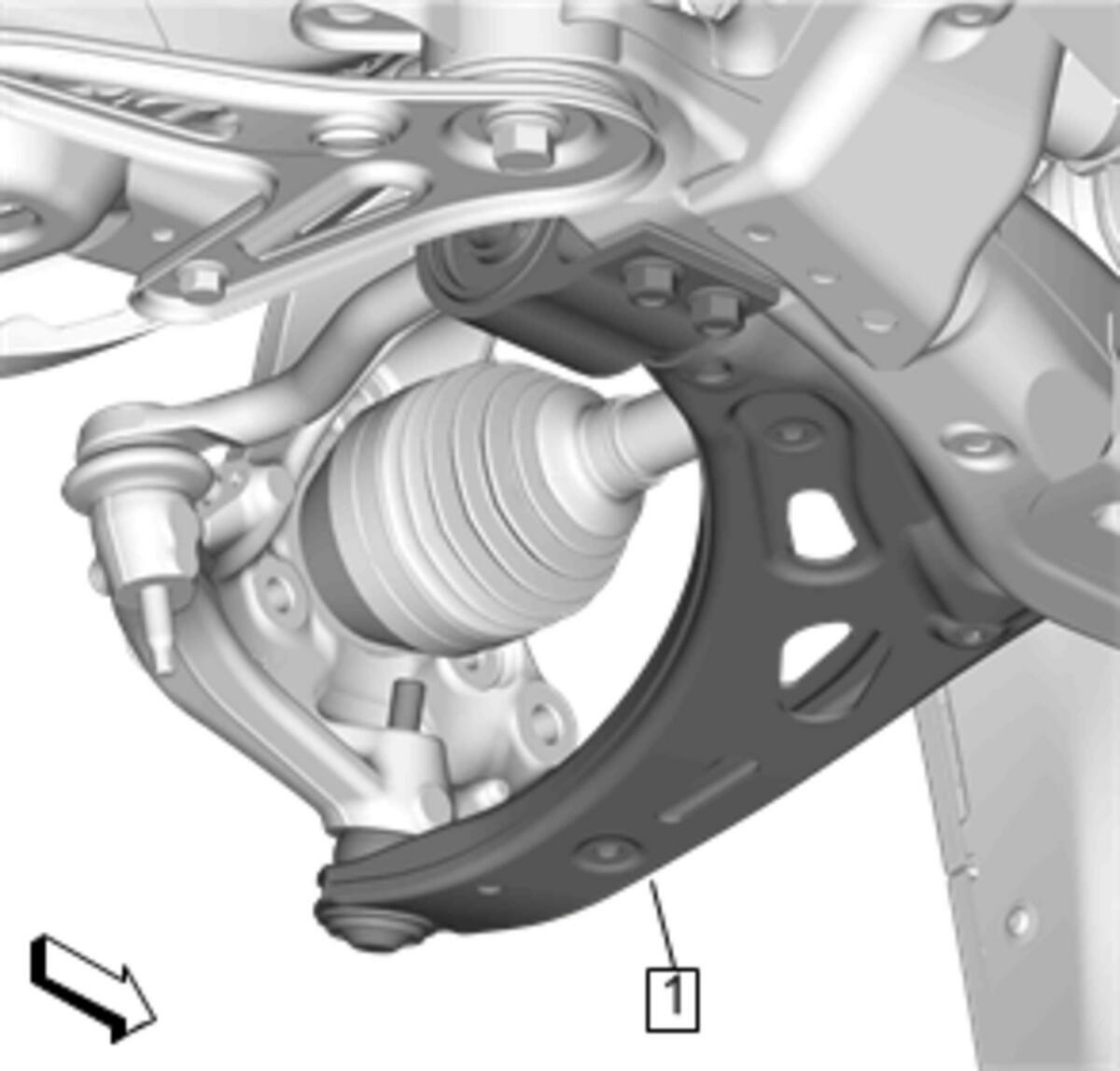

  3. GM4734931

    Front Lower Control Arm (1) @ Steering Knuckle - Install - Lower Control Arm Replacement

  4. GM4734929

    Steering Linkage Outer Tie Rod (1) @ Steering Knuckle - Install - Steering Linkage Outer Tie Rod Replacement

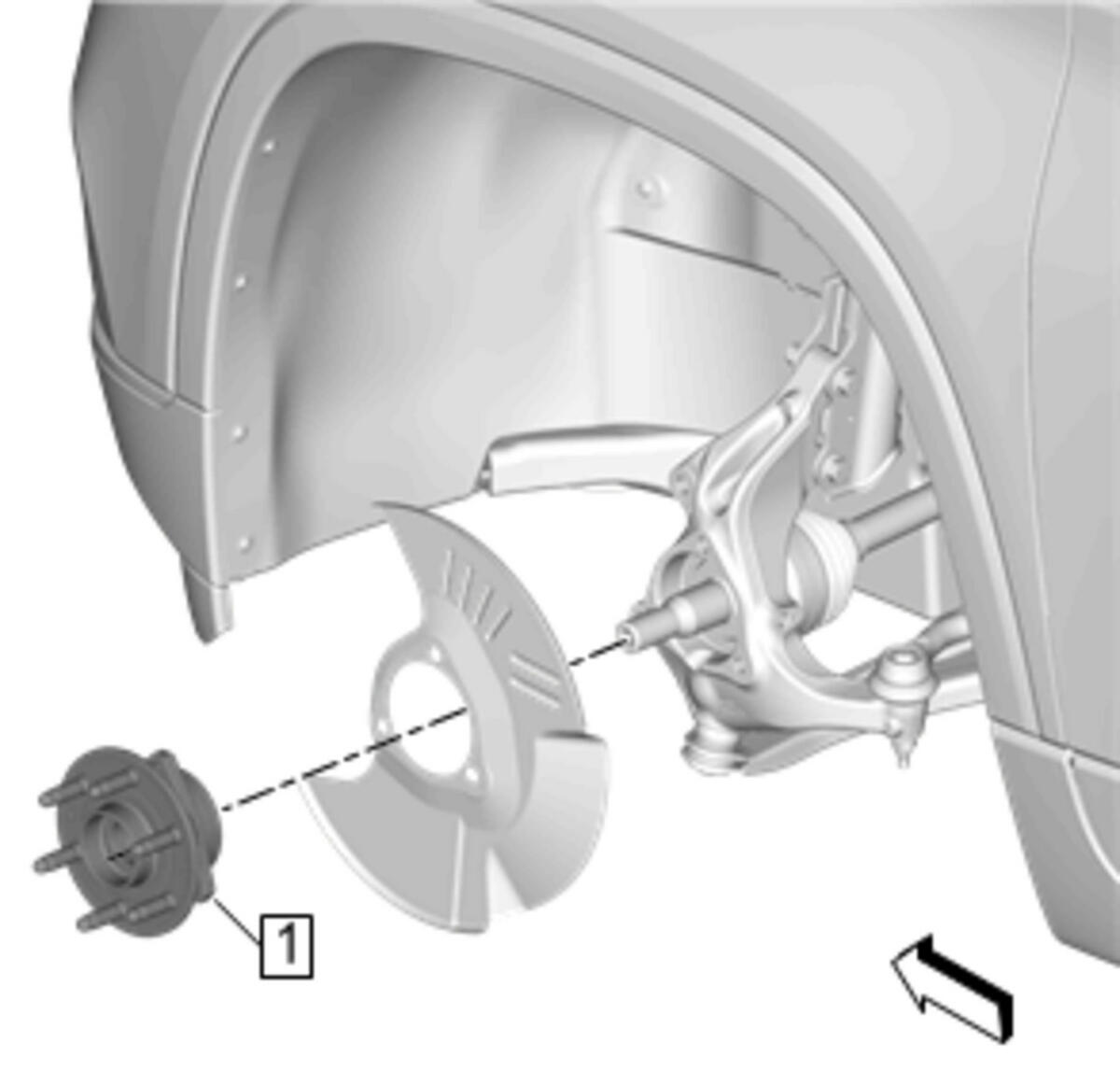

  5. GM4734927

    Front Wheel Bearing and Hub Assembly (1) - Install - Front Wheel Bearing and Hub Replacement

  6. Measure and adjust the wheel alignment. Wheel Alignment Measurement
