Front Floor Speaker Replacement

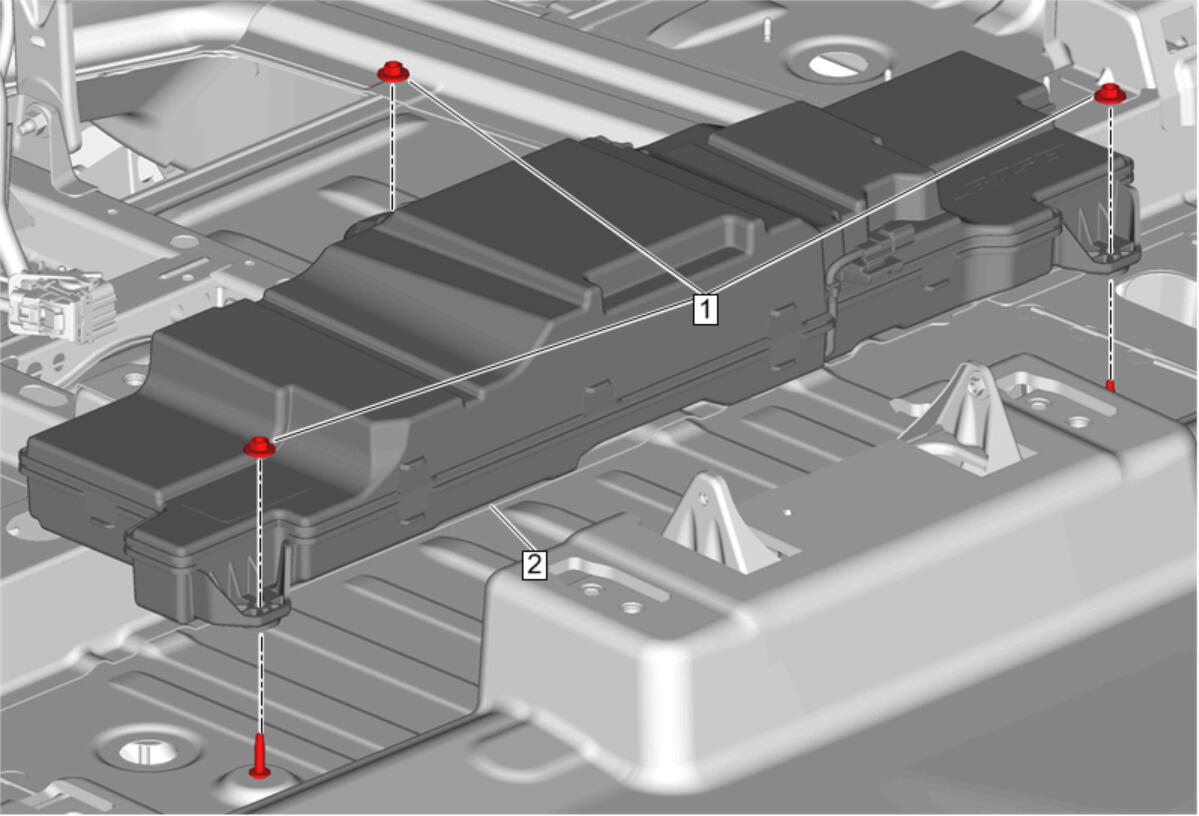

Callout	Component Name
Preliminary Procedures Floor Rear Air Outlet Duct Replacement - Left Side Floor Rear Air Outlet Duct Replacement - Right Side
1	Radio Front Floor Speaker Nut [3x] CAUTION: Fastener Caution Tighten 6 N.m (53 lb in)
2	Front Floor Speaker Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Radio Front Floor Speaker Nut [3x]

CAUTION:

Tighten
6 N.m (53 lb in)

Front Floor Speaker
Procedure
Disconnect the electrical connector.
