Installation Procedure

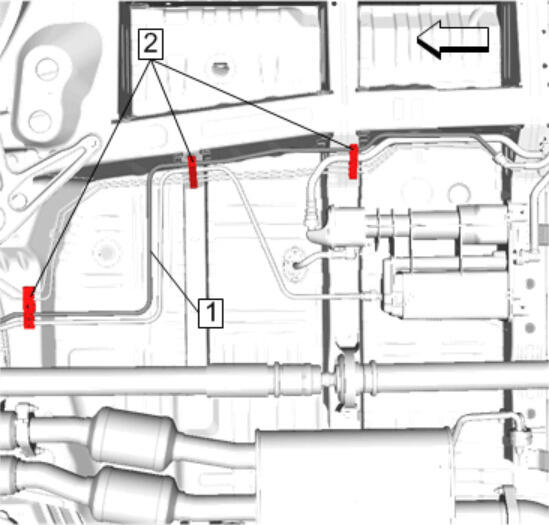

  1. GM4749751

    Fuel Feed Pipe (1) @ Retainer (2) - Install [3x]

  2. Fuel Feed Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
  3. Lower the vehicle.

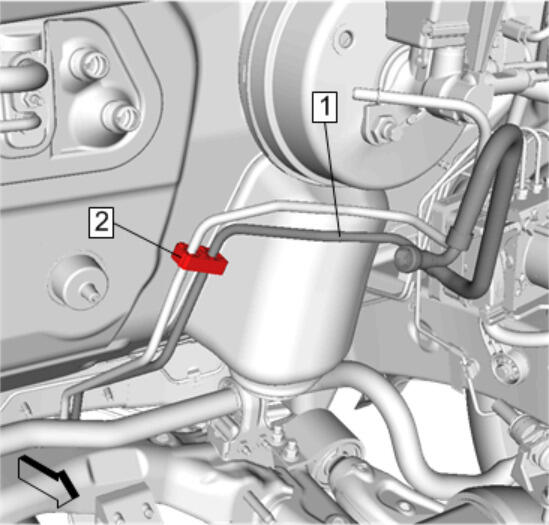

  4. GM4749744

    Fuel Feed Pipe (1) @ Retainer (2) - Install

  5. GM4749737

    Fuel Feed Pipe (1) - Connect - Metal Collar Quick Connect Fitting Service
