Fuel Pressure Sensor Replacement - Fuel Feed Pipe (AWD)

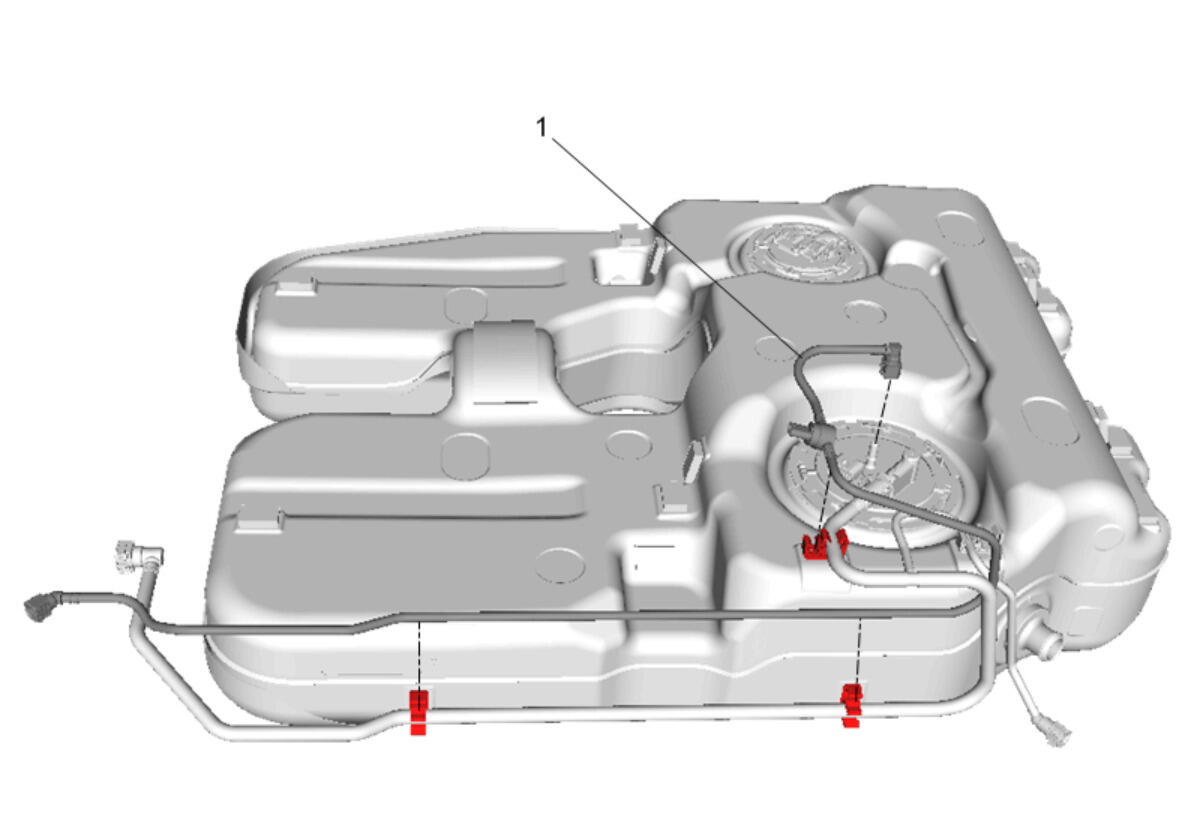

GM4293509

Callout

Component Name

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement (AWD)

1

Fuel Pressure Sensor

NOTE:

Fuel pressure sensor is serviced as part of fuel feed pipe assembly.

Procedure

Disconnect the electrical connector.
Disconnect the fuel feed pipe from the fuel tank fuel pump module and remove from retainers. Plastic Collar Quick Connect Fitting Service
