Rear Side Door Window Weatherstrip Replacement

Courtesy of GENERAL MOTORS COMPANY

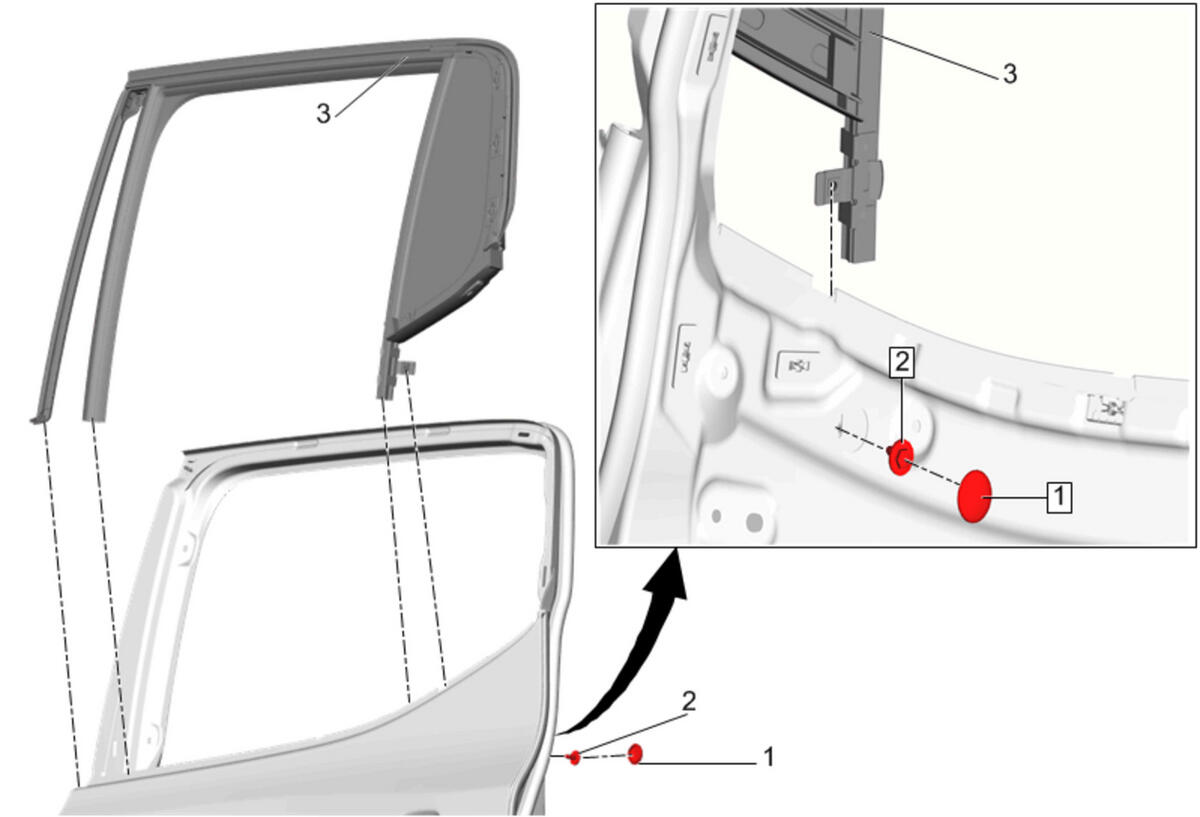

Callout	Component Name
Preliminary Procedures Rear Side Door Window Replacement Rear Side Door Window Frame Front Applique Replacement Rear Side Door Window Upper Reveal Molding Replacement
1	Door Plug
2	Rear Side Door Window Weatherstrip Fastener CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
3	Rear Side Door Window Weatherstrip
